3612C/

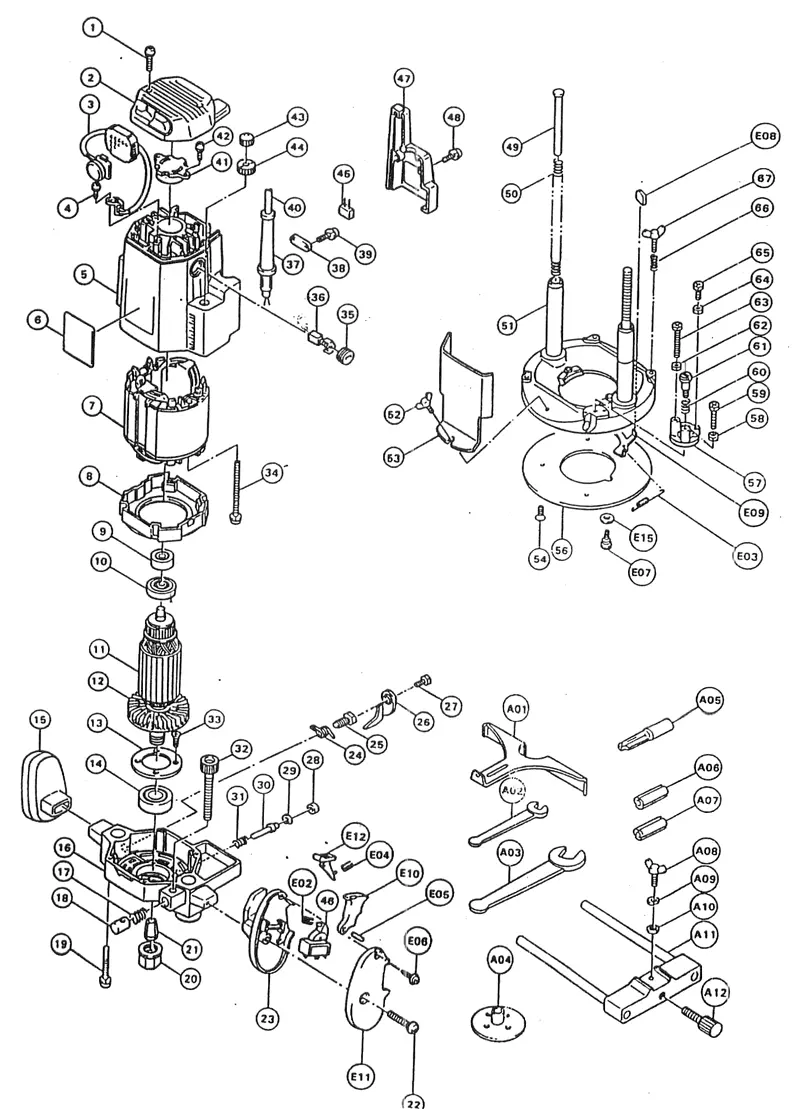

Деталировочная схема
Деталировочная схема
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
TAPPING SCREW 5X20 |
| 2 |  |
REAR COVER |
| 3 |  |
CONTROLLER 200/220/240V |
| 4 |  |
TAPPING SCREW 4X18 |
| 5 |  |
MOTOR HOUSING COMPLETE |
| 6 |  |
NAME PLATE 3612C |
| 7 |  |
FIELD 220V |
| 8 |  |
BAFFLE PLATE |
| 9 |  |
BALL BEARING 629DDW |
| 10 |  |
INSULATION WASHER |
| 11 |  |
ARMATURE ASS\\\'Y 220V INC. 9,10,12 |
| 12 |  |
FAN 74 |
| 13 |  |
BEARING RETAINER 50 |
| 14 |  |
BALL BEARING 6004DDW (new) |
| 14 |  |
BALL BEARING 6004DDW (old) |
| 15 |  |
KNOB (L) |
| 16 |  |
MOTOR BRACKET COMPLETE |
| 17 |  |
COMPRESSION SPRING 10 |
| 18 |  |
HALF NUT |
| 19 |  |
PAN HEAD SCREW M5X40 |
| 20 |  |
COLLET NUT |
| 21 |  |
COLLET CONE 12MM |
| 22 |  |
PAN HEAD SCREW M6X45 |
| 23 |  |
KNOB (R) |
| 24 |  |
TORSION SPRING 15 |
| 25 |  |
SET BOLT M10 |
| 26 |  |
LOCK LEVER |
| 27 |  |
HEX. BOLT M5X12 |
| 28 |  |
CAP 11 |
| 29 |  |
RETAINING RING R-12 |
| 30 |  |
PIN 6 |
| 31 |  |
COMPRESSION SPRING 7 |
| 32 |  |
SCREW M10X77 |
| 33 |  |
+ COUNTERSUNK HEAD SCREW M4X14 |
| 34 |  |
PAN HEAD SCREW M5X80 |
| 35 |  |
BRUSH HOLDER CAP 7-18 |
| 36 |  |
CARBON BRUSH CB-203 |
| 37 |  |
CORD GUARD 9.3-90 (new) |
| 37 |  |
CORD GUARD 8-90 (old) |
| 38 |  |
STRAIN RELIEF |
| 39 |  |
TAPPING SCREW 4X18 |
| 40 |  |
POWER SUPPLY CORD 1.0-2-2.5 (new) |
| 40 |  |
POWER SUPPLY CORD 1.5-2-2.5 (old) |
| 41 |  |
BEARING BOX |
| 42 |  |
TAPPING SCREW 4X18 |
| 43 |  |
NUT M10 |
| 44 |  |
NYLON NUT M10 |
| 45 |  |
NOISE SUPPRESSOR |
| 45 |  |
NOISE SUPPRESSOR |
| 46 |  |
SWITCH (new) |
| 46 |  |
SWITCH ALD164 (old) |
| 47 |  |
COVER |
| 48 |  |
TAPPING SCREW 4X18 |
| 49 |  |
POLE |
| 50 |  |
COMPRESSION SPRING 11 |
| 51 | BASE COMPLETE | |
| 52 | WING BOLT M5X10 | |
| 53 | CHIP DEFLECTOR | |
| 54 | COUNTERSUNK HEAD SCREW M4X10 | |
| 55 | PAN HEAD SCREW M5X10 | |
| 56 | BASE PLATE | |
| 56 | BASE PLATE | |
| 57 | STOPPER ASS\\\'Y INC. 58,59,62-65 | |
| 58 | HEX. NUT M5 | |
| 59 | + HEX. BOLT M5X28 | |
| 60 | COMPRESSION SPRING 12 | |
| 61 | - FLAT HEAD SCREW M6 | |
| 62 | HEX. NUT M5 | |
| 63 | + HEX. BOLT M5X40 | |
| 64 | HEX. NUT M5 | |
| 65 | + HEX. BOLT M5X16 | |
| 66 | COMPRESSION SPRING 7 | |
| 67 | WING BOLT M5X15 | |
| 68 | INDICATION LABEL (new) | |
| 68 | INDICATION LABEL (old) | |
| A01 | STRAIGHT GUIDE | |
| A02 | WRENCH 8 | |
| A03 | WRENCH 24 | |
| A06 | COLLET SLEEVE FOR 8 MM BIT | |
| A07 | COLLET SLEEVE FOR 6 MM BIT | |
| A08 | WING BOLT M6X12 | |
| A09 | SPRING WASHER 6 | |
| A10 | FLAT WASHER 6 | |
| A11 | GUIDE HOLDER ASS\\\'Y INC. A08-A10,A12 | |
| A12 | SCREW M10X34 | |
| E01 | DUST NOZZLE | |
| E02 | COMPRESSION SPRING 5 | |
| E03 | TENSION SPRING 5 | |
| E04 | COMPRESSION SPRING 4 | |
| E05 | PIN 3 | |
| E06 | TAPPING SCREW 4X18 | |
| E07 | SET BOLT M5X10 | |
| E08 | CAP 14 | |
| E09 | LOCK PLATE | |
| E10 | SWITCH LEVER | |
| E11 | KNOB COVER | |
| E12 | LOCK OFF BUTTON | |
| E15 | FLAT WASHER 5 |
