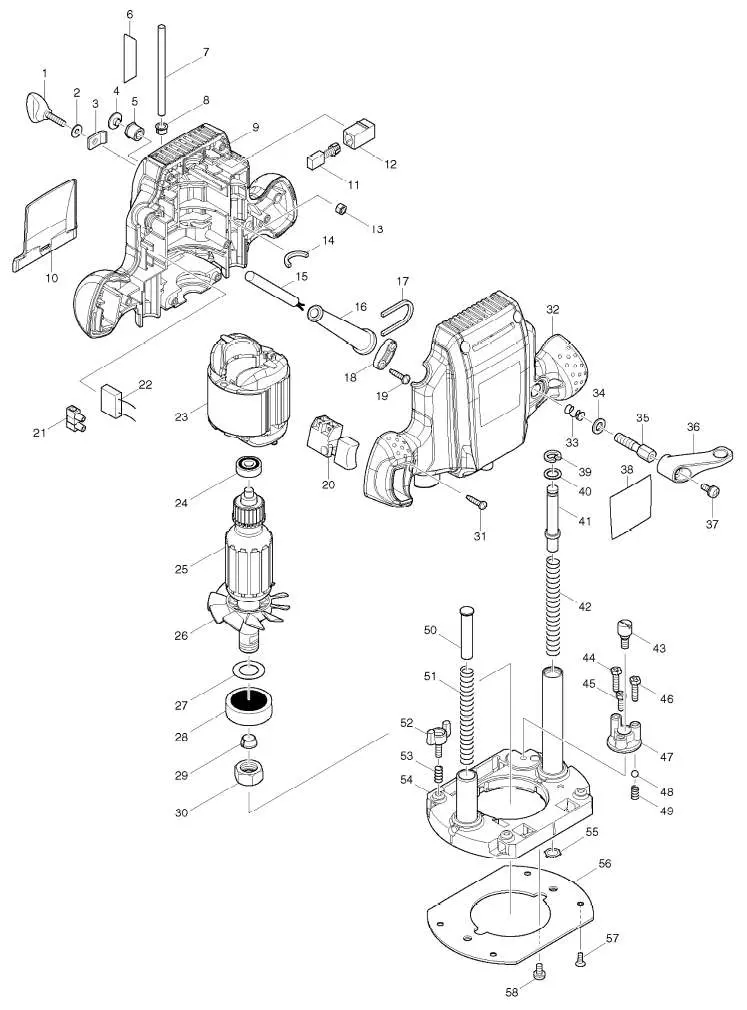

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | SCREW M5X20 | |
| 2 | FLAT WASHER 5 | |
| 3 | PRESSURE PLATE | |
| 4 | RUBBER CAP | |
| 5 | HEX. NUT M8 | |
| 6 | SCALE LABEL | |
| 7 | STOPPER POLE | |
| 8 | DEPTH POINTER | |
| 9 | HOUSING SET INC. 13,32 | |
| 10 | CHIP DEFLECTOR | |
| 11 | CARBON BRUSH CB-106 | |
| 12 | BRUSH HOLDER 6-10 | |
| 13 | HEX. NUT M5 | |
| 14 | FELT | |
| 15 | POWER SUPPLY CORD 1.0-2-2.5 | |
| 16 | CORD GUARD 10-85 | |
| 17 | FELT | |
| 18 | STRAIN RELIEF | |
| 19 | TAPPING SCREW 4X18 | |
| 20 | SWITCH SGE115CDY-5 | |
| 21 | TERMINAL BLOCK 1P | |
| 22 | NOISE SUPPRESSOR | |
| 23 | FIELD ASS\\\\\'Y 240V | |
| 24 | BALL BEARING 608DDW | |
| 25 | ARMATURE ASS\\\\\'Y 240V INC. 24,26-28 | |
| 26 | FAN 72 | |
| 27 | FLAT WASHER 17 | |
| 28 | BALL BEARING 6203DDW | |
| 29 | COLLET CONE 8MM | |
| 30 | COLLET NUT | |
| 31 | TAPPING SCREW 4X18 | |
| 32 | HOUSING SET INC. 9,13 | |
| 33 | COMPRESSION SPRING 8 | |
| 34 | FLAT WASHER 8 | |
| 35 | SET BOLT M8 | |
| 36 | LEVER 47 | |
| 37 | PAN HEAD SCREW M5X12 | |
| 38 | RP0900 NAME PLATE | |
| 39 | RETAINING RING R-15 | |
| 40 | FLAT WASHER 10 | |
| 41 | PIN 10 | |
| 42 |  |
COMPRESSION SPRING 10 |
| 43 |  |
- FLAT HEAD SCREW M6 |
| 44 |  |
+HEX. BOLT M5X20 |
| 45 |  |
+HEX. BOLT M5X14 |
| 46 |  |
+HEX. BOLT M5X20 |
| 47 |  |
STOPPER ASS\\\\\'Y INC. 43-46 |
| 48 |  |
STEEL BALL 7.0 |
| 49 |  |
COMPRESSION SPRING 5 |
| 50 |  |
PIN 10 |
| 51 |  |
COMPRESSION SPRING 10 |
| 52 |  |
THUMB SCREW M5X16 |
| 53 |  |
COMPRESSION SPRING 7 |
| 54 |  |
BASE COMPLETE |
| 55 |  |
SELF LOCK 15 |
| 56 |  |
BASE PLATE |
| 57 |  |
COUNTERSUNK HEAD SCREW M4X10 |
| 58 |  |
PAN HEAD SCREW M5X10 |
| A01 |  |
STRAIGHT GUIDE |
| A02 |  |
WRENCH 13 |
| A03 |  |
WRENCH 22 |
| A04 |  |
COLLET CONE 6MM |
| A05 |  |
DUST NOZZLE SET |
