RP 1110 C/

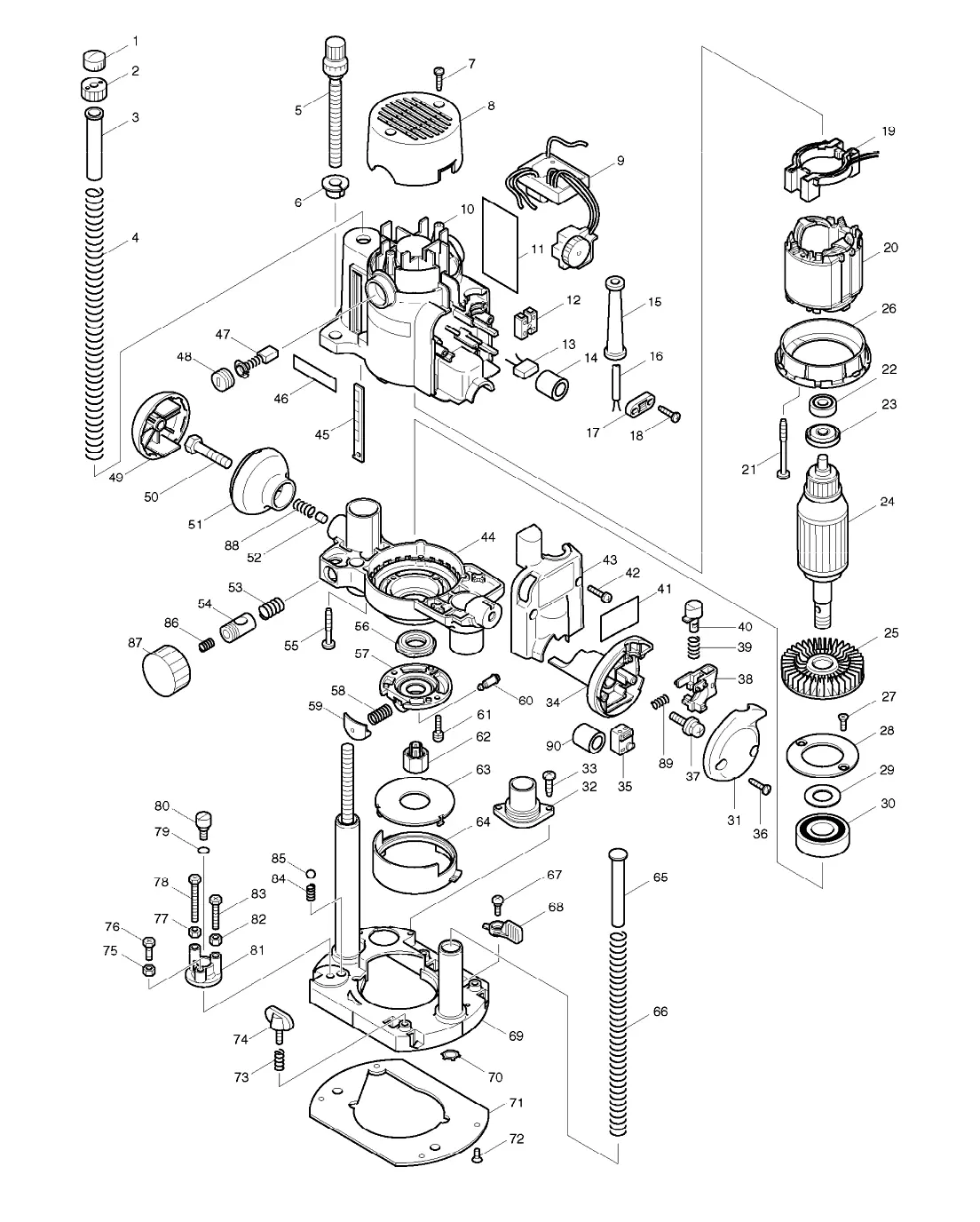

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
WING NUT M10 |
| 2 |  |
NYLON NUT M10 |
| 3 |  |
SILENT POLE |
| 4 |  |
COMPRESSION SPRING 13 |
| 5 |  |
THUMB SCREW M10X90 |
| 6 |  |
DEPTH POINTER |
| 7 |  |
TAPPING SCREW 4X18 |
| 8 |  |
REAR COVER |
| 9 |  |
CONTROLLER |
| 10 |  |
MOTOR HOUSING COMPLETE |
| 11 |  |
NAME PLATE RP1110C |
| 12 |  |
TERMINAL BLOCK 2P |
| 13 |  |
NOISE SUPPRESSOR |
| 14 |  |
SPONGE |
| 15 |  |
CORD GUARD 10 |
| 16 |  |
POWER SUPPLY CORD 1.0-2-4.0 |
| 17 |  |
STRAIN RELIEF |
| 18 |  |
TAPPING SCREW 4X18 |
| 19 |  |
SUPPORT COMPLETE |
| 20 |  |
FIELD 220-240V |
| 21 |  |
TAPPING SCREW 5X55 |
| 22 |  |
BALL BEARING 608DDW |
| 23 |  |
INSULATION WASHER |
| 24 |  |
ARMATURE ASS\\\\\'Y 220-240V INC. 22,23,25 |
| 25 |  |
FAN 70 |
| 26 |  |
BAFFLE PLATE |
| 27 |  |
+ COUNTERSUNK HEAD SCREW M4X14 |
| 28 |  |
BEARING RETAINER 50 |
| 29 |  |
FLAT WASHER 17 |
| 30 |  |
BALL BEARING 6203DDW фото1 фото2 |
| 31 |  |
KNOB COVER R |
| 32 |  |
NOZZLE JOINT |
| 33 |  |
TAPPING SCREW CT 4X16 |
| 34 |  |
KNOB R |
| 35 |  |
SWITCH SP115C |
| 36 |  |
TAPPING SCREW 4X18 |
| 37 | PAN HEAD SCREW M6X20 | |
| 38 | TRIGGER | |
| 39 | COMPRESSION SPRING 8 | |
| 40 | LOCK-OFF BUTTON | |
| 41 | INDICATION LABEL | |
| 42 | PAN HEAD SCREW M4X18 | |
| 43 | COVER | |
| 44 | MOTOR BRACKET COMPLETE | |
| 45 | SCALE PLATE | |
| 46 | MAKITA LABEL | |
| 47 | CARBON BRUSH CB-303 | |
| 48 | BRUSH HOLDER CAP | |
| 49 | KNOB COVER | |
| 50 | HEX. BOLT M8X35 | |
| 51 | KNOB | |
| 52 | LOCK PIN | |
| 53 | COMPRESSION SPRING 12 | |
| 54 | HALF NUT COMPLETE | |
| 55 | TAPPING SCREW 5X35 | |
| 56 | RETAINER | |
| 57 | RETAINER COVER | |
| 58 | COMPRESSION SPRING 8 | |
| 59 | PUSH BUTTON | |
| 60 | PIN 4 | |
| 61 | PAN HEAD SCREW M4X18 | |
| 62 | COLLET CONE 8 ASS\\\\\'Y | |
| 63 | DUST GUIDE CAP | |
| 64 | DUST GUIDE | |
| 65 | POLE | |
| 66 | COMPRESSION SPRING 11 | |
| 67 | + PAN HEAD SCREW M4X11 | |
| 68 | LOCK LEVER | |
| 69 | BASE COMPLETE | |
| 70 | SELF LOCK 16 | |
| 71 | BASE PLATE | |
| 72 | COUNTERSUNK HEAD SCREW M4X10 | |
| 73 | COMPRESSION SPRING 7 | |
| 74 | THUMB SCREW M5X14 | |
| 75 | HEX. NUT M5 | |
| 76 | + HEX. BOLT M5X16 | |
| 77 | HEX. NUT M5 | |
| 78 | + HEX. BOLT M5X40 | |
| 79 | O RING 8 | |
| 80 | - FLAT HEAD SCREW M6 | |
| 81 | STOPPER | |
| 82 | HEX. NUT M5 | |
| 83 | + HEX. BOLT M5X28 | |
| 84 | COMPRESSION SPRING 5 | |
| 85 | STEEL BALL 7.1 | |
| 88 | COMPRESSION SPRING 8 | |
| 89 | COMPRESSION SPRING 7 | |
| 90 | SPONGE | |
| A01 | NOZZLE ASS\\\\\'Y | |
| A02 | STRAIGHT GUIDE | |
| A03 | DUST NOZZLE ASS\\\\\'Y | |
| A04 | TEMPLET GUIDE 12 | |
| A05 | WRENCH 17 | |
| A06 | WRENCH 8 | |
| A07 | BINDING HEAD SCREW M4X10 |
