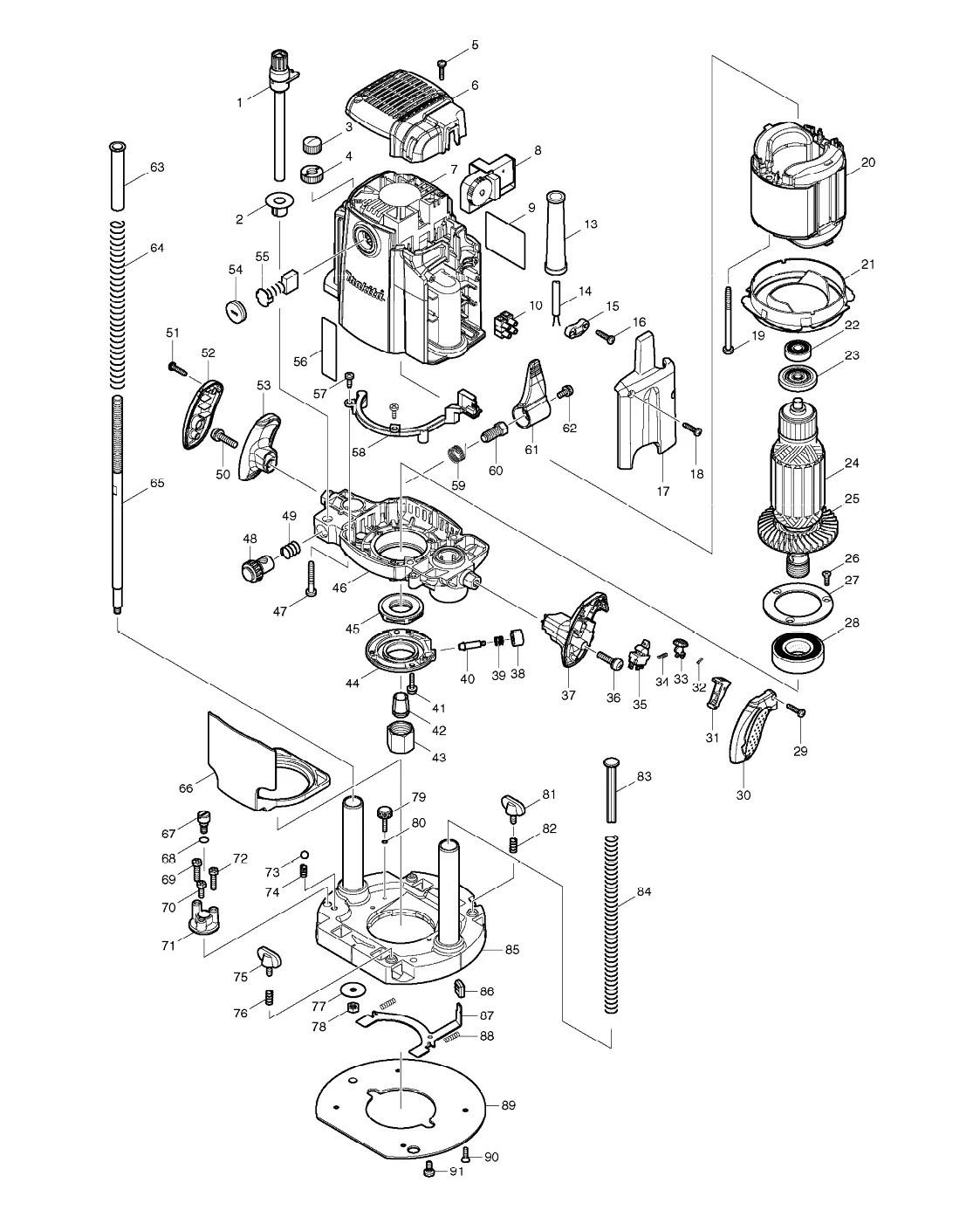

Деталировочная схема
Деталировочная схема
| П-п | Арт | Название |
|---|---|---|
| 1 | THUMB SCREW M10X115 ASS\\\'Y | |
| 2 | DEPTH POINTER | |
| 3 | WING NUT M10 | |
| 4 | NYLON NUT M10 | |
| 5 | TAPPING SCREW 4X18 | |
| 6 | REAR COVER | |
| 7 | MOTOR HOUSING COMPLETE | |
| 8 | CONTROLLER | |
| 9 |  |
RP2301FC NAME PLATE |
| 10 |  |
TERMINAL BLOCK 2P |
| 13 |  |
CORD GUARD 10-90 |
| 14 |  |
POWER SUPPLY CORD 1.5-2-4.0 |
| 15 |  |
STRAIN RELIEF |
| 16 |  |
TAPPING SCREW 4X18 |
| 17 |  |
COVER |
| 18 |  |
TAPPING SCREW 4X18 |
| 19 |  |
TAPPING SCREW 5X75 |
| 20 |  |
FIELD 220V |
| 21 |  |
BUFFLE PLATE |
| 22 |  |
BALL BEARING 629DDW |
| 23 |  |
INSULATION WASHER |
| 24 |  |
ARMATURE ASS\\\'Y 220V INC. 22,23,25 |
| 25 |  |
FAN 80 |
| 26 |  |
#ИМЯ? |
| 27 |  |
BEARING RETAINER 60 |
| 28 |  |
BALL BEARING 6205DDW |
| 29 |  |
TAPPING SCREW 4X18 |
| 30 |  |
GRIP COVER R |
| 31 |  |
SWITCH LEVER |
| 32 |  |
COMPRESSION SPRING 4 |
| 33 |  |
LOCK OFF BUTTON |
| 34 |  |
COMPRESSION SPRING 5 |
| 35 |  |
SWITCH |
| 36 |  |
PAN HEAD SCREW M6X25 |
| 37 |  |
GRIP R |
| 38 |  |
PUSH BUTTON |
| 39 |  |
COMPRESSION SPRING 8 |
| 40 |  |
COLLARED PIN 6 |
| 41 |  |
PAN HEAD SCREW M4X18 |
| 42 |  |
COLLET CONE 12MM |
| 43 |  |
COLLET NUT |
| 44 |  |
RETAINER COVER |
| 45 |  |
RETAINER |
| 46 |  |
MOTOR BRACKET COMPLETE |
| 47 |  |
TAPPING SCREW 5X35 |
| 48 |  |
HALF NUT COMPLETE |
| 49 |  |
COMPRESSION SPRING 12 |
| 50 |  |
PAN HEAD SCREW M6X25 |
| 51 |  |
TAPPING SCREW 4X18 |
| 52 |  |
GRIP COVER L |
| 53 |  |
GRIP L |
| 54 |  |
BRUSH HOLDER CAP 7-18 |
| 55 |  |
CARBON BRUSH CB-203 |
| 56 |  |
INDICATION LABEL |
| 57 |  |
TAPPING SCREW BIND CT 4X12 |
| 58 |  |
LED CIRCUIT |
| 59 |  |
TORSION SPRING 15 |
| 60 |  |
SET BOLT M10 |
| 61 |  |
LOCK LEVER |
| 62 | PAN HEAD SCREW M5X12 | |
| 63 | SILENT POLE | |
| 64 | COMPRESSION SPRING 13 | |
| 65 | SCREW M10 | |
| 66 | TIP DEFLECTOR | |
| 67 | #ИМЯ? | |
| 68 | O RING 8 | |
| 69 | #ИМЯ? | |
| 70 | #ИМЯ? | |
| 71 | STOPPER | |
| 72 | #ИМЯ? | |
| 73 | STEEL BALL 7.1 | |
| 74 | COMPRESSION SPRING 5 | |
| 75 | THUMB SCREW M5X14 | |
| 76 | COMPRESSION SPRING 7 | |
| 77 | FLAT WASHER 6 | |
| 78 | HEX. NUT M6 | |
| 79 | THUMB SCREW M4X19 | |
| 80 | O RING 3 | |
| 81 | THUMB SCREW M5X14 | |
| 82 | COMPRESSION SPRING 7 | |
| 83 | POLE | |
| 84 | COMPRESSION SPRING 11 | |
| 85 | BASE COMPLETE | |
| 86 | CAP 14 | |
| 87 | LOCK PLATE | |
| 88 | COMPRESSION SPRING 4 | |
| 89 | BASE PLATE | |
| 90 | COUNTERSUNK HEAD SCREW M4X10 | |
| 91 | SET BOLT M5X10 | |
| A01 | STRAIGHT GUIDE SET | |
| A02 | DUST NOZZLE ASS\\\'Y | |
| A05 | #ИМЯ? | |
| A06 | COLLET SLEEVE FOR 6 MM BIT | |
| A07 | COLLET SLEEVE FOR 8 MM BIT | |
| A08 | WRENCH 24 | |
| A09 | FLAT WASHER 6 |
