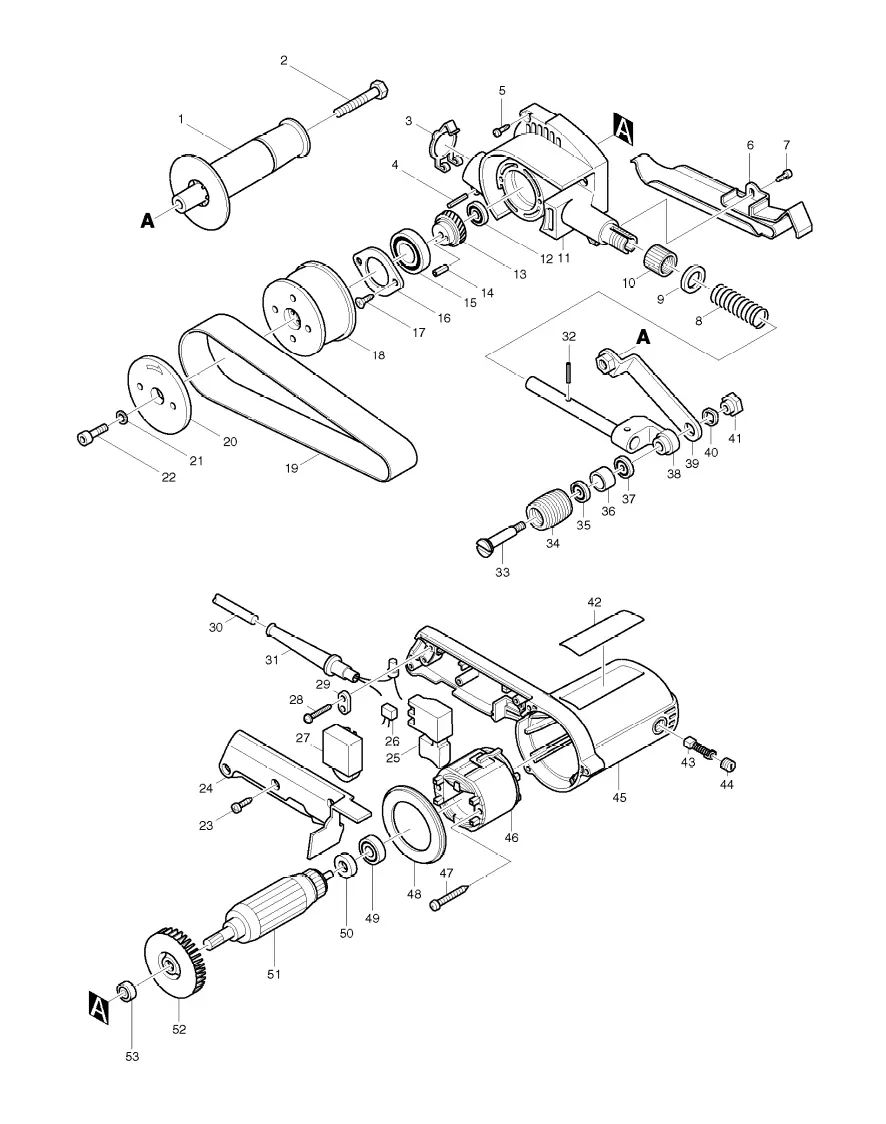

9031
9031
| П-п | Арт | Название |
|---|---|---|
| 1 | GRIP 36 COMPLETE | |
| 3 | CAP 30 | |
| 4 | SPRING PIN 4-20 | |
| 5 | TAPPING SCREW 4X25 | |
| 6 | FLAT SHOE | |
| 7 | TAPPING SCREW BIND CT 5X12 | |
| 8 | COMPRESSION SPRING 13 | |
| 9 | FLAT WASHER 12 | |
| 10 | WING NUT M16 | |
| 11 | GEAR HOUSING COMPLETE | |
| 12 | BALL BEARING 607LB | |
| 13 | HELICAL GEAR 35 | |
| 14 | SPRING PIN 3.5-12 | |
| 15 | BALL BEARING 6904DDW | |
| 16 | BEARING RETAINER 44 | |
| 17 | TAPPING SCREW CT 4X12 | |
| 18 | PULLEY 33-64 | |
| 19 | BELT 533-AA100 10PC. | |
| 20 | PULLEY LINER | |
| 21 | FLAT WASHER 5 | |
| 22 | HEX. SOCKET HEAD BOLT M5X20 | |
| 23 | TAPPING SCREW 4X18 | |
| 24 | HANDLE COVER | |
| 25 | SWITCH SGEL206C | |
| 26 | NOISE SUPPRESSOR | |
| 27 | CONTROLLER | |
| 28 | TAPPING SCREW 4X18 | |
| 29 | STRAIN RELIEF | |
| 30 | POWER SUPPLY CORD 1.0-2-2.5 | |
| 31 | CORD GUARD 8-85 | |
| 32 | SPRING PIN 4-20 | |
| 33 | TOP PULLEY SHAFT | |
| 34 | PULLEY 30-25 | |
| 35 | BALL BEARING 688DDW | |
| 36 | SLEEVE 12 | |
| 37 | BALL BEARING 688DDW | |
| 38 | ANGLE STAY COMPLETE | |
| 39 | ARM COMPLETE | |
| 40 | WAVE WASHER 12 | |
| 41 | HEX. NUT M6-17 | |
| 42 | NAME PLATE 9031 | |
| 43 | CARBON BRUSH CB-411 | |
| 44 | BRUSH HOLDER CAP 5-8 | |
| 45 | MOTOR HOUSING COMPLETE | |
| 46 | FIELD ASS\\\'Y 220V | |
| 47 | TAPPING SCREW 4X60 | |
| 48 | BAFFLE PLATE | |
| 49 | BALL BEARING 627LB | |
| 50 | INSULATION WASHER | |
| 51 | ARMATURE ASS\\\'Y 220V INC. 49,50,52,53 | |
| 52 | FAN 60 | |
| 53 | BALL BEARING 608DDW | |
| A01 | BELT 533-AA40 10PCS | |
| A02 | ABRASIVE BELT 30X533 AA60 | |
| A03 | BELT 533-AA80 10PC. | |
| A04 | BELT 533-AA100 10PC. | |
| A05 | ABRASIVE BELT 533-AA120 | |
| E04 | INSULATED TERMINAL FK2-M3D-5.5 | |
| E07 | FLONT COVER | |
| E08 | EARTH TERMINAL |
