9036
9036

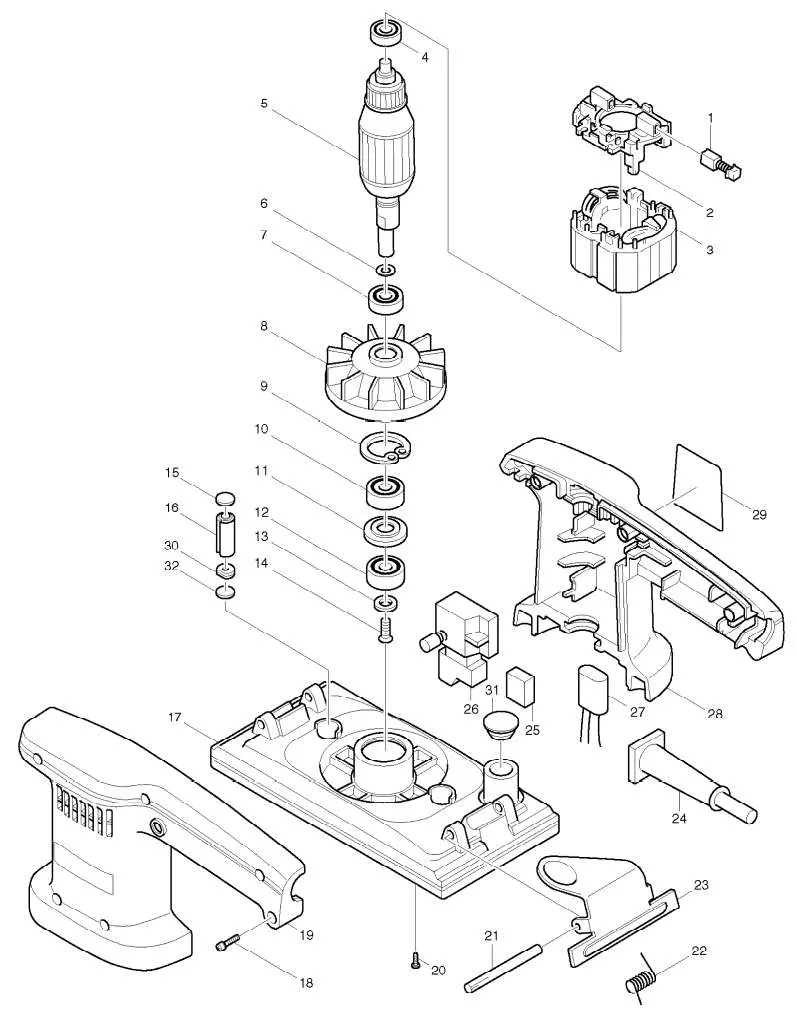

| П-п | Арт | Название |
|---|---|---|
| 1 | CARBON BRUSH CB-70 | |
| 2 | TERMINAL BASE COMPLETE 55A | |
| 3 | FIELD 220V | |
| 4 | BALL BEARING 627LLB | |
| 5 | ARMATURE ASS\\\\\'Y 220V INC. 4,6,7 | |
| 6 | STOP RING E-10 | |
| 7 | BALL BEARING 6001LLB | |
| 8 | FAN 68 | |
| 9 | RETAINING RING R-26 | |
| 10 | BALL BEARING 629DDW | |
| 11 | RING 9 | |
| 12 | BALL BEARING 629DDW | |
| 13 | FLAT WASHER 6 | |
| 14 | + COUNTERSUNK HEAD SCREW M4X12 | |
| 15 | PLATE | |
| 16 | FOOT | |
| 17 | BASE ASS\\\\\'Y INC. 20 | |
| 18 | PAN HEAD SCREW M4X30 | |
| 19 | HOUSING SET INC. 28 | |
| 20 | TAPPING SCREW BIND CT 4X12 | |
| 21 | PIN 4-55 | |
| 22 | TORSION SPRING 4 | |
| 23 | PAPER CLAMP | |
| 24 | POWER SUPPLY CORD 1.0-2-2.0 | |
| 25 | SPONGE SHEET | |
| 26 | SWITCH SGEL206C | |
| 27 | NOISE SUPPRESSOR | |
| 28 | HOUSING SET INC. 19 | |
| 29 | NAME PLATE 9036 | |
| 30 | FOOT RECEIVER | |
| 31 | CAP 19 | |
| 32 | PLATE | |
| A01 | ABRASIVE PAPER 93X228 #60 | |
| E02 | CORD GUARD 8-85 | |
| E03 | PUNCH PLATE | |
| E04 | JOINT 20 | |
| E05 | O RING 16 |
