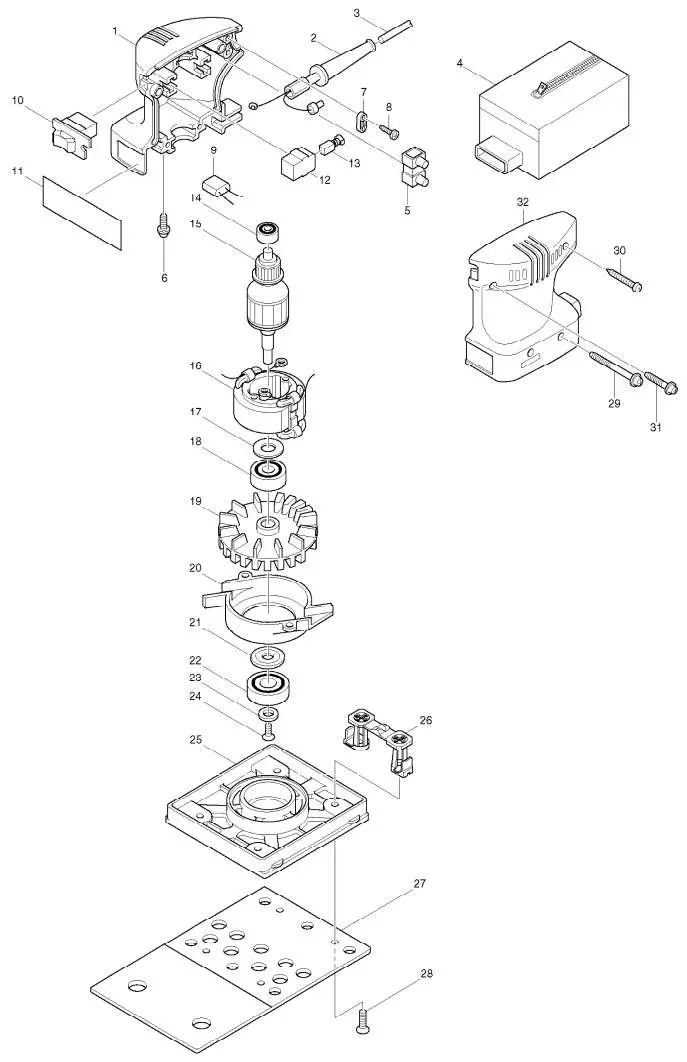

BO 4563
BO 4563
| П-п | Арт | Название |
|---|---|---|
| 1 | HOUSING SET INC. 32 | |
| 2 | CORD GUARD 8-85 | |
| 3 | POWER SUPPLY CORD 1.0-2-2.0 | |
| 4 | DUST BAG | |
| 5 | TERMINAL BLOCK 1P | |
| 6 | TAPPING SCREW BT 4X16 | |
| 7 | CORD CLAMP | |
| 8 | TAPPING SCREW 4X18 | |
| 9 | NOISE SUPPRESSOR | |
| 10 | SWITCH WS107ADT-1 | |
| 11 | NAME PLATE BO4563 | |
| 12 | BRUSH HOLDER 5-8 | |
| 13 | CARBON BRUSH CB-64 | |
| 14 | BALL BEARING 607LLB | |
| 15 | ARMATURE ASS\\\\\'Y 220V INC. 14,17,18 | |
| 16 | FIELD ASS\\\\\'Y 220V | |
| 17 | FLAT WASHER 9 | |
| 18 | BALL BEARING 629DDW | |
| 19 | FAN 63 | |
| 20 | BAFFLE PLATE | |
| 21 | DUST SEAL 10 | |
| 22 | BALL BEARING 6200LLB | |
| 23 | FLAT WASHER 6 | |
| 24 | COUNTERSUNK HEAD SCREW M4X12 | |
| 25 | BASE COMPLETE | |
| 26 | FOOT | |
| 27 | PLATE COMPLETE | |
| 28 | COUNTERSUNK HEAD SCREW M4X16 | |
| 29 | TAPPING SCREW BT 4X50 | |
| 30 | TAPPING SCREW BT 4X40 | |
| 31 | TAPPING SCREW BT 4X25 | |
| 32 | HOUSING SET INC. 1 | |
| A01 | PAPER DUST BAG SET | |
| A02 | PAPER DUST BAG HOLDER SET | |
| A03 | ADAPTER SET |
