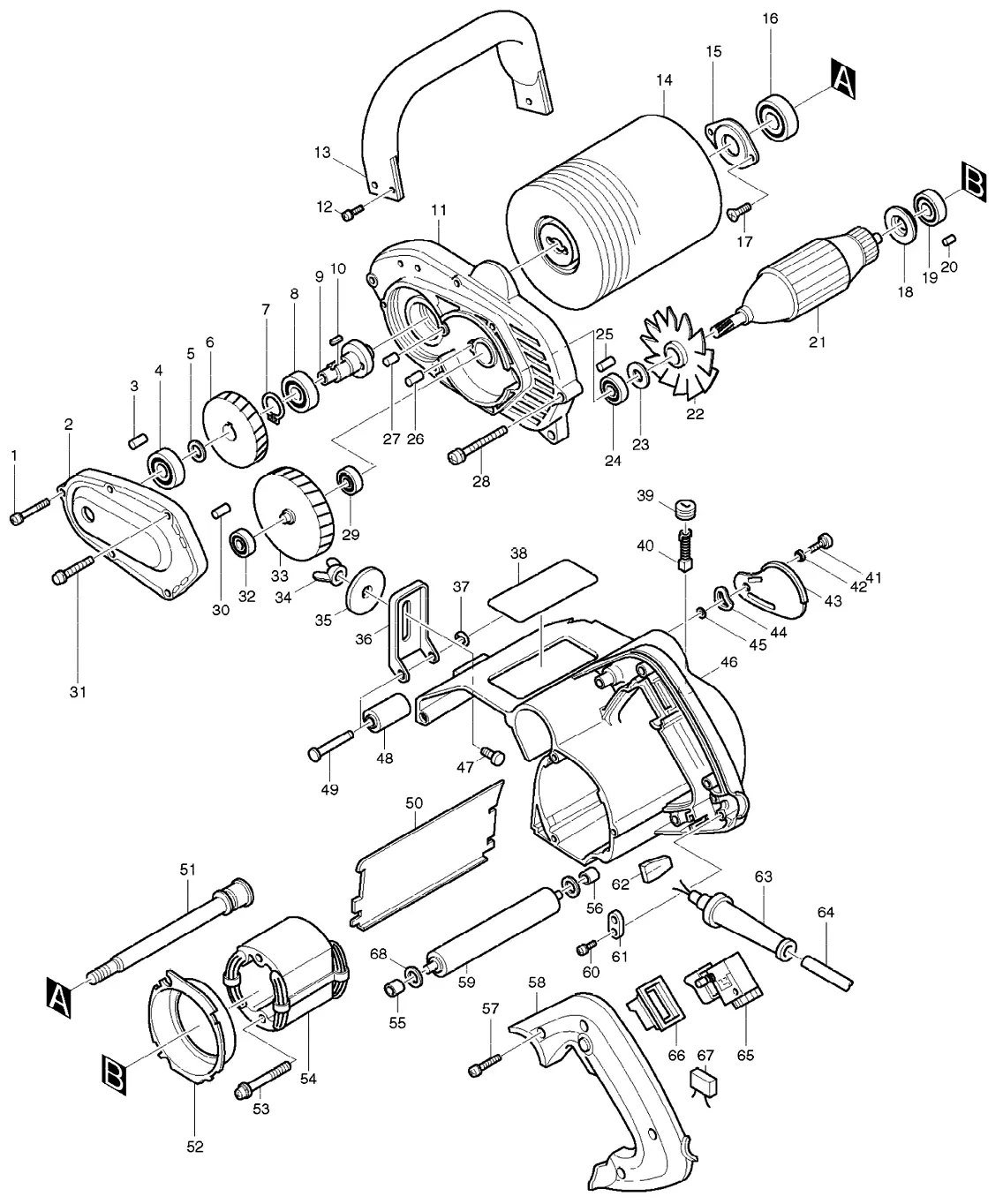

9741
9741
| П-п | Арт | Название |
|---|---|---|
| 1 | PAN HEAD SCREW M5X28 | |
| 2 | GEAR HOUSING COVER INC. 3,30 | |
| 3 | RUBBER PIN 4 | |
| 4 | BALL BEARING 6001LLB | |
| 5 | FLAT WASHER 12 | |
| 6 | HELICAL GEAR 53 | |
| 7 | RETAINING RING S-15 | |
| 8 | BALL BEARING 6002DDW | |
| 9 | SPINDLE | |
| 10 | KEY 4 | |
| 11 | GEAR HOUSING INC. 25-27,55 | |
| 12 | PAN HEAD SCREW M5X14 | |
| 13 | GRIP | |
| 14 | NYLON BRUSH WHEEL 120-80 | |
| 15 | BEARING RETAINER | |
| 16 | BALL BEARING 6003DDW | |
| 17 | COUNTERSUNK HEAD SCREW M4X14 | |
| 18 | INSULATION WASHER | |
| 19 | BALL BEARING 608LLB | |
| 20 | RUBBER PIN 4 | |
| 21 | ARMATURE ASS\\\\\'Y 220V INC. 18,19,22,23,24 | |
| 22 | FAN 68 | |
| 23 | FLAT WASHER 10 | |
| 24 | BALL BEARING 6000DDW | |
| 25 | RUBBER PIN 4 | |
| 26 | RUBBER PIN 4 | |
| 27 | RUBBER PIN 6 | |
| 28 | PAN HEAD SCREW M5X35 | |
| 29 | BALL BEARING 626 | |
| 30 | RUBBER PIN 4 | |
| 31 | PAN HEAD SCREW M5X55 | |
| 32 | BALL BEARING 626 | |
| 33 | GEAR COMPLETE 64 | |
| 34 | WING NUT M6 | |
| 35 | FLAT WASHER 6 | |
| 36 | DEPTH GUIDE | |
| 37 | STOP RING E-5 | |
| 38 | NAME PLATE 9741 | |
| 39 | BRUSH HOLDER CAP 6-10 | |
| 40 | CARBON BRUSH CB-100 | |
| 41 | + PAN HEAD SCREW M4 | |
| 42 | THIN WASHER 6 | |
| 43 | COVER PLATE | |
| 44 | WAVE WASHER 14 | |
| 45 | FLAT WASHER 4 | |
| 46 | HOUSING | |
| 47 | CAP SQUARE NECK BOLT M6X20 | |
| 48 | FRONT ROLLER | |
| 49 | PIN 7 | |
| 50 | PLATE | |
| 51 | ARBOR | |
| 52 | BAFFLE PLATE | |
| 53 | PAN HEAD SCREW M5X60 | |
| 54 | FIELD ASS\\\\\'Y 220V | |
| 55 | SLEEVE 6 | |
| 56 | SLEEVE 6 | |
| 57 | PAN HEAD SCREW M4X28 | |
| 58 | HANDLE COVER | |
| 59 | ROLLER | |
| 60 | PAN HEAD SCREW M4X18 | |
| 61 | STRAIN RELIEF | |
| 62 | SPONGE SEAL | |
| 63 | CORD GUARD 8-85 | |
| 64 | POWER SUPPLY CORD 1.5-2-5.0 | |
| 65 | SWITCH SGEL210R-4 | |
| 66 | SWITCH COVER | |
| 67 | NOISE SUPPRESSOR | |
| 68 | FLAT WASHER 6 | |
| 400 | JOINT | |
| 401 | HEX. WRENCH 6 |
