BGD 800 C

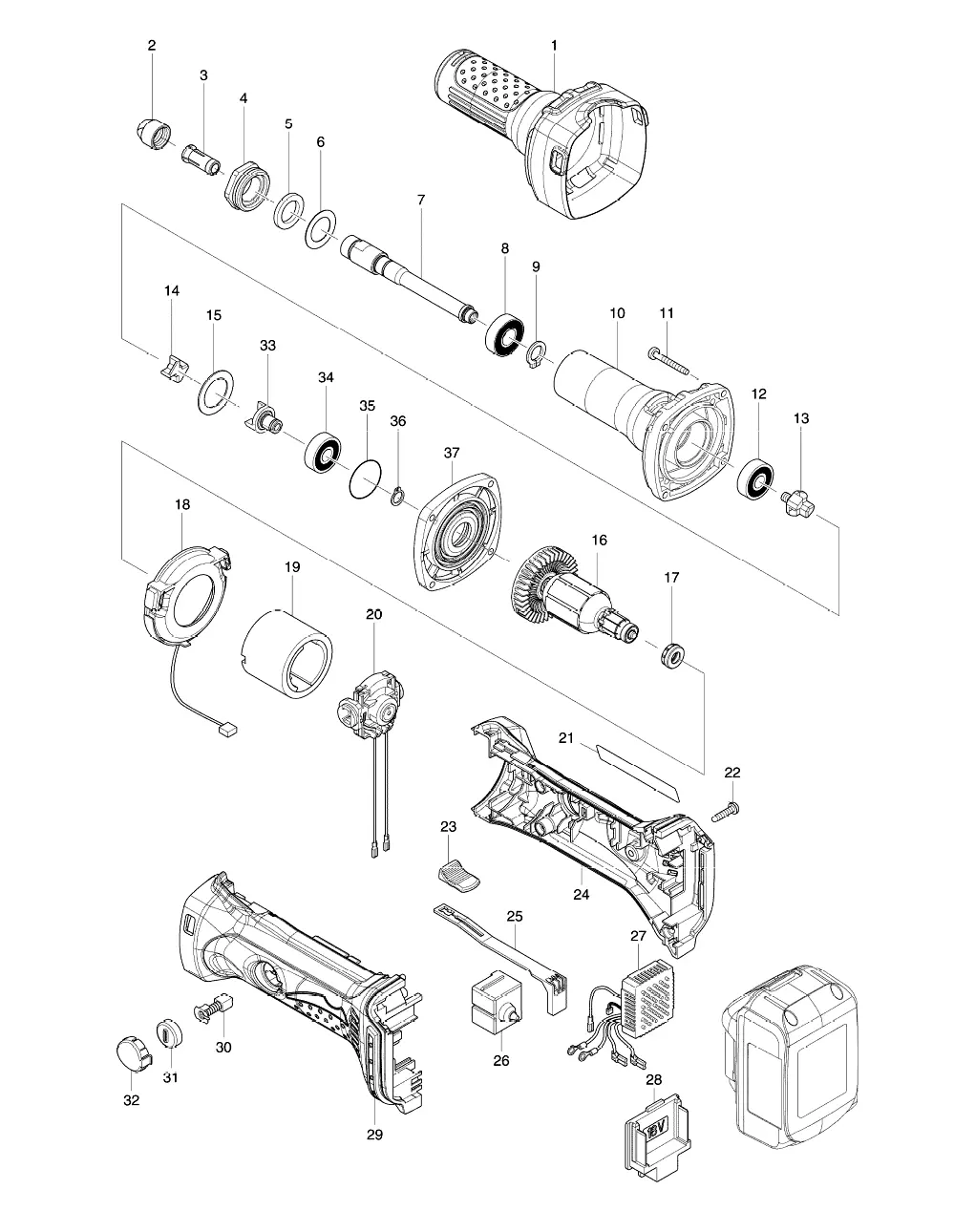

BGD 800 C
| П-п | Арт | Название |
|---|---|---|
| 1 | INSULATION COVER | |
| 2 | COLLET NUT | |
| 3 | COLLET CONE 6 | |
| 4 | BEARING RETAINER | |
| 5 | FELT RING 17 | |
| 6 | FLAT WASHER 18 | |
| 7 | SPINDLE | |
| 8 | BALL BEARING 6001LLB | |
| 9 | RETAINING RING S-12 | |
| 10 | BARREL | |
| 11 | TAPPING SCREW 4X30 | |
| 12 | BALL BEARING 629LLB | |
| 13 | COUPLING | |
| 14 | SPACER | |
| 15 | FLAT WASHER 22 | |
| 16 | ARMATURE INC. 17 | |
| 17 | RUBBER RING 13 | |
| 18 | LED CIRCUIT | |
| 19 | YOKE UNIT | |
| 20 | ENDBELL COMPLETE | |
| 21 | BGD800 NAME PLATE | |
| 22 |  |
TAPPING SCREW 4X18 |
| 23 |  |
SWITCH KNOB |
| 24 |  |
HOUSING SET INC. 29 |
| 25 |  |
SWITCH LEVER |
| 26 |  |
SWITCH 1246.3223 |
| 27 |  |
CONTROLLER |
| 28 |  |
TERMINAL |
| 29 |  |
HOUSING SET INC. 24 |
| 30 |  |
CARBON BRUSH CB-430 |
| 31 |  |
BRUSH HOLDER CAP |
| 32 |  |
HOLDER CAP COVER |
| 33 |  |
COUPLING |
| 34 |  |
BALL BEARING 629LLB |
| 35 |  |
O-RING 26 |
| 36 |  |
RETAINING RING S-9 |
| 37 |  |
GEAR HOUSING COVER |
| A01 |  |
WRENCH 13 |
| A02 |  |
BATTERY COVER |
| A03 |  |
DC18RC FAST CHARGER |
| A04 |  |
BATTERY BL1830 SET |
| A05 |  |
PLASTIC CASE COMPLETE |
| A06 |  |
BGD800RFE PLASTIC CASE LABEL |
