BO 6050

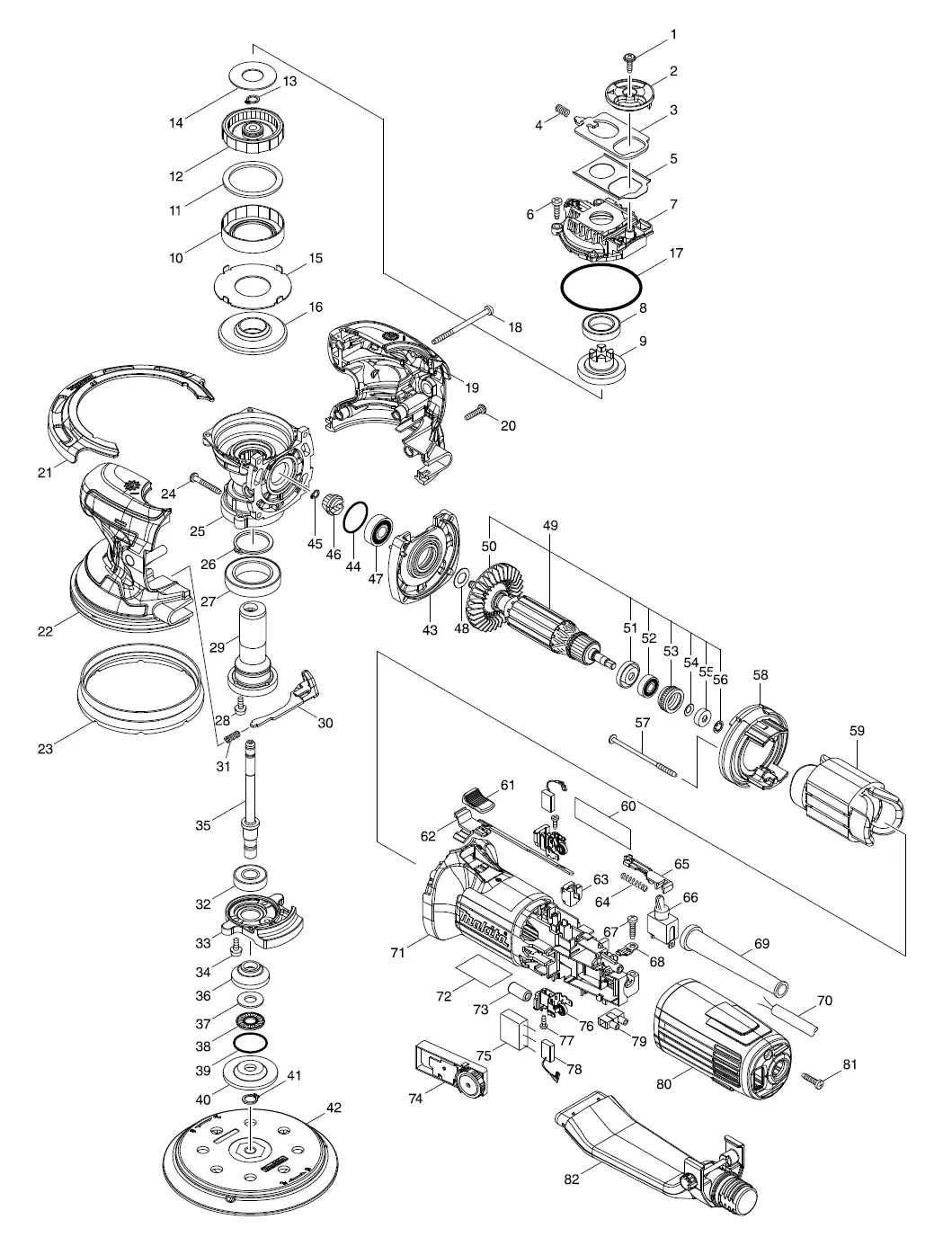

BO 6050
| П-п | Арт | Название |
|---|---|---|
| 1 | TAPPING SCREW 4X14 | |
| 2 | CHANGE KNOB | |
| 3 | CHANGE PLATE | |
| 003-1 | CHANGE PLATE | |
| 4 | COMPRESSION SPRING 5 | |
| 5 | GUIDE PLATE | |
| 6 | TAPPING SCREW CT 4X16 | |
| 7 | TOP COVER | |
| 8 | BALL BEARING 6804LLU | |
| 9 | SPUR GEAR 31 | |
| 10 | BRAKE RING | |
| 11 | SPONGE WASHER 40 | |
| 12 | INTERNAL GEAR 34 | |
| 13 | RETAINING RING S-8 | |
| 14 | FLAT WASHER 18 | |
| 15 | PLATE | |
| 16 | SPIRAL BEVEL GEAR 43 | |
| 17 | O RING 65 | |
| 18 | TAPPING SCREW 4X65 | |
| 19 | HEAD COVER SET | |
| D10 | INC. 22 | |
| 20 | TAPPING SCREW 4X18 | |
| 21 | PAD PROTECTOR | |
| 22 | HEAD COVER SET | |
| D10 | INC. 19 | |
| 23 | RUBBER GUARD | |
| 24 | TAPPING SCREW 4X30 | |
| 25 | GEAR HOUSING COMPLETE | |
| 26 | RETAINING RING S-30 | |
| 27 | BALL BEARING 6906DDW | |
| 28 | PAN HEAD SCREW M4X12 | |
| 29 | OUTER SPINDLE COMPLETE | |
| 30 | SHAFT LOCK COMPLETE | |
| 31 | COMPRESSION SPRING 4 | |
| 32 | BALL BEARING 6001DDW | |
| 33 | BALANCER | |
| 34 | PAN HEAD SCREW M4X12 | |
| 35 | INNER SPINDLE COMPLETE | |
| 36 | COVER | |
| 37 | FLAT WASHER 10 | |
| 38 | THRUST NEEDLE CAGE 1024 | |
| 39 | O-RING 26 | |
| 40 | FLANGE | |
| 41 | RETAINING RING S-10 | |
| 42 | PAD 150 SET | |
| 43 | GEAR HOUSING COVER COMPLETE | |
| 44 | O-RING 26 | |
| 45 | RETAINING RING S-6 | |
| 46 | SPIRAL BEVEL GEAR 11 | |
| 47 | BALL BEARING 6000DDW | |
| 48 | FLAT WASHER 10 | |
| 49 | ARMATURE ASS\\\'Y 220-240V | |
| D10 | INC. 50-56 | |
| 50 | FAN 60 | |
| 51 | INSULATION WASHER | |
| 52 | BALL BEARING 607LLB | |
| 53 | LABYRINTH RUBBER RING 19 | |
| 54 | WAVE WASHER 6 | |
| 55 | MAGNET SLEEVE | |
| 56 | SELF LOCK 6 | |
| 57 | TAPPING SCREW 4X75 | |
| 58 | BAFFLE PLATE | |
| 59 | FIELD 220-240V | |
| 60 | B06050 NAME PLATE | |
| 61 | SWITCH KNOB | |
| 62 | FRONT SWITCH LEVER | |
| 63 | PICUP COIL COVER | |
| 64 | COMPRESSION SPRING 4 | |
| 65 | REAR SWITCH LEVER | |
| 66 | SWITCH | |
| 67 | TAPPING SCREW 4X18 | |
| 68 | STRAIN RELIEF | |
| 69 | CORD GUARD 10 | |
| 70 | POWER SUPPLY CORD 1.0-2-4.0 | |
| 71 | MOTOR HOUSING | |
| 72 | INDICATION LABEL | |
| 73 | LINE FILTER | |
| 74 | CONTROLLER | |
| 75 | NOISE SUPPRESSOR | |
| 76 | BRUSH HOLDER | |
| 77 | TAPPING SCREW BIND PT 3X10 | |
| 78 | CARBON BRUSH CB-325 | |
| 79 | TERMINAL BLOCK 1P | |
| 80 | REAR COVER | |
| 81 | TAPPING SCREW 4X18 | |
| 82 | NOZZLE COMPLETE | |
| A01 | GRIP 36 COMPLETE | |
| A02 | CONNECTOR PLASTIC CASE (TYPE3) | |
| C10 | LATCH | |
| A03 | INNER TRAY | |
| A04 | B06050J INDICATION LABEL | |
| A05 | B06050J PLASTIC CASE LABEL | |
| A06 | ABRASIVE DISC 150#120 |
