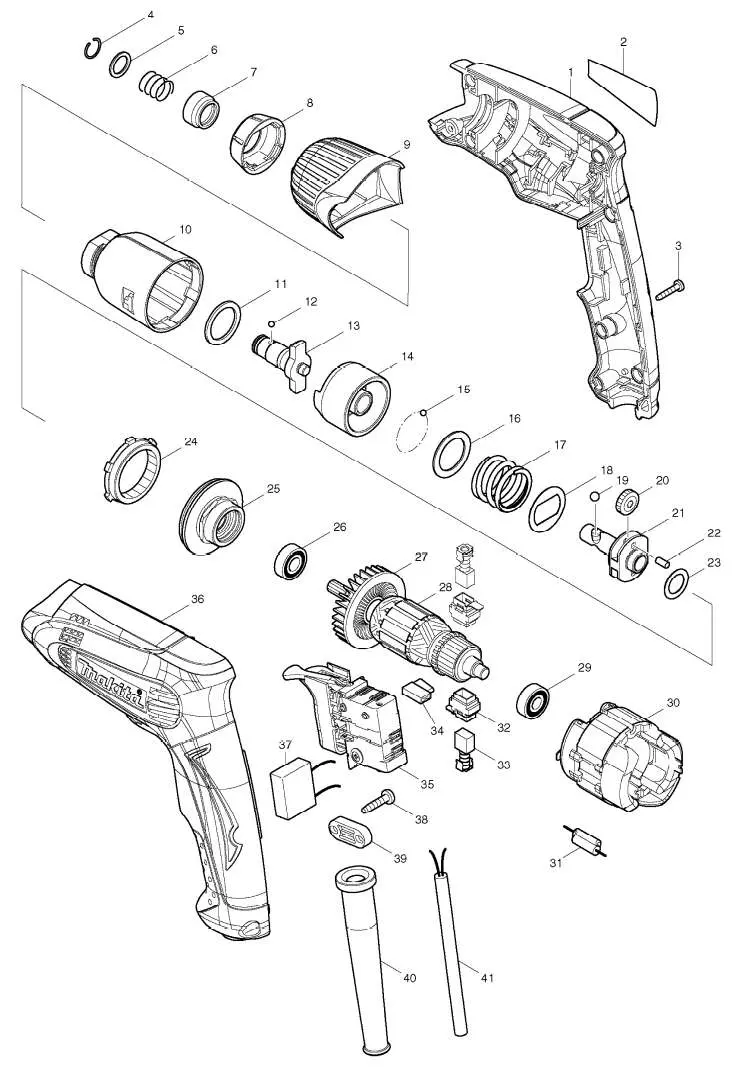

TD 0100
| П-п | Арт | Название |
|---|---|---|
| 001 | HOUSING SET | |
| INC. 36 | ||
| 002 | TD0100 NAME PLATE | |
| 003 | TAPPING SCREW 3X16 | |
| 004 | RING SPRING 10 | |
| 005 | FLAT WASHER 11 | |
| 006 | COMPRESSION SPRING 13 | |
| 007 | BIT SLEEVE | |
| 008 | BAMPER | |
| 009 | HAMMER CASE COVER | |
| 010 | HAMMER CASE COMPLETE | |
| 011 | NYLON WASHER 20 | |
| 012 | STEEL BALL 3 | |
| 013 | ANVIL M | |
| 014 | HAMMER | |
| 015 | STEEL BALL 3 | |
| 016 | FLAT WASHER 20 | |
| 017 | COMPRESSION SPRING 21 | |
| 018 | WASHER 21 | |
| 019 | STEEL BALL 4.8 | |
| 020 | SPUR GEAR 17 | |
| 021 | SPINDLE | |
| 022 | PIN 3.5 | |
| 023 | FLAT WASHER 12 | |
| 024 | INTERNAL GEAR 43 | |
| 025 |  |
BEARING BOX COMPLETE |
| 026 |  |
BALL BEARING 698VV |
| 027 |  |
FAN 46 |
| 028 |  |
ARMATURE ASS\\\'Y 240V |
| INC. 26,27,29 |  |
|
| 029 |  |
BALL BEARING 607ZZ |
| 030 |  |
FIELD 240V |
| 031 |  |
CHOKE COIL |
| 032 |  |
BRUSH HOLDER |
| 033 |  |
CARBON BRUSH CB-419 |
| 034 |  |
RECEPTACLE SLEEVE |
| 035 |  |
SWITCH C3TA-2 |
| 036 |  |
HOUSING SET |
| INC. 1 |  |
|
| 038 |  |
TAPPING SCREW 4X18 |
| 039 |  |
STRAIN RELIEF |
| 040 |  |
CORD GUARD 10 |
| 041 |  |
POWER SUPPLY CORD 1.0-2-2.5 |
| A01 |  |
+ BIT 2-50 |
