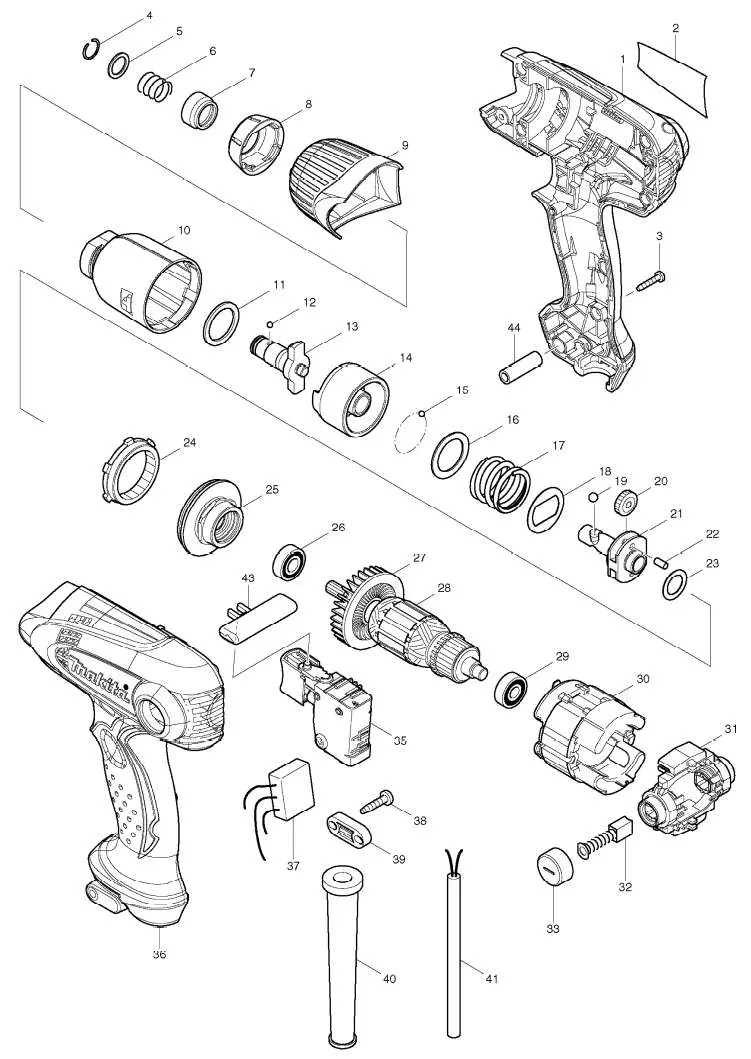

TD 0101
| П-п | Арт | Название |
|---|---|---|
| 001 |  |
HOUSING SET |
| INC. 36 |  |
|
| 002 |  |
TD0101 NAME PLATE |
| 003 |  |
TAPPING SCREW 3X16 |
| 004 |  |
RING SPRING 10 |
| 005 |  |
FLAT WASHER 11 |
| 006 |  |
COMPRESSION SPRING 13 |
| 007 |  |
BIT SLEEVE |
| 008 |  |
BAMPER |
| 009 |  |
HAMMER CASE COVER |
| 010 |  |
HAMMER CASE COMPLETE |
| 011 |  |
NYLON WASHER 20 |
| 012 |  |
STEEL BALL 3 |
| 013 |  |
ANVIL M |
| 014 |  |
HAMMER |
| 015 |  |
STEEL BALL 3 |
| 016 |  |
FLAT WASHER 20 |
| 017 |  |
COMPRESSION SPRING 21 |
| 018 |  |
WASHER 21 |
| 019 |  |
STEEL BALL 4.8 |
| 020 |  |
SPUR GEAR 17 |
| 021 |  |
SPINDLE |
| 022 |  |
PIN 3.5 |
| 023 |  |
FLAT WASHER 12 |
| 024 |  |
INTERNAL GEAR 43 |
| 025 |  |
BEARING BOX COMPLETE |
| 026 |  |
BALL BEARING 698VV |
| 027 |  |
FAN 46 |
| 028 |  |
ARMATURE ASS\\\'Y 240V |
| INC. 26,27,29 |  |
|
| 029 |  |
BALL BEARING 607ZZ |
| 030 |  |
FIELD 240V |
| 031 | HOLDER ARM COMPLETE | |
| 032 | CARBON BRUSH CB-411 | |
| 033 | BRUSH HOLDER CAP | |
| 035 | SWITCH C3TA | |
| 036 | HOUSING SET | |
| INC. 1 | ||
| 037 | NOISE SUPPRESSOR | |
| 038 | TAPPING SCREW 4X18 | |
| 039 | STRAIN RELIEF | |
| 040 | CORD GUARD 10 | |
| 041 | POWER SUPPLY CORD 1.0-2-2.5 | |
| 043 | F/R CHANGE LEVER | |
| 044 | SLEEVE 5 | |
| A01 | + BIT 2-50 |
