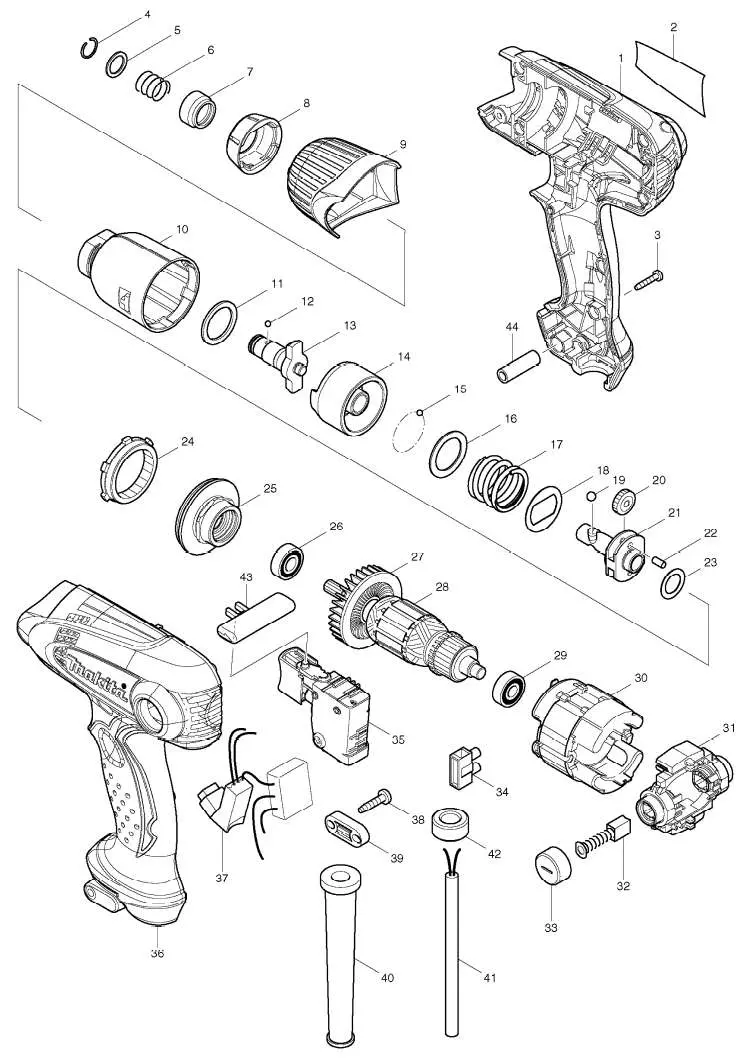

TD 0101 F
| П-п | Арт | Название |
|---|---|---|
| 001 | HOUSING SET | |
| INC. 36 | ||
| 002 | TD0101F NAME PLATE | |
| 003 | TAPPING SCREW 3X16 | |
| 004 | RING SPRING 10 | |
| 005 | FLAT WASHER 11 | |
| 006 | COMPRESSION SPRING 13 | |
| 007 | BIT SLEEVE | |
| 008 | BAMPER | |
| 009 | HAMMER CASE COVER | |
| 010 | HAMMER CASE COMPLETE | |
| 011 | NYLON WASHER 20 | |
| 012 | STEEL BALL 3 | |
| 013 | ANVIL M | |
| 014 | HAMMER | |
| 015 | STEEL BALL 3 | |
| 016 | FLAT WASHER 20 | |
| 017 | COMPRESSION SPRING 21 | |
| 018 | WASHER 21 | |
| 019 | STEEL BALL 4.8 | |
| 020 | SPUR GEAR 17 | |
| 021 | SPINDLE | |
| 022 | PIN 3.5 | |
| 023 | FLAT WASHER 12 | |
| 024 | INTERNAL GEAR 43 | |
| 025 | BEARING BOX COMPLETE | |
| 026 | BALL BEARING 698VV | |
| 027 | FAN 46 | |
| 028 | ARMATURE ASS\\\'Y 240V | |
| INC. 26,27,29 | ||
| 029 | BALL BEARING 607ZZ | |
| 030 | FIELD 240V | |
| 031 | HOLDER ARM COMPLETE | |
| 032 | CARBON BRUSH CB-411 | |
| 033 | BRUSH HOLDER CAP | |
| 034 | TERMINAL BLOCK 1P | |
| 035 | SWITCH C3TA | |
| 036 | HOUSING SET | |
| INC. 1 | ||
| 037 | LIGHT CIRCUIT | |
| 038 | TAPPING SCREW 4X18 | |
| 039 | STRAIN RELIEF | |
| 040 | CORD GUARD 10 | |
| 041 | POWER SUPPLY CORD 1.0-2-2.5 | |
| 043 | F/R CHANGE LEVER | |
| 044 | SLEEVE 5 | |
| A01 | + BIT 2-50 |
