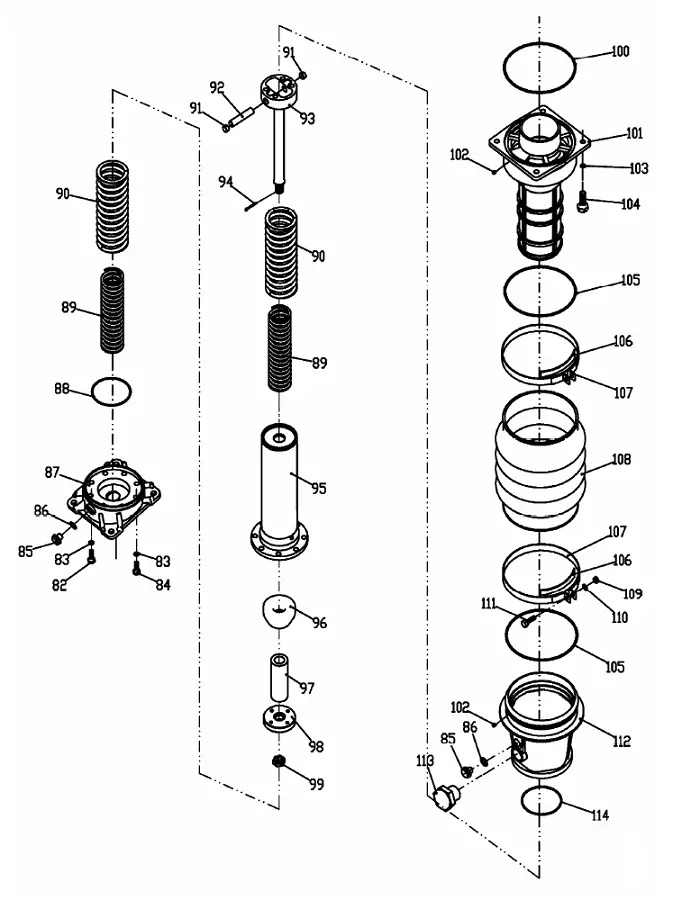

Трамбовочная система
| П-п | Арт | Название |
|---|---|---|
| 82 | HEX HEAD SCREW M10X20 | |
| 83 | SPRING WASHER 10 | |
| 84 | HEX HEAD SCREW M10X40 | |
| 85 | PLUG THREADED | |
| 86 | GASKET | |
| 87 | FOOT PLATE | |
| 88 | O-RING | |
| 89 | SPRING, INNER | |
| 90 | SPRING, OUTER | |
| 91 | PLUG | |
| 92 | PISTON PIN | |
| 93 | PISTON ROD | |
| 94 | PIN | |
| 95 | SPRING CYLINDER | |
| 96 | STOPPER, UPPER | |
| 97 | STOPPER, LOWER | |
| 98 | PISTON END | |
| 99 | SCREW M8X1.5 | |
| 100 | O-RING | |
| 101 | GUIDE CYLINDER | |
| 102 | PIN | |
| 103 | SPRING WASHER 10 | |
| 104 | SCREW M10X35 | |
| 105 | O-RING | |
| 106 | SPACER | |
| 107 | BELLOW CLAMP | |
| 108 | BELLOW | |
| 109 | NUT M8 | |
| 110 | FLAT WASHER | |
| 111 | SCREW M8X35 | |
| 112 | SPRING CYLINDER | |
| 113 | OIL LEVER GAUGE | |
| 114 | O-RING |
