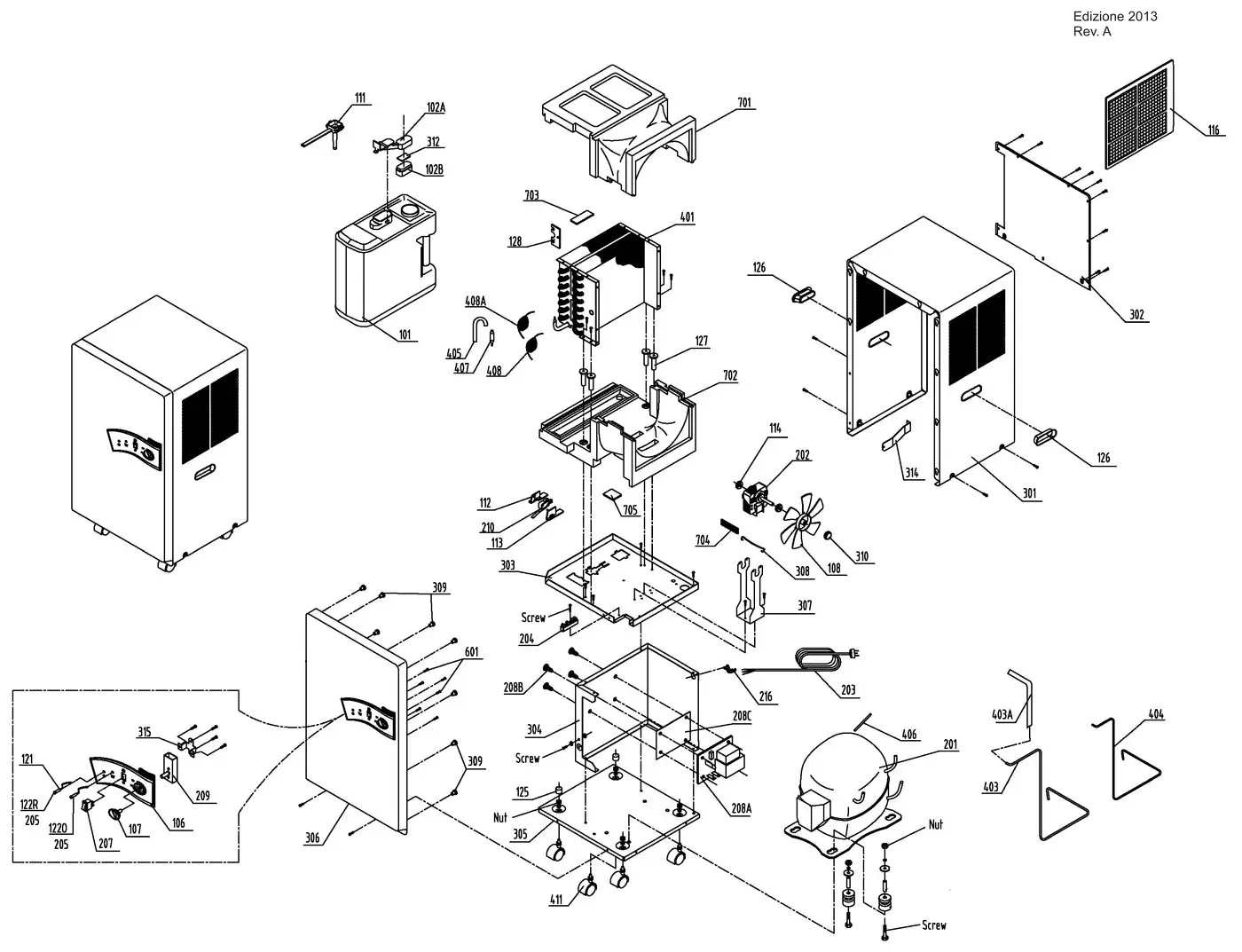

Деталировка DH 721
| П-п | Арт | Название |
|---|---|---|
| 101 | Water Tank | |
| 102A | Float Lever | |
| 102B | Float | |
| 106 | Control Panel | |
| 107 | Knob For Humidity Control | |
| 108 | Fan Blade | |
| 111 | Funnel | |
| 112 | Left Cover For Microswitch | |
| 113 | Right Cover For Microswitch | |
| 114 | Grommet For Motor | |
| 116 | Filter Frame | |
| 121 | Base For Indicators | |
| 122R | Red Indicator | |
| 122O | Orange Indicator | |
| 125 | Rubber Tube | |
| 126 | Handle | |
| 127 | Fixing Socket | |
| 128 | Sensor Holder | |
| 201 | Compressor | |
| 202 | Fan Motor | |
| 203 | Power Cord | |
| 204 | Terminal Block | |
| 205 | Ibdicator | |
| 207 | Power Switch | |
| 208A | Anti-Frost P.C. Board | |
| 208B | P. C. B. Support | |
| 208C | Bakelite | |
| 209 | Switch For Humidity Control | |
| 210 | Micro Switch | |
| 216 | Strain Relief | |
| 301 | Main Housing | |
| 302 | Rear Plate | |
| 303 | Upper Base | |
| 304 | \\\'L\\\' Shape Bulkhead | |
| 305 | Bottom Base | |
| 306 | Front Plate | |
| 307 | Fan Motor Bracket | |
| 308 | Spring For Motor | |
| 309 | Buckle Of Front Plate | |
| 310 | Screw | |
| 312 | Pad For Float | |
| 314 | Catch For Water Tank | |
| 315 | Holder For Switch | |
| 401 | Cool & Heat Exchangers | |
| 403 | Suction Tube | |
| 403A | Thermal Sheath | |
| 404 | Discharging Tube | |
| 405 | Tube For Refrigerant Oil | |
| 406 | Copper Tube | |
| 407 | Dry Filter | |
| 408 | Capillary | |
| 408A | Sheath For Capillary | |
| 411 | Casters | |
| 701 | Upper Wind Funnel | |
| 702 | Lower Wind Funnel | |
| 703 | Rubber Foam | |
| 704 | Rubber Foam | |
| 705 | Rubber Foam |
