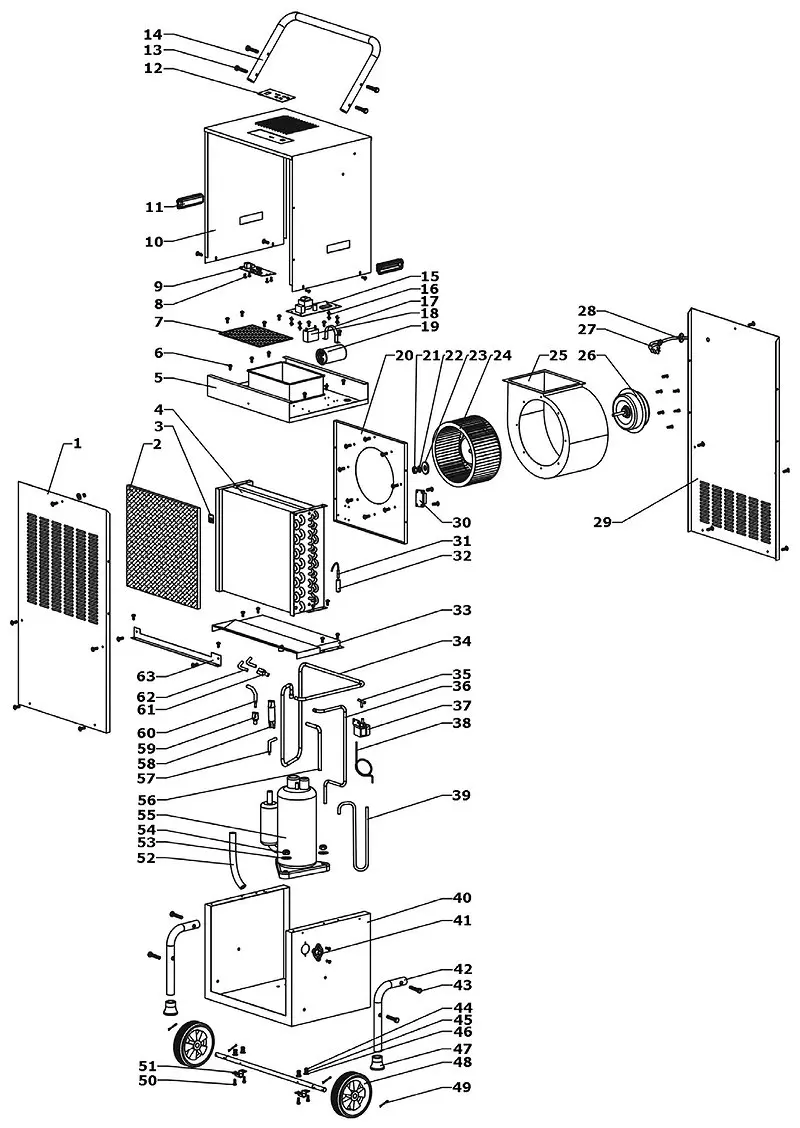

Деталировка DH 771
| П-п | Арт | Название |
|---|---|---|
| 1 | Air Outlet Barrier | |
| 2 | Air Filter | |
| 3 | Humidity Sensor | |
| 4 | Heat Exchanger | |
| 5 | Electrical Appliance Panel Subassembly | |
| 6 | Bolt | |
| 7 | Air Outlet Protection Net | |
| 8 | Bolt | |
| 9 | Display Panel | |
| 10 | Top Cover Subassembly | |
| 11 | Handle | |
| 12 | Film Switch | |
| 13 | Bolt | |
| 14 | Hand Handle | |
| 15 | Pcb Panel | |
| 16 | Controller Bracket | |
| 17 | Capacitor Hoop | |
| 18 | Capacitor(Motor) | |
| 19 | Capacitor(Compressor) | |
| 20 | Air Path Ply | |
| 21 | Motor Fixation Nut | |
| 22 | Spring Mat | |
| 23 | Flat Mat | |
| 24 | Fan Blade | |
| 25 | Helicoid Cover | |
| 26 | Motor | |
| 27 | Power Wire | |
| 28 | Wire Protection Round | |
| 29 | Back Side | |
| 30 | Wire Connection Seat | |
| 31 | Temperture Sensor | |
| 32 | Temperture Sense Head Receptacle Tube | |
| 33 | Water Collection Plate | |
| 34 | Low Voltage Tube | |
| 35 | Trine Connection Tubei | |
| 36 | High Volatge Tube | |
| 37 | Hot Gas | |
| 38 | Defrost Capillary Tube | |
| 39 | High Voltage Tube Ii | |
| 40 | Bottom Plate Subassembly | |
| 41 | Water Outlet | |
| 42 | Corner Shelf | |
| 43 | Bolt | |
| 44 | Nut | |
| 45 | Spring Mat | |
| 46 | Flat Mat | |
| 47 | Bottom Feet Sheath | |
| 48 | Wheels | |
| 49 | Hatch Bolt | |
| 50 | Bolt | |
| 51 | Axle Hoop | |
| 52 | Water Tube | |
| 53 | Compressor Mat | |
| 54 | Compressor Nut | |
| 55 | Compressor | |
| 56 | Air Outlet Tube I | |
| 57 | Air Inlet Tube I | |
| 58 | Fourfold Connection Filter | |
| 59 | Trine Connection Tubei | |
| 60 | Air Outlet Tube Ii | |
| 61 | Trine Connection Tube Ii | |
| 62 | Air Outlet Tube Ii | |
| 62 | Fixation Piece | |
| 63 | Front Bar | |
| не показано | Axle |
