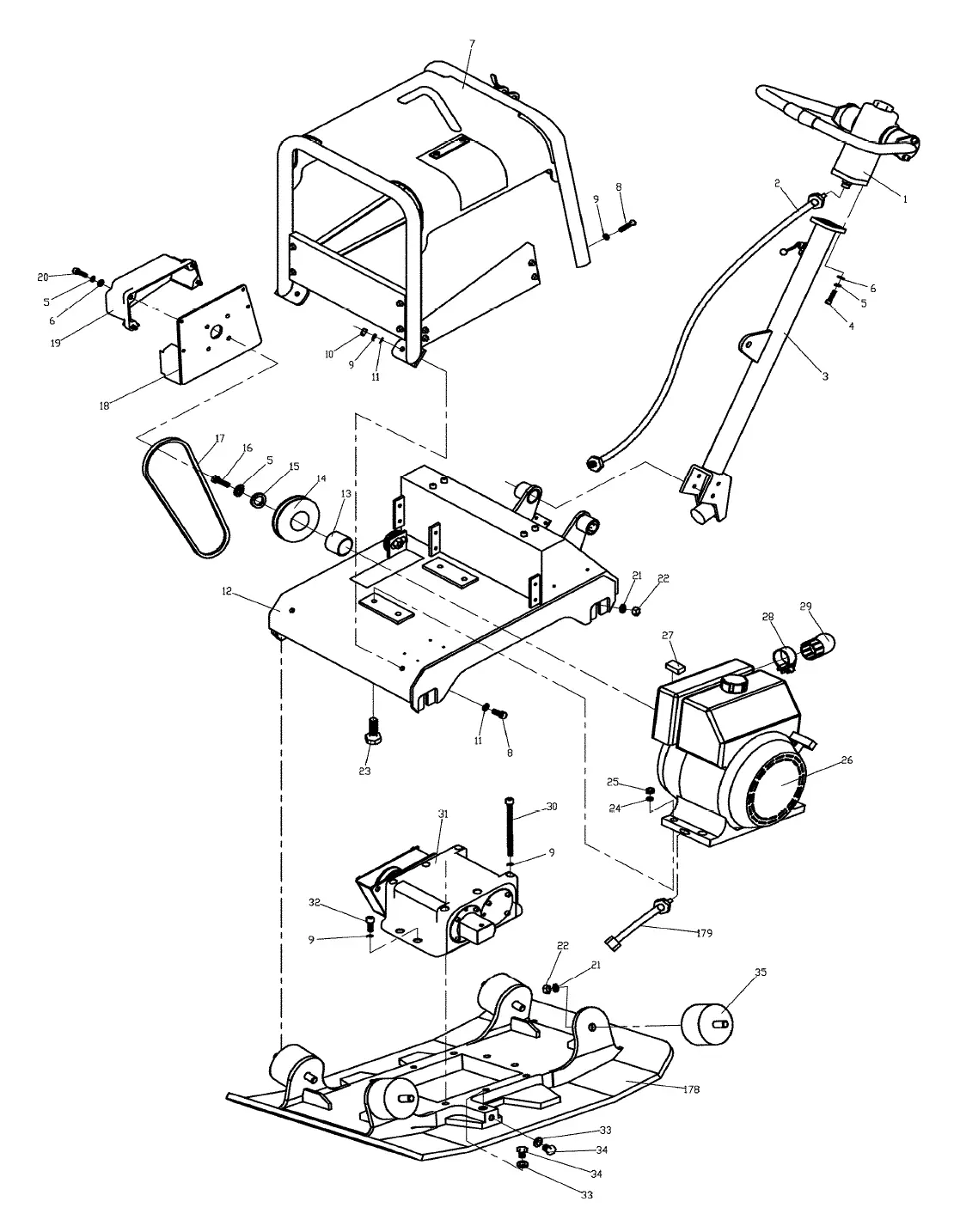

| П-п | Арт | Название |
|---|---|---|
| 1 | HYDRAULIC HANDLE ASSY | |
| 2 | HYDRAULIC HOSE ASSY | |
| 3 | HANDLE ASSY | |
| 4 | SOCKET HEAD SCREW M8X40 | |
| 5 | SPRING WASHER 8 | |
| 6 | FLAT WASHER 8 | |
| 7 | PROTECTIVE FRAME ASSY PCR6040 | |
| 8 | SOCKET HEAD SCREW M12X35 | |
| 9 | SPRING WASHER 12 | |
| 10 | LOCK NUT M12 | |
| 11 | FLAT WASHER 12 | |
| 12 | ENGINE MOUNTING PLATE PCR6040 | |
| 13 | SLEEVE PCR6040, PCR6550 | |
| 14 | CLUTCH | |
| 15 | WASHER | |
| 16 | HEX HEAD SCREW M8X25 | |
| 17 | B-BELT PCR6040, PCR6550 | |
| 18 | GASKET PCR6040, PCR6550 | |
| 19 | CLUTCH COVER PCR6040, PCR6550 | |
| 20 | SOCKET HEAD SCREW M8X25 | |
| 21 | SPRING WASHER 16 | |
| 22 | LOCK NUT M16 | |
| 23 | HEX HEAD SCREW M10 PCR6040 | |
| 24 | SPRING WASHER 10 | |
| 25 | LOCK NUT M10 | |
| 26 | ENGINE | |
| 27 | KEY | |
| 28 | CLAMP | |
| 29 | CONNECTOR | |
| 30 | SOCKET HEAD SCREW 12X150 | |
| 31 | VIBRATION BOX ASSY PCR6040 | |
| 32 | SOCKET HEAD SCREW M12X50 | |
| 33 | GASKET | |
| 34 | HEXAGON PLUG SCREW | |
| 35 | SHOCK ABSORBER | |
| 178 | BASE PLATE ASSY | |
| 179 | OIL DRAIN HOSE |
