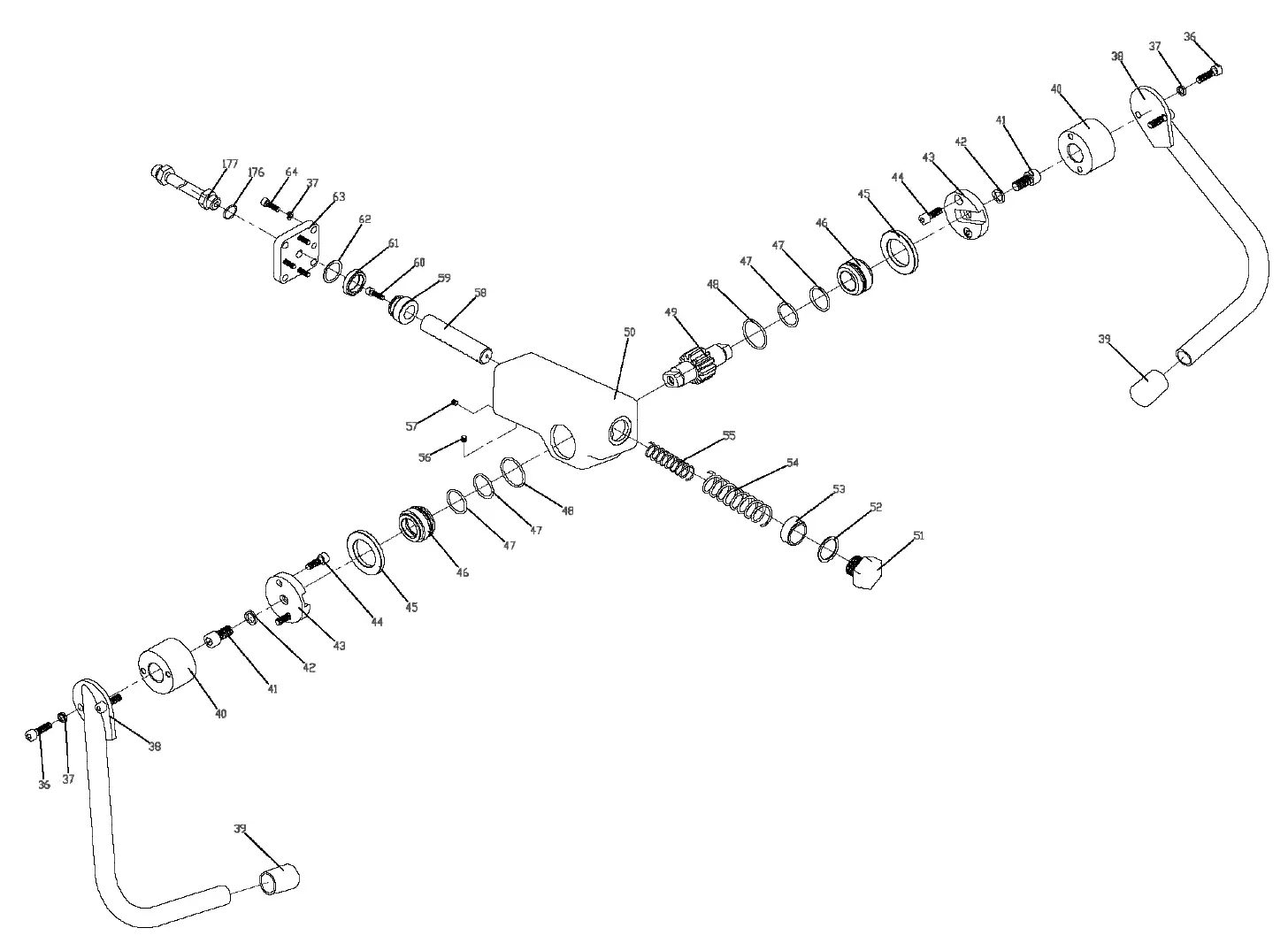

HYDRAULIC HANDLE ASSY
HYDRAULIC HANDLE ASSY
| П-п | Арт | Название |
|---|---|---|
| 36 | SOCKET HEAD SCREW M8X20 | |
| 37 | SPRING WASHER 8 | |
| 38 | HANDLE | |
| 39 | SLEEVE | |
| 40 | SHOCK ABSORBER | |
| 41 | SOCKET HEAD SCREW M12X25 | |
| 42 | SPRING WASHER 12 | |
| 43 | FIXING PLATE | |
| 44 | SOCKET HEAD SCREW M8X15 | |
| 45 | NYLON WASHER | |
| 46 | SLEEVE | |
| 47 | O RING 26×2.65 | |
| 48 | O RING 38.7×2.65 | |
| 49 | GEAR SHAFT | |
| 50 | CASE,HYDRAULIC PUMP | |
| 51 | HEXAGON PLUG SCREW | |
| 52 | GASKET | |
| 53 | SLEEVE | |
| 54 | SPRING,OUTER | |
| 55 | SPRING,INNER | |
| 56 | RIVET 6X6 | |
| 57 | SCREW | |
| 58 | GEAR RACK | |
| 59 | PISTON | |
| 60 | SOCKET HEAD SCREW M12X30 | |
| 61 | SEALING PACKING | |
| 62 | O RING 60X3.1 | |
| 63 | SEAL PLATE | |
| 64 | SOCKET HEAD SCREW M8X30 | |
| 176 | GASKET13 | |
| 177 | HYDRALIC PIPE MOUTH |
