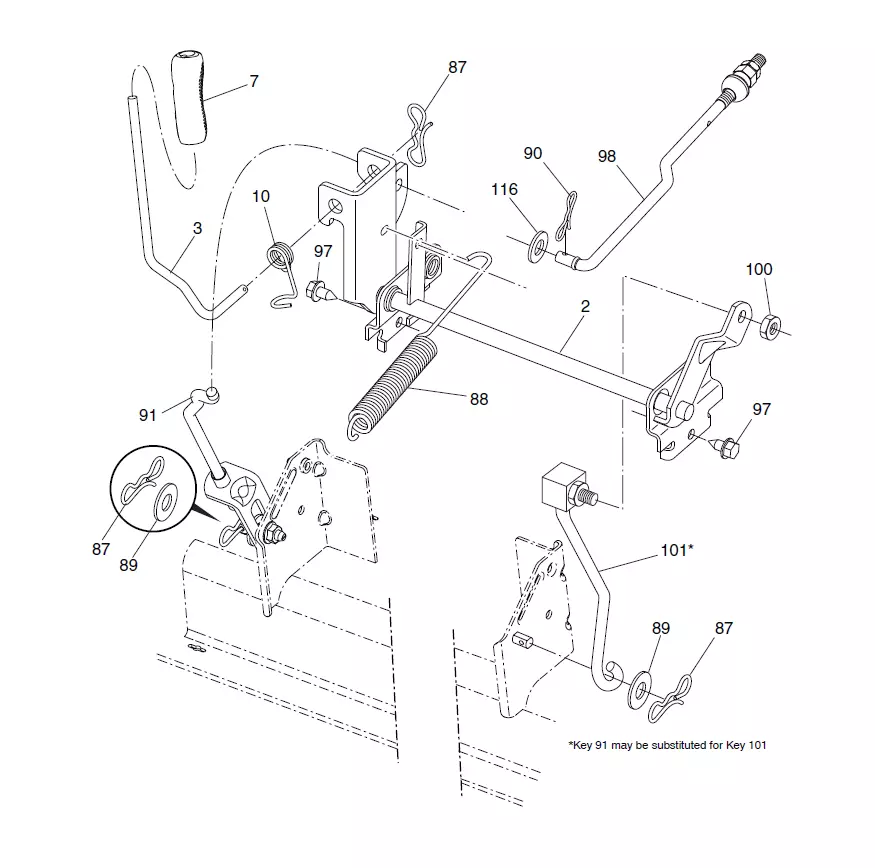

MOWER LIFT
MOWER LIFT
| П-п | Арт | Название |
|---|---|---|
| 2 | Shaft Asm., Lift | |
| 3 | Lever Asm., Lift RH | |
| 7 | Grip, Lever | |
| 10 | Spring Torsion | |
| 87 | Pin Cotter 7/16 Bow Tie Lock | |
| 88 | Spring Lift Assist | |
| 89 | Washer Clear Zinc | |
| 90 | Pin Cotter 5/16 Bow Tie Lock | |
| 91 | Link Lift Susp Mower Rear | |
| 97 | Screw 3/8-16 x .75 | |
| 98 | Link Lift Susp. Front Mower | |
| 100 | Nut Centerlock 3/8-16 | |
| 101 | Link Asm. Lift FXD | |
| 116 | Washer 15/32 x 15/16 x 16 Ga. |
