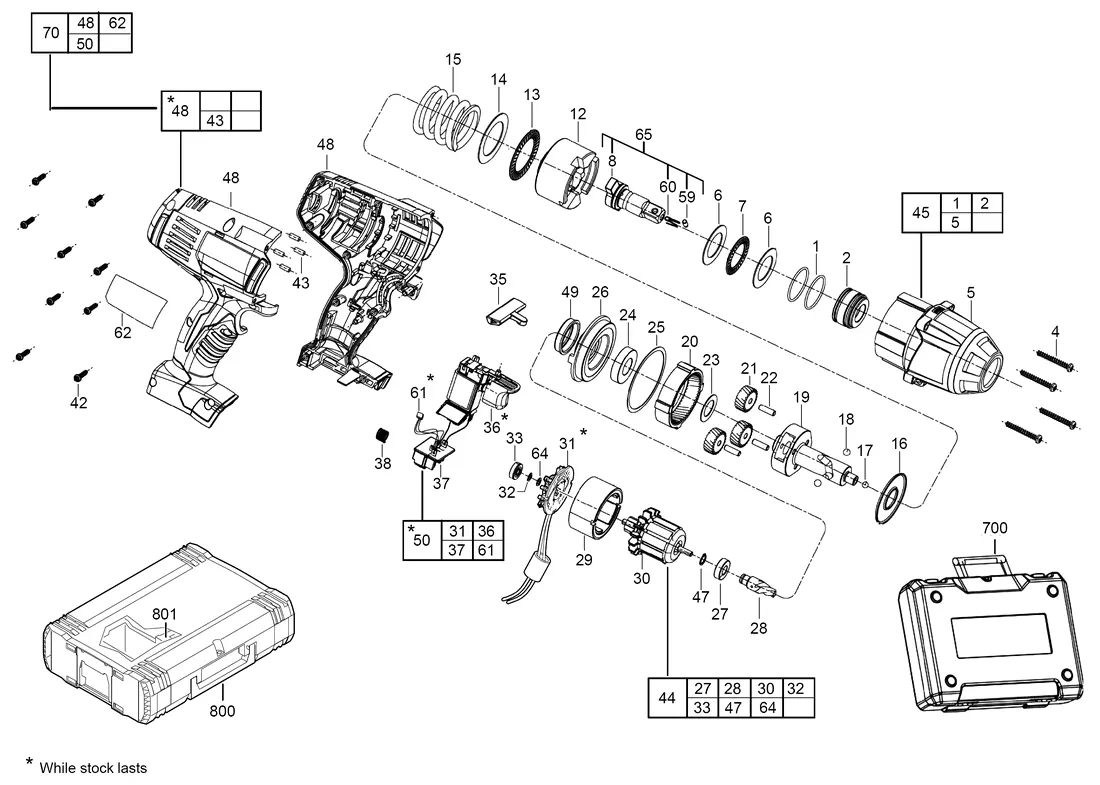

HD18 HIW-0 (4933416195)(4000431388)
HD18 HIW-0 (4933416195)(4000431388)
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
O-RING |
| 2 |  |
BUSH |
| 4 |  |
SCREW |
| 5 |  |
HOUSING CAP |
| 6 |  |
WASHER |
| 7 |  |
BALL BEARING |
| 8 |  |
ANVIL |
| 12 |  |
RAM |
| 13 |  |
BALL BEARING |
| 14 |  |
WASHER |
| 15 |  |
PRESSURE SPRING |
| 16 |  |
WASHER |
| 17 |  |
BALL |
| 18 |  |
BALL |
| 19 |  |
SPINDLE |
| 20 |  |
PLANET WHEEL |
| 21 |  |
PLANET GEAR |
| 22 |  |
PIN |
| 23 |  |
WASHER |
| 24 |  |
BALL BEARING |
| 25 |  |
GASKET |
| 26 |  |
MOTOR HOUSING |
| 27 |  |
BALL BEARING |
| 28 |  |
PINION |
| 29 |  |
ELECTRIC FIELD |
| 30 |  |
ARMATURE |
| 31 |  |
CARBON BRUSH SET |
| 32 |  |
WASHER |
| 33 |  |
BALL BEARING |
| 35 |  |
KNOB |
| 36 |  |
SWITCH |
| 37 |  |
CONNECTOR |
| 38 |  |
SPRING |
| 42 |  |
SCREW |
| 43 |  |
RUBBER BUFFER |
| 44 |  |
ARMATURE |
| 45 |  |
GEAR BOX HOUSING |
| 47 |  |
RETAINING SPRING |
| 48 |  |
HANDLE SET |
| 49 |  |
RUBBER CAP |
| 50 |  |
SWITCH |
| 59 |  |
LOCKING PIN |
| 60 |  |
SPRING ELEMENT |
| 61 |  |
ADAPTER |
| 62 |  |
RATING PLATE |
| 64 |  |
WASHER |
| 65 |  |
INTERLOCK ELEMENT |
| 70 |  |
HANDLE |
| 700 |  |
CARRYING CASE |
| 800 |  |
CARRYING CASE WITH FOAM INSERT MET |
| 801 |  |
INSERT |
