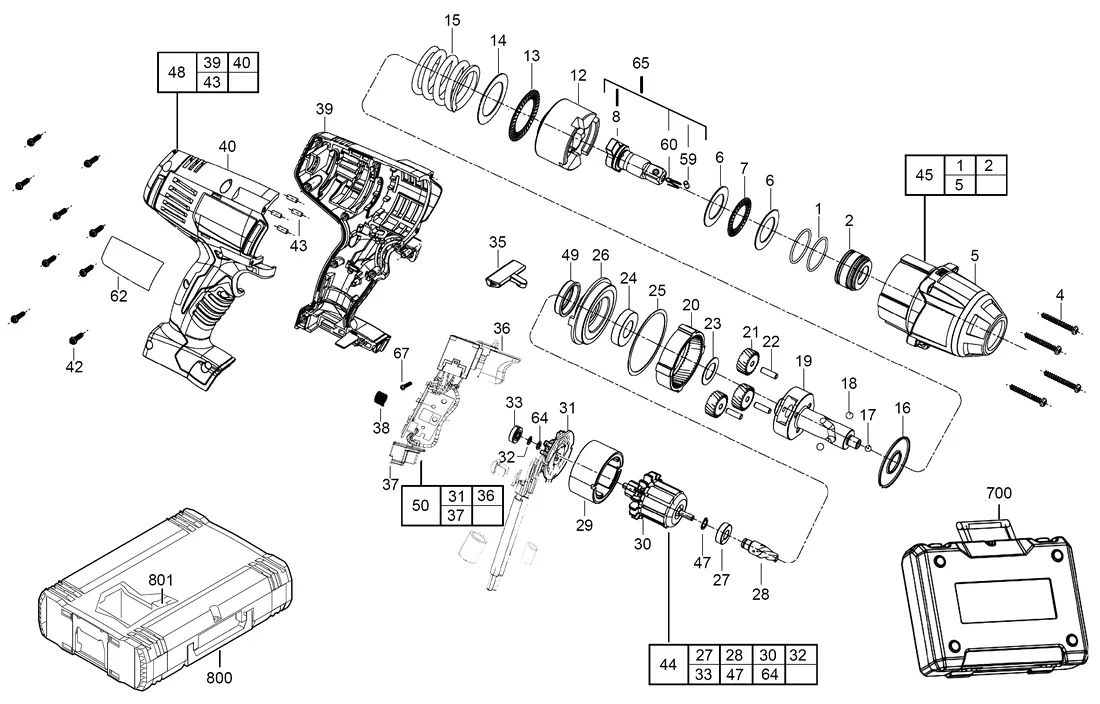

HD18 HIW-0 (4933416195)(4000447202)
HD18 HIW-0 (4933416195)(4000447202)
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
O-RING |
| 2 |  |
BUSH |
| 4 |  |
SCREW |
| 5 |  |
HOUSING CAP |
| 6 |  |
WASHER |
| 7 |  |
BALL BEARING |
| 8 |  |
ANVIL |
| 12 |  |
RAM |
| 13 |  |
BALL BEARING |
| 14 |  |
WASHER |
| 15 |  |
PRESSURE SPRING |
| 16 | WASHER | |
| 17 | BALL | |
| 18 | BALL | |
| 19 | SPINDLE | |
| 20 | PLANET WHEEL | |
| 21 | PLANET GEAR | |
| 22 | PIN | |
| 23 | WASHER | |
| 24 | BALL BEARING | |
| 25 | GASKET | |
| 26 | MOTOR HOUSING | |
| 27 | BALL BEARING | |
| 28 | PINION | |
| 29 | ELECTRIC FIELD | |
| 30 | ARMATURE | |
| 31 | CARBON BRUSH SET | |
| 32 | WASHER | |
| 33 | BALL BEARING | |
| 35 | KNOB | |
| 36 | PRINT.CURIUT SWITCH | |
| 37 | CONNECTOR | |
| 38 | PRESSURE SPRING | |
| 39 | COVER | |
| 40 | HOUSING | |
| 42 | SCREW | |
| 43 | RUBBER BUFFER | |
| 44 | ARMATURE | |
| 45 | GEAR BOX HOUSING | |
| 47 | RETAINING SPRING | |
| 48 | HANDLE COMPL. | |
| 49 | RUBBER CAP | |
| 50 | SWITCH KIT | |
| 59 | LOCKING PIN | |
| 60 | SPRING ELEMENT | |
| 62 | RATING PLATE | |
| 64 | WASHER | |
| 65 | INTERLOCK ELEMENT | |
| 67 | SCREW | |
| 700 | CARRYING CASE | |
| 800 | CARRYING CASE WITH FOAM INSERT MET | |
| 801 | INSERT |
