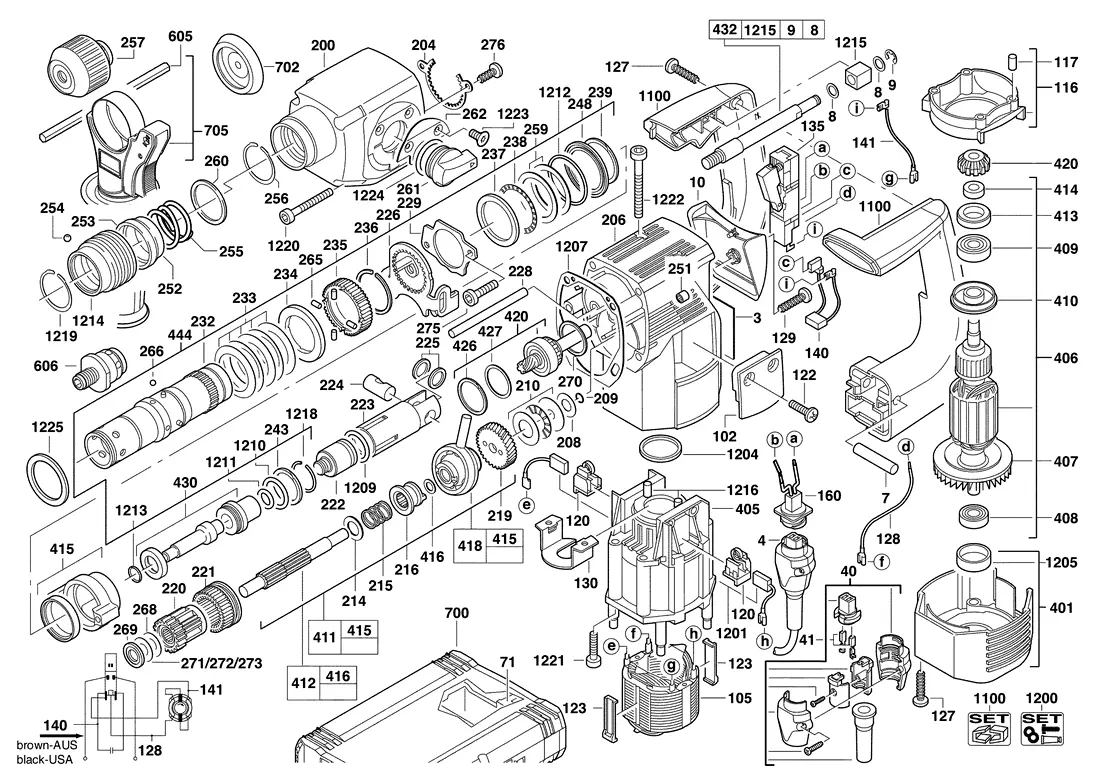

PLH32QEX (4933405613)(4000400063)
| П-п | Арт | Название |
|---|---|---|
| 3 | RATING PLATE | |
| 4 | CONNECTION CABLE | |
| 7 | GROOVED DOWEL PIN | |
| 8 | WASHER | |
| 9 | WASHER | |
| 10 | GEAR BOX COVER | |
| 40 | REPAIR KIT | |
| 41 | Cable socket p./10 | |
| 71 | INSERT | |
| 102 | COVER | |
| 105 | ELECTRIC FIELD | |
| 116 | AIR DEFLECTOR RING | |
| 117 | HOLDING-DOWN DEVICE | |
| 120 | BRUSH HOLDER | |
| 122 | SCREW | |
| 123 | CENTERING LEDGE | |
| 127 | SCREW N874101-1 SHR H-K4X18 T15 | |
| 128 | WIRE | |
| 129 | SCREW | |
| 130 | BEARING COVER | |
| 135 | SWITCH BOARD | |
| 140 | CAPACITOR | |
| 141 | WIRE | |
| 160 | INSERT | |
| 200 | GEAR BOX | |
| 204 | WASHER | |
| 206 | GEAR BOX | |
| 208 | WASHER | |
| 209 | O-RING N874701 5X1 | |
| 210 | THRUST BEARING | |
| 214 | DISC | |
| 215 | PRESSURE SPRING | |
| 216 | COUPLING SLEEVE | |
| 219 | REDUCT GEAR WHEEL | |
| 220 | PLANET GEAR | |
| 221 | INTERN.GEARED WHEEL | |
| 222 | PERCUSSION BODY | |
| 223 | CYLINDER | |
| 224 | CYLINDRICAL BOLT | |
| 225 | WASHER | |
| 226 | SLIDER | |
| 228 | PIN | |
| 229 | LATCH PLATE | |
| 232 | SPINDLE SLEEVE | |
| 233 | CUP SPRING | |
| 234 | CLUTCH DISC | |
| 235 | SPINDLE GEAR | |
| 236 | SPRING RING | |
| 237 | WASHER | |
| 238 | THRUST BEARING | |
| 239 | LOCKING WASHER | |
| 243 | THRUST COLLAR | |
| 248 | WASHER | |
| 251 | NEEDLE BEARING | |
| 252 | SLEEVE | |
| 253 | SLEEVE | |
| 254 | BALL | |
| 255 | PRESSURE SPRING | |
| 256 | SPRING RING | |
| 257 | ADAPTER | |
| 259 | WASHER | |
| 260 | WASHER | |
| 261 | SWITCH HANDLE | |
| 262 | LATCH PLATE | |
| 265 | CYLINDER PULLEY | |
| 266 | BALL | |
| 268 | DISC N874237 | |
| 269 | SPACER | |
| 270 | RING | |
| 271 | DISC N874237 | |
| 272 | DISC N874237 | |
| 275 | SCREW | |
| 276 | SCREW | |
| 401 | MOTOR COVER | |
| 405 | MOTOR HOUSING | |
| 406 | ARMATURE | |
| 407 | FAN | |
| 408 | GROOVED BALL BEAR. | |
| 409 | BALL BEARING | |
| 410 | INSULATING DISC | |
| 411 | REPAIR KIT | |
| 412 | REDUCT. GEAR SHAFT | |
| 413 | SEAL RING | |
| 414 | SPACER | |
| 415 | BUSHING | |
| 416 | DISC N874237 A 10,1X18X1 | |
| 418 | REPAIR KIT | |
| 420 | PINION SHAFT | |
| 426 | LOCKING RING | |
| 427 | DISC N874237 A16,1X26X1 | |
| 430 | REPAIR KIT | |
| 432 | REPAIR KIT | |
| 444 | SPINDLE SLEEVE | |
| 605 | DEPTH GAUGE | |
| 606 | CHUCK ADAPTER | |
| 700 | CARRYING CASE WITH FOAM INSERT MET | |
| 702 | DUST CATCHER Dust coll ring P1AM | |
| 705 | HANDLE PHE P1 A/M | |
| 1100 | HANDLE COMPL. | |
| 1200 | MAINTENANCE SET | |
| 1201 | CARBON BRUSH SET | |
| 1204 | O-RING | |
| 1205 | RUBBER SLEEVE | |
| 1207 | GASKET | |
| 1209 | SEAL RING | |
| 1210 | SEAL RING | |
| 1211 | O-RING | |
| 1212 | O-RING | |
| 1213 | SEAL RING | |
| 1214 | SLEEVE | |
| 1215 | DAMPING ELEMENT | |
| 1216 | HOLDING-DOWN DEVICE | |
| 1218 | RING | |
| 1220 | SCREW | |
| 1221 | SCREW | |
| 1222 | SCREW | |
| 1223 | SCREW | |
| 1224 | O-RING | |
| 1225 | FELT WASHER |
