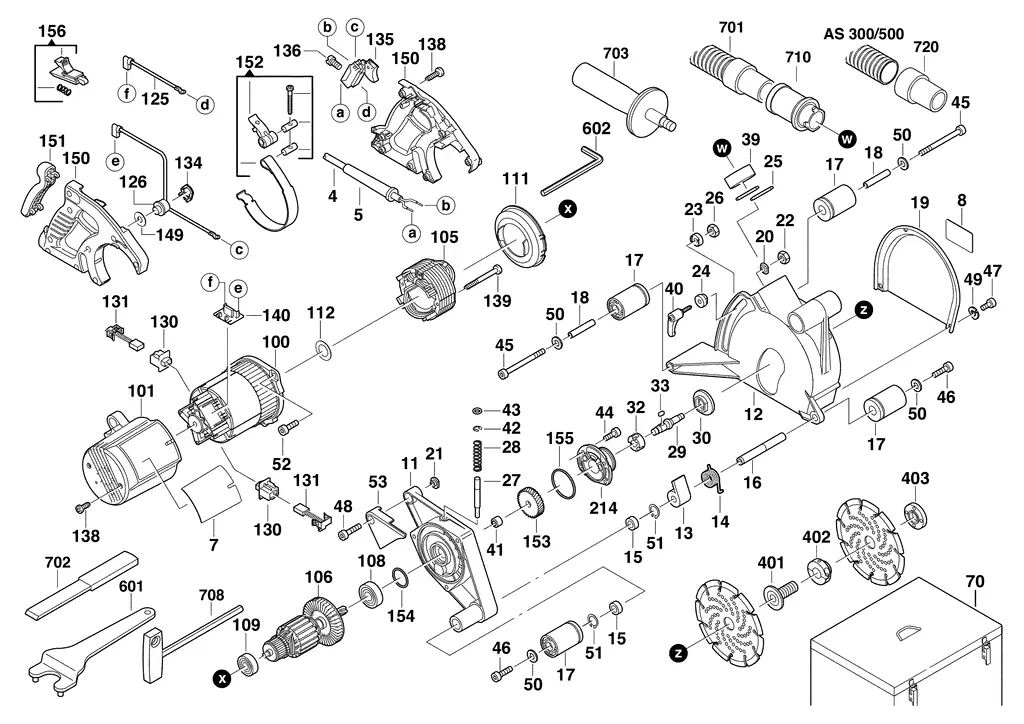

WCS45 (4000393004)
WCS45 (4000393004)
| П-п | Арт | Название |
|---|---|---|
| 4 | CONNECTION CABLE | |
| 5 | CABLE CLAMP | |
| 7 | TYPE PLATE | |
| 8 | TYPE PLATE | |
| 11 | DRIVING PLATE | |
| 12 | GUARD CAP | |
| 13 | COVER | |
| 14 | SPRING | |
| 15 | BUSH | |
| 16 | AXLE | |
| 17 | ROLL | |
| 18 | AXLE | |
| 19 | COVER PLATE | |
| 20 | WASHER | |
| 21 | SPACER | |
| 22 | NUT D 985 M 6 GAL | |
| 23 | WASHER | |
| 24 | BUSH | |
| 25 | RULER THRUST | |
| 26 | NUT D 934 M 6 | |
| 27 | LOCKING ROD | |
| 28 | PRESSURE SPRING | |
| 29 | DRIVING SHAFT | |
| 30 | CLAMPING FLANGE | |
| 32 | BUSH | |
| 33 | KEY | |
| 39 | SLEEVE | |
| 40 | CLAMPING LEVER | |
| 41 | NEEDLE BEARING N874989 HK 1010 | |
| 42 |  |
SHAFT CLIP |
| 43 |  |
O-RING |
| 44 |  |
SCREW |
| 45 |  |
SCREW D 912 M 4X10 SSI |
| 46 |  |
SCREW D912 M6X12 |
| 47 |  |
SCREW |
| 48 |  |
SCREW D 912 M 4X10 SSI |
| 49 |  |
SPRING WASHER |
| 50 |  |
SEALING WASHER |
| 51 |  |
RING D471 12X1 |
| 52 |  |
SCREW |
| 53 |  |
COVER |
| 70 |  |
CARRY.C.W.COVER BOX MET |
| 100 |  |
HOUSING |
| 101 |  |
BONNET |
| 105 |  |
ELECTRIC FIELD |
| 106 |  |
ARMATURE |
| 108 |  |
BALL BEARING |
| 109 |  |
BALL BEARING |
| 111 |  |
AIR DEFLECTOR RING |
| 112 |  |
WASHER |
| 125 |  |
CABLE |
| 126 |  |
SWITCH |
| 130 |  |
BRUSH HOLDER |
| 131 |  |
CARBON BRUSH |
| 134 |  |
SWITCH RETAINER |
| 135 |  |
SWITCH |
| 136 |  |
SCREW |
| 138 |  |
SCREW |
| 140 |  |
CAPACITOR |
| 149 |  |
SEALING WASHER |
| 150 |  |
HANDLE COMPL. |
| 151 |  |
HANDLE |
| 152 |  |
STRIP-BAND |
| 153 |  |
GEAR |
| 154 |  |
O-RING |
| 155 |  |
O-RING |
| 156 |  |
SLIDER |
| 200 |  |
MOTOR ASSEMBLY |
| 214 |  |
BEARING END PLATE |
| 401 |  |
Location bolt |
| 402 |  |
CLAMPING NUT |
| 403 |  |
ADJUSTING LOCK |
| 601 |  |
PIN SPANNER WSP1 A/M |
| 602 |  |
SCREW DRIVER |
| 701 |  |
TUYAU ASPIRATION 4M |
| 702 |  |
BREAK-OUT CHISEL DME P1 AEG |
| 703 |  |
HANDLE 180-230/WP/WSA P1A/M |
| 708 |  |
T-SPANNER |
| 710 |  |
ADAPTER DME P1 AEG |
| 720 |  |
NOSEPIECE |
