Starter Assembly & Blower Housing

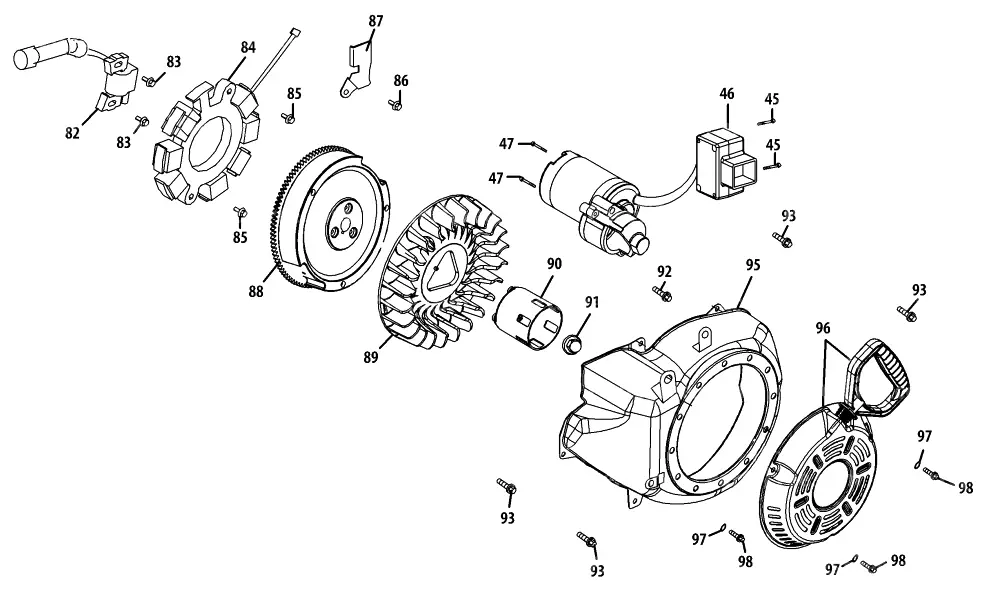

Starter Assembly & Blower Housing
| П-п | Арт | Название |
|---|---|---|
| 45 | Screw M4 X 55 | |
| 46 | Electric Starter | |
| 47 | Bolt M8?55 | |
| 82 | (replaces 951-11305) Ignition Coil Assembly | |
| 83 | Ignition Coil Bolt | |
| 84 | Alternator Assembly | |
| 85 | Bolt M6?30 | |
| 86 | Bolt M6?8 | |
| 87 | Alternator Wire Clamp Bracket | |
| 88 | Flywheel | |
| 89 | Cooling Fan | |
| 90 | Starter Cup | |
| 91 | Flywheel Nut, M14?1.5 | |
| 92 | Bolt M6?16 | |
| 93 | Bolt M6?12 | |
| 95 | Blower Housing | |
| 96 | Recoil Starter Assembly | |
| 97 | Flat Washer | |
| 98 | Bolt M6?10 |
