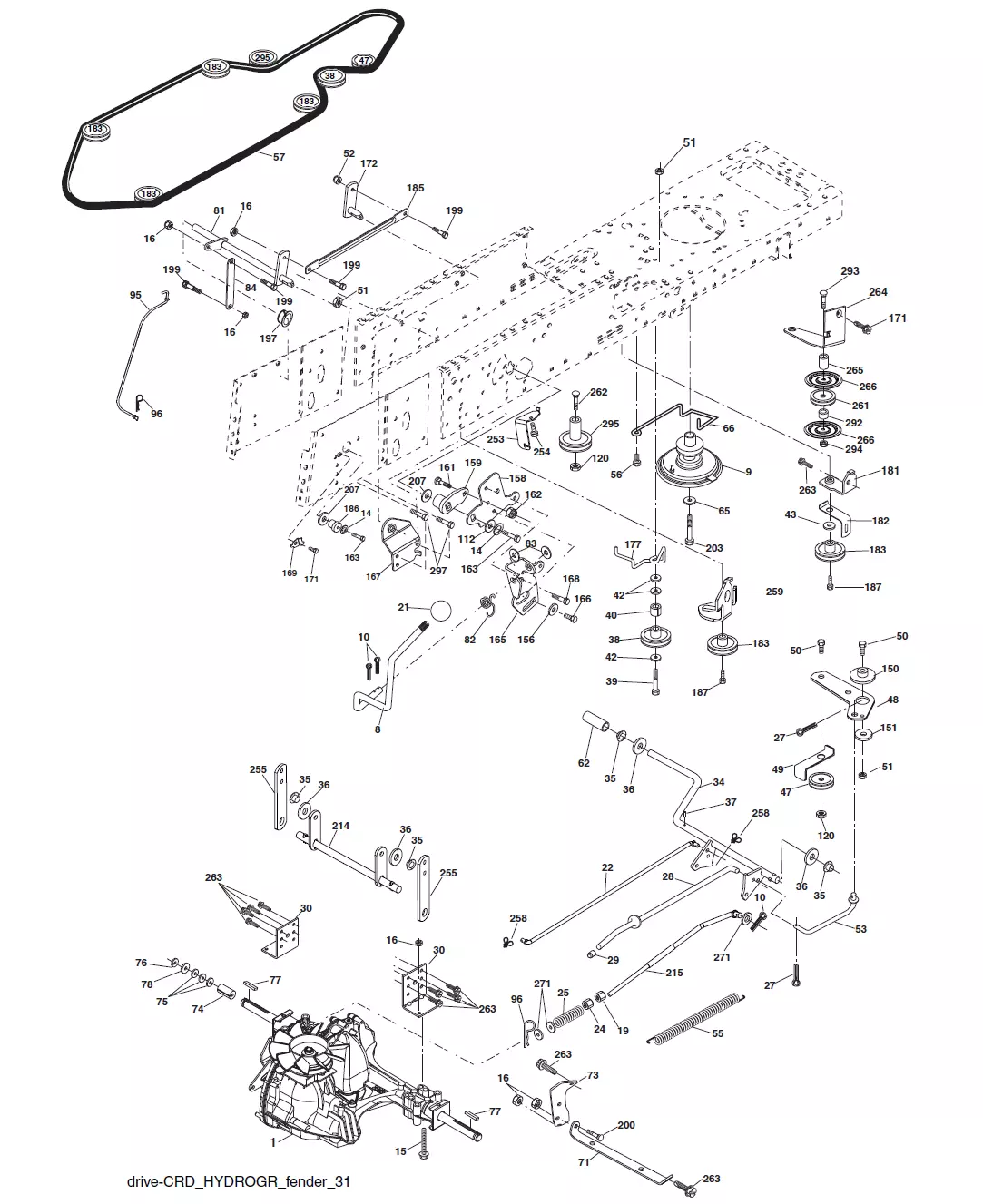

| П-п | Арт | Название |
|---|---|---|
| 1 | Transaxle Hydro Gear 321-0510 | |
| 8 | Rod, Shift | |
| 9 | Clutch Asm Noram | |
| 10 | Pin, Cotter 1/8 x 1 | |
| 14 | Washer, Lock Hvy Helical | |
| 15 | Bolt Hex FGHD 5/16-18 x Gr. 5 | |
| 16 | Nut Lock Hex W/Ins 5/16-18 unc | |
| 19 | Nut Lock Hex W/Ins 3/8-16 unc | |
| 21 | Knob | |
| 22 | Rod, Brake | |
| 24 | Nut | |
| 25 | Spring, Rod, Brake | |
| 27 | Pin, Cotter 1/8 x 3/4 | |
| 28 | Rod, Parking Brake | |
| 29 | Cap, Parking Brake | |
| 30 | Bracket, Mfg. Transaxle | |
| 34 | Shaft, Asm Pedal Foot CRD | |
| 35 | Bearing, Nylon | |
| 36 | Washer 21/32 x 1 x 16 Ga. | |
| 37 | Pin, Roll 3/16 x 1\\\" | |
| 38 | Pulley Flat Composite 3.06\\\" | |
| 39 | Bolt Fin Hex 3/8-16 unc x 2-3/4 | |
| 40 | Spacer, Split 395 x 59 Bzp | |
| 42 | Washer 13/32 x 13/16 x 12 Ga. | |
| 43 | Washer 11/32 x 5/8 x 12 Ga. | |
| 47 | Pulley, Idler, V Groove Plasitc | |
| 48 | Bellcrank Clutch Grnd Drv | |
| 49 | Retainer, Belt Style Spring | |
| 50 | Bolt 3/8-16 x 1-1/2 Gr. 5 | |
| 51 | Nut, Crownlock 3/8-16 unc | |
| 52 | Nut Crownlock 5/16-18 | |
| 53 | Link, Clutch 7.66 | |
| 55 | Spring, Return, Clutch | |
| 56 | Screw 3/8-16 x 1-1/4 | |
| 57 | V-Belt Kev 112\\\" 0650 CRD | |
| 62 | Cover, Pedal | |
| 65 | Washer | |
| 66 | Keeper, Belt Engine F-Proof | |
| 71 | Strap, Torque, LH | |
| 73 | Strap, Torque, RH | |
| 74 | Spacer, Split | |
| 75 | Washer 25/32 x 1-1/4 x 16 Ga. | |
| 76 | Ring, E | |
| 77 | Key, Square | |
| 78 | Washer 25/32 x 1-5/8 x 16 Ga. | |
| 81 | Asm, Shaft,Cross Rear | |
| 82 | Spring, Torsion | |
| 83 | Washer 17/32 x 3/4 x 16 Ga. | |
| 84 | Link, Transaxle | |
| 95 | Control Asm Bypass Hydro | |
| 96 | Spring, Retainer 1” | |
| 112 | Washer 9/32 x 3/4 x 10 Ga. | |
| 120 | Nut Lock Flg. 3/8-16 unc | |
| 150 | Bushing, Bellcrank Grnd Dr. | |
| 151 | Washer 13/32 x 2 x 10 Ga. | |
| 156 | Washer Srrted 5/16 ID x 1.125 | |
| 158 | Bracket Shift Mount | |
| 159 | Hub Shift | |
| 161 | Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5 | |
| 162 | Nut Crownlock 1/4-20 unc | |
| 163 | Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 | |
| 165 | Bracket Pivot Lever | |
| 166 | Screw 5/16-18 x 5/8 | |
| 167 | Bracket Support Shift CRD | |
| 168 | Bolt Shoulder 5/16-18 x .561 | |
| 169 | Plate Fastening Lt | |
| 171 | Screw Thdrol 3/8-16 x 1/2 Ty-Tt | |
| 172 | Shaft Asm Shifter Frt CRD | |
| 177 | Keeper Flat Idler 3.06\\\" CRD | |
| 181 | Bracket Idler Ground Drive CRD | |
| 182 | Keeper Belt 2.5\\\" Od V-Idler CRD | |
| 183 | Pulley V-Idler GRND. DR. | |
| 185 | Link Shift | |
| 186 | Hub Tapered Round CRD | |
| 187 | Screw Thdrol 5/16-18 x 1.25 | |
| 197 | Nyliner Snap-In 5/8 | |
| 199 | Bolt Shoulder 5/16-18 unc | |
| 200 | Bolt RDHD SQNK 5/16-18 x 1 | |
| 203 | Bolt Hex 7/16-20 x 5 | |
| 207 | Washer Nylon Rear | |
| 214 | Shaft Asm. Brake | |
| 215 | Rod Brake Hydro | |
| 253 | Bracket Cable Chassis | |
| 254 | Screw 3/8-16 x 1 | |
| 255 | Brace Shaft Brake Mtg. | |
| 258 | Clip Retainer | |
| 259 | Bracket Pulley | |
| 261 | Pulley Idler | |
| 262 | Bolt 3/8-16 x 2-3/4 Gr. 5 | |
| 263 | Screw 3/8-16 x 3/4 | |
| 264 | Bracket Clutch Mounting | |
| 265 | Spacer Idler Chassis | |
| 266 | Shield Idler Mower | |
| 271 | Washer 13/32 x 7/8 x 16 Ga. | |
| 292 | Spacer | |
| 293 | Bolt 3/8-16 x 3-1/2 | |
| 294 | Nut Jam 3/8-16 | |
| 295 | Pulley Idler | |
| 297 | Screw Hexwsh Thdr. 3/8-16 x 5/8 |
