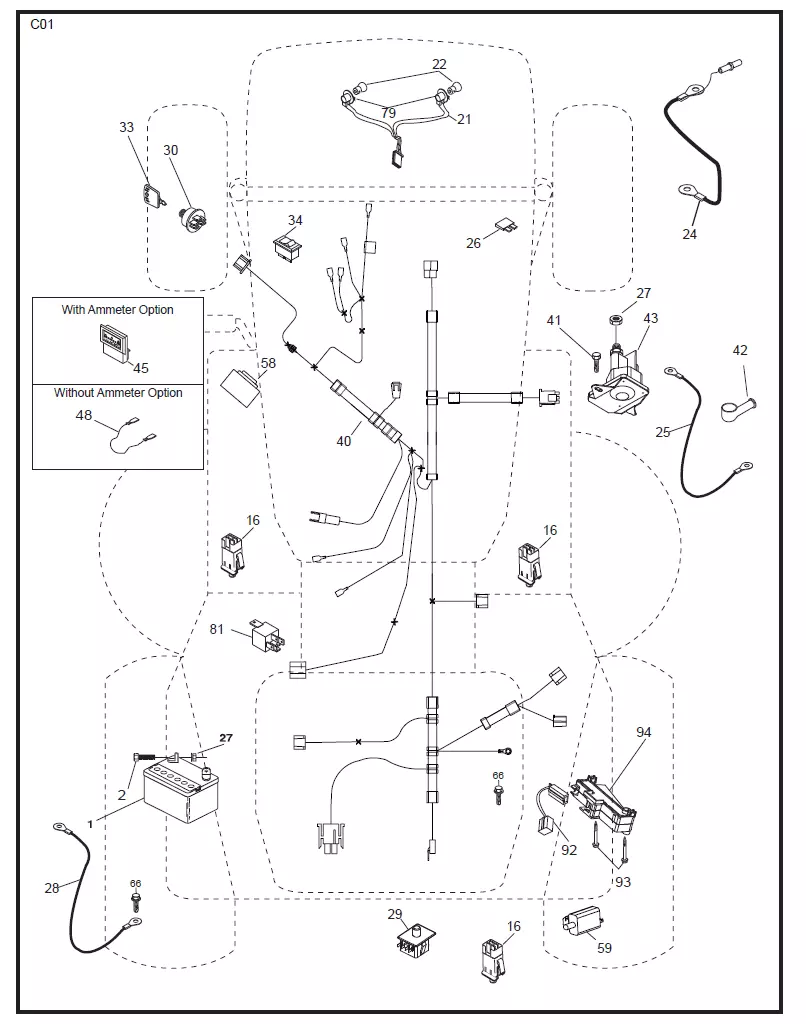

ELECTRICAL
| П-п | Арт | Название |
|---|---|---|
| 1 | Battery | |
| 2 | Bolt Hex Hd 1/4-20 unc x 3/4 | |
| 16 | Switch Interlock | |
| 21 | Harness Asm Light W/4152J | |
| 22 | Bulb Light #1156 | |
| 24 | Cable Starter 6 Ga. 11\\\" Red | |
| 25 | Cable Battery Crd 56\\\" Red | |
| 26 | Fuse | |
| 27 | Nut Keps Hex 1/4-20 unc | |
| 28 | Cable Ground 6 Ga. 18\\\" Black | |
| 29 | Switch Seat | |
| 30 | Switch Ignition | |
| 33 | Key Ignition | |
| 34 | Switch Light | |
| 40 | Harness Ignition | |
| 41 | Bolt Flk Fin Hex 1/4-20 unc x 1/2 | |
| 42 | Cover Terminal Red | |
| 43 | Solenoid | |
| 48 | Adapter Ammeter Rectangular | |
| 58 | Buzzer Crd | |
| 59 | Switch FBI CRD | |
| 66 | Screw Thdrol 3/8-16 x 1/2 Ty-Tt | |
| 79 | Socket Asm Bulb Twistlock | |
| 81 | Relay Asm | |
| 92 | Harness Pigtail | |
| 93 | Screw Plastite 10-14 x 2.0 | |
| 94 | Module Reverse |
