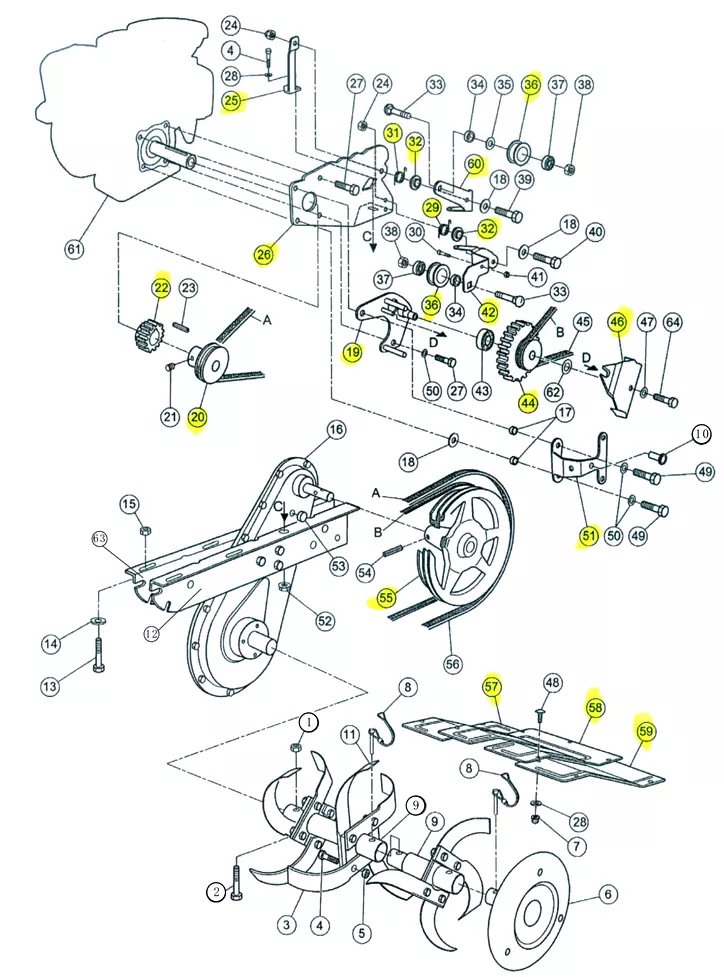

Ножи, Привод ножей
Ножи, Привод ножей
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
Hexagon nut with flange M8 |
| 2 |  |
Hexagon head bolts M8X45 |
| 3 |  |
Фреза левая 3(а) T6,5/900 FB PG |
| 4 |  |
Hexagon head bolts M8X20 |
| 5 |  |
Hexagon head nuts M8 |
| 6 |  |
Disc |
| 7 | Hexagon nut with flange M6 | |
| 8 | Крепеж фрез 8(а) T6,5/900 FB PG | |
| 9 | Blade cylinder | |
| 10 | Riveting kit | |
| 11 | Фреза правая 11(а) T6,5/900 FB PG | |
| 12 | Engine supportor(Left) | |
| 13 | Hexagon head bolts M8X40 | |
| 14 | Washer φ8 | |
| 15 | Hexagon nut with flange M8 | |
| 16 | Редуктор в сборе 16(а) T6,5/900 FB PG | |
| 17 | Washer φ8Xφ8.5X6 | |
| 18 | Big washer φ25Xφ8.5X2.5 | |
| 19 | Reverse supportor | |
| 20 | Шкив(маленький) 20(а) T6,5/900 FB PG | |
| 21 | fastness bolt M6X18 | |
| 22 | Шестерня 22(а) T6,5/900 FB PG | |
| 23 | Spline 5X5X25 | |
| 24 | Hexagon nut with flange M8 | |
| 25 | Supportor frame | |
| 26 | Belt cover panel | |
| 27 | Hexagon head bolts M8X20 | |
| 28 | Washer φ6 | |
| 29 | Tentional spring | |
| 30 | Bolt M6X10 | |
| 31 | Tentional spring | |
| 32 | Bushing block | |
| 33 | Bolt M10X30 | |
| 34 | Bushing block φ20Xφ10.5X8.5 | |
| 35 | Washer φ10 | |
| 36 | Натяжной ролик | |
| 37 | Bearing 6300 | |
| 38 | Hexagon nut M10 | |
| 39 | Hexagon nut M8X30 | |
| 40 | Hexagon nut M8X30 | |
| 41 | Hexagon nut with flange M6 | |
| 42 | Tentional pulley supportor | |
| 43 | Bearing 6201 | |
| 44 | Шестерня 44(а) T6,5/900 FB PG | |
| 45 | Ремень заднего хода 45(а) T6,5/900 FB PG (10*940Li) | |
| 46 | Reverse tensional block | |
| 47 | Spring washer φ6 | |
| 48 | Nut M6X15 | |
| 49 | Hexagon head bolts M8X20 | |
| 50 | Washer φ8 | |
| 51 | Belt cover front supportor | |
| 52 | Hexagon nut with flange M8 | |
| 53 | Oil plug | |
| 54 | Driven shaft pulley tube | |
| 55 | Шкив (большой) 55(а) T6,5/900 FB PG | |
| 56 | Ремень переднего хода 56(а) T6,5/900 FB PG (13*1092Li) | |
| 57 | Outside fender(right) | |
| 58 | Inside fender | |
| 59 | Outside fender(left) | |
| 60 | Reverse tensional pulley supportor | |
| 61 | 168F Gasoine engine | |
| 62 | Adjusted washer φ20Xφ12.5X0.2 | |
| 63 | Engine supportor(Right) | |
| 64 | Hexagon head bolts M6X15 |
