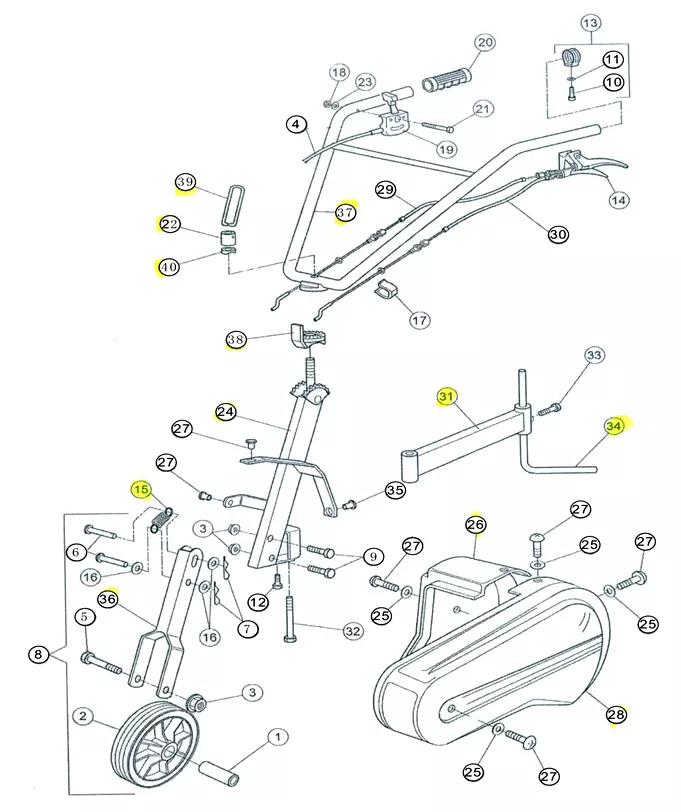

Система управления
Система управления
| П-п | Арт | Название |
|---|---|---|
| 1 | Wheel bushing | |
| 2 | Колесо транспортировочное 2(б) T6,5/900 FB PG | |
| 3 | Hexagon nut with flange M10 | |
| 4 | Трос газа 4(б) T6,5/900 FB PG | |
| 5 | Hexagon bolts M10X80 | |
| 6 | B Pin φ10X50 | |
| 7 | β Pin φ2.5 | |
| 8 | Wheel assy | |
| 9 | Hexagon head bolts M10X45 | |
| 10 | Hexagon head bolts M6X30 | |
| 11 | Hexagon head bolts M6 | |
| 12 | Hexagon head bolts M10X25 | |
| 13 | anchor ear assy | |
| 14 | Ручка сцепления 14 T6,5/900 FB PG | |
| 15 | Wheel spring | |
| 16 | Washer φ10 | |
| 17 | Handle bar wire nail | |
| 18 | Nut M6 | |
| 19 | Рычаг газа 21(б) T6,5/900 FB PG | |
| 20 | Handle bar rubber | |
| 21 | hexagon socket screw M6X45 | |
| 22 | lock sleeve | |
| 23 | Washer φ6 | |
| 24 | Handle bar supportor weld assembly | |
| 25 | Washer φ6 | |
| 26 | Hangle bar supportor decorating plate | |
| 27 | Cross recessed round head screwsM6X20 | |
| 28 | Защита ремней 28(б) T6,5/900 FB PG | |
| 29 | Трос 29(б) T6,5/900 FB PG | |
| 30 | Трос 30(б) T6,5/900 FB PG | |
| 31 | Крепление заглубителя(б) 31 T6,5/900 FB PG | |
| 32 | Hexagon head bolts M12X90 | |
| 33 | Болт крепления заглубителя 33(б) T6,5/900 FB PG | |
| 34 | Заглубитель 34 (б) T6,5/900 FB PG | |
| 35 | Cross recessed round head screwsM6X20 | |
| 36 | Натяжной ролик 36(а) T6,5/900 FB PG | |
| 37 | Handle bar weld assembly | |
| 38 | Skief teeth (middle) | |
| 39 | Round locking knob | |
| 40 | Lock bar washer |
