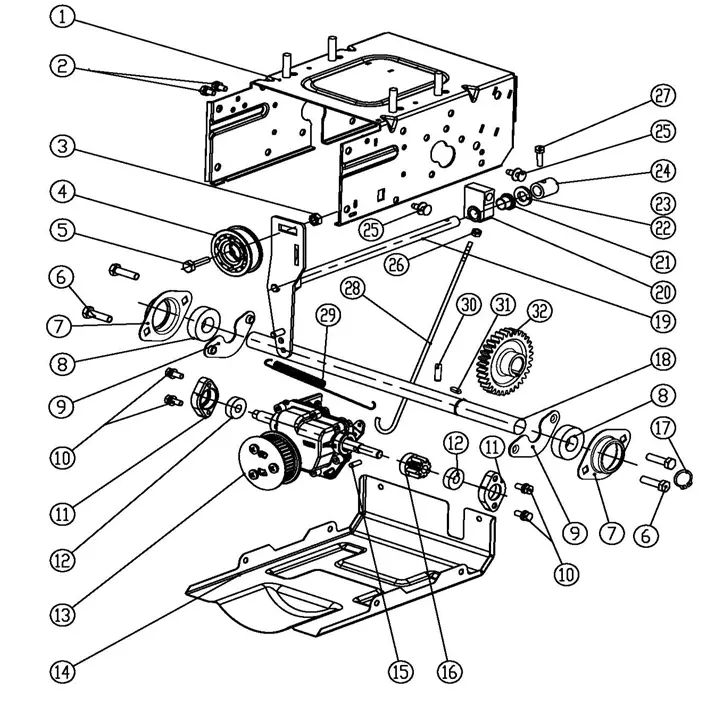

| П-п | Арт | Название |
|---|---|---|
| 1 | transimission box | |
| 2 | bolt M6x12 | |
| 3 | hex locking nut M8 | |
| 4 | small tension pulley | |
| 5 | hex bolt M8x30 | |
| 6 | hex screw M8x12 | |
| 7 | shaft base | |
| 8 | ball bearing 6004 | |
| 9 | splint nut | |
| 10 | bolt M6x16 | |
| 11 | inner bearing seat | |
| 12 | ball bearing 6000 | |
| 13 | worm case | |
| 14 | box plate | |
| 15 | rear gear shaft | |
| 16 | transimission gear | |
| 17 | circlip 20 | |
| 18 | drive shaft | |
| 19 | tension parts | |
| 20 | fixing seat for shaft | |
| 21 | plastic bushing | |
| 22 | washer ¢13 | |
| 23 | washer 12 | |
| 24 | shaft set bushing | |
| 25 | plastic cap ¢8 | |
| 26 | hex locking nut M5 | |
| 27 | hex bolt M6x20 | |
| 28 | pull rod | |
| 29 | spring2 | |
| 30 | pin ¢6X30 | |
| 31 | flat key B6X6X22 | |
| 32 | drive gear |
