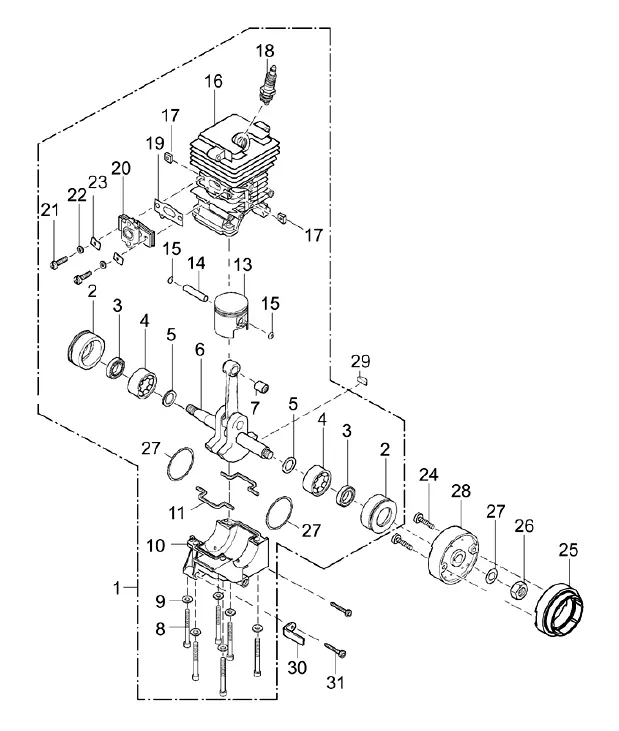

Crank case, crankshaft, piston
Crank case, crankshaft, piston
| П-п | Арт | Название |
|---|---|---|
| 1 | Engine incl. (-> 1 - 23 | |
| 2 | Sleeve | |
| 3 | Oil seal | |
| 4 | Ball bearing | |
| 5 | Washer | |
| 6 | Crankshaft | |
| 7 | Needle bearing | |
| 8 | Screw | |
| 9 | Washer | |
| 10 | Crankcase | |
| 11 | Crankcase gasket | |
| 12 | Ring | |
| 13 | Piston | |
| 14 | Piston pin | |
| 15 | Piston pin circlip | |
| 16 | Cylinder | |
| 17 | Nut | |
| 18 | Spark plug | |
| 19 | Manifold gasket | |
| 20 | Manifold | |
| 21 | Screw | |
| 22 | Tension washer | |
| 23 | Flap | |
| 24 | Screw | |
| 25 | Anwurfrolle | |
| 26 | Nut | |
| 27 | Circlip | |
| 28 | Flywheel | |
| 29 | Spring washer | |
| 30 | Fixing plate | |
| 31 | Screw |
