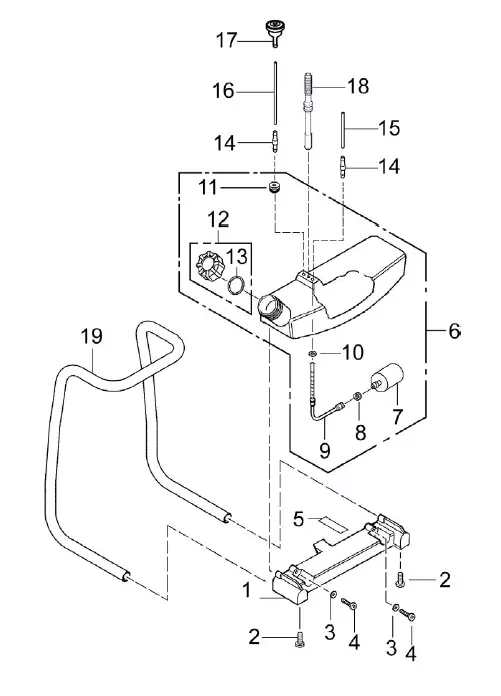

Fuel tank, bottom plate
| П-п | Арт | Название |
|---|---|---|
| 1 | Bottom plate | |
| 2 | Screw | |
| 3 | Washer | |
| 4 | Screw | |
| 5 | Felt | |
| 6 | Fuel tank incl. (-> 6 - 13 | |
| 7 | Fuel pick-up | |
| 8 | Grommet | |
| 9 | Fuel hose | |
| 10 | Grommet | |
| 11 | Hose fitting | |
| 12 | Tank cap, compl. incl. (-> 12, 13 | |
| 13 | Lid gasket | |
| 14 | Socket | |
| 15 | Hose 75 mm | |
| 16 | Hose 240 mm | |
| 17 | Ventilation socket | |
| 18 | Fuel hose | |
| 19 | Handle loop |
