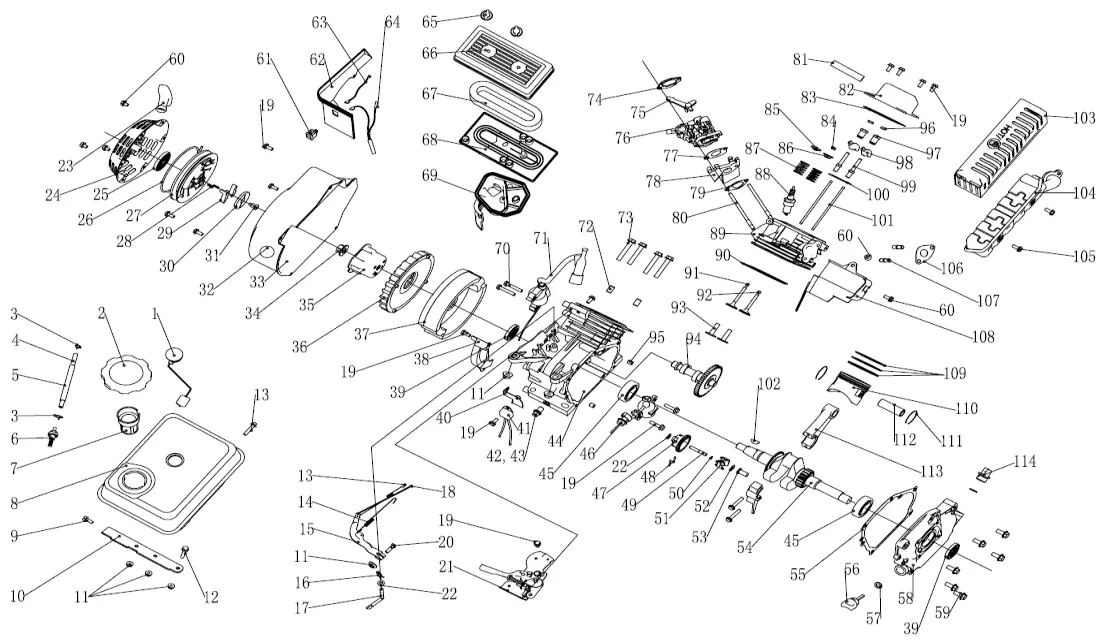

| П-п | Арт | Название |
|---|---|---|
| 1 | Fuel meter | |
| 2 | Fuel tank cap | |
| 3 | Fuel hose clip | |
| 4 | Fuel hose | |
| 5 | Fuel hose protector | |
| 6 | Fuel outlet joint | |
| 7 | Fuel filter | |
| 8 | Fuel tank | |
| 9 | Screw M6x15 | |
| 10 | Fuel tank support | |
| 11 | Nut M6 | |
| 12 | Screw M6x29 | |
| 13 | Carburetor spring | |
| 14 | Governor spring | |
| 15 | Governor arm | |
| 16 | Cotter pin | |
| 17 | Governor shaft | |
| 18 | Carburetor connecting rod | |
| 19 | Screw M6x12 | |
| 20 | Governor arm screw | |
| 21 | Throttle control rack | |
| 22 | Governor shaft washer | |
| 23 | Rope handle | |
| 24 | Recoil starter case | |
| 25 | Recoil starter spring | |
| 26 | Rope | |
| 27 | Drum sheave | |
| 27 | Drum sheave | |
| 28 | Pawl spring | |
| 28 | Pawl spring | |
| 29 | Pawl | |
| 29 | Pawl | |
| 30 | Pawl guide | |
| 30 | Pawl guide | |
| 30-A | Pawl guide spring | |
| 31 | Pawl guide setting screw | |
| 31 | Pawl guide setting screw | |
| 32 | Fan case Rubber plug | |
| 33 | Fan case | |
| 34 | Flywheel nut M14 | |
| 35 | Starting hub | |
| 35 | Starting hub | |
| 36 | Cooling fan | |
| 37 | Flywheel | |
| 38 | Air shroud （Ⅱ） | |
| 39 | Oil seal | |
| 40 | Diode rack | |
| 41 | Diode | |
| 42 | Drain plug | |
| 43 | Drain plug washer | |
| 44 | Crankcase | |
| 45 | Ball bearing | |
| 46 | Oil level sensor | |
| 47 | Governing gear | |
| 48 | Flyweight pin | |
| 49 | Governing gear shaft | |
| 50 | Governing gear shaft clip | |
| 51 | Flyweight | |
| 52 | Governing gear inner Washer | |
| 53 | Governing gear shaft Collar | |
| 54 | Crankshaft assembly | |
| 55 | Crankcase gasket | |
| 56 | Oil gauge | |
| 57 | Oil gauge seal | |
| 58 | Crankcase cover | |
| 59 | Screw M8x32 | |
| 60 | Screw M6x8 | |
| 61 | Engine switch | |
| 62 | Plastic cover | |
| 63 | Wire | |
| 64 | Stop wire assembly | |
| 65 | Air cleaner cover nut | |
| 66 | Air cleaner cover | |
| 67 | Air cleaner element | |
| 68 | Element separator | |
| 69 | Air cleaner base | |
| 70 | T.C.I. Unit Screw | |
| 71 | T.C.I. Unit | |
| 72 | Cylinder gasket Dowel pin | |
| 73 | Cylinder screw M8x55 | |
| 74 | Air cleaner gasket | |
| 75 | Choke lever | |
| 76 | Carburetor | |
| 77 | Carburetor gasket | |
| 78 | Carburetor insulator | |
| 79 | insulator gasket | |
| 80 | Carburetor bolt M6x113 | |
| 81 | Breather tube | |
| 82 | Cylinder head cover | |
| 83 | Cylinder head cover gasket | |
| 84 | Exhaust valve cap | |
| 85 | Intake valve spring retainer | |
| 86 | Exhaust valve spring retainer | |
| 87 | Valve spring | |
| 88 | Spark plug | |
| 89 | Cylinder head assembly | |
| 90 | Cylinder gasket | |
| 91 | Intake valve | |
| 92 | Exhaust valve | |
| 93 | Valve lifter | |
| 94 | Camshaft assembly | |
| 94 | Camshaft assembly | |
| 95 | Crankcase gasket Dowel pin | |
| 96 | Valve clearance adjusting nut | |
| 97 | Rocker arm seat | |
| 98 | Rocker arm | |
| 99 | Rocker arm bolt | |
| 100 | Push rod guide | |
| 101 | Push rod | |
| 102 | Crankshaft key | |
| 103 | Muffler cover | |
| 104 | Muffler | |
| 105 | Screw M6x10 | |
| 106 | Exhaust gasket | |
| 107 | Exhaust bolt | |
| 108 | Air shroud | |
| 109 | Piston ring set | |
| 110 | Piston | |
| 111 | Piston pin circlip | |
| 112 | Piston pin | |
| 113 | Connecting rod assembly | |
| 114 | Oil filling plug |
