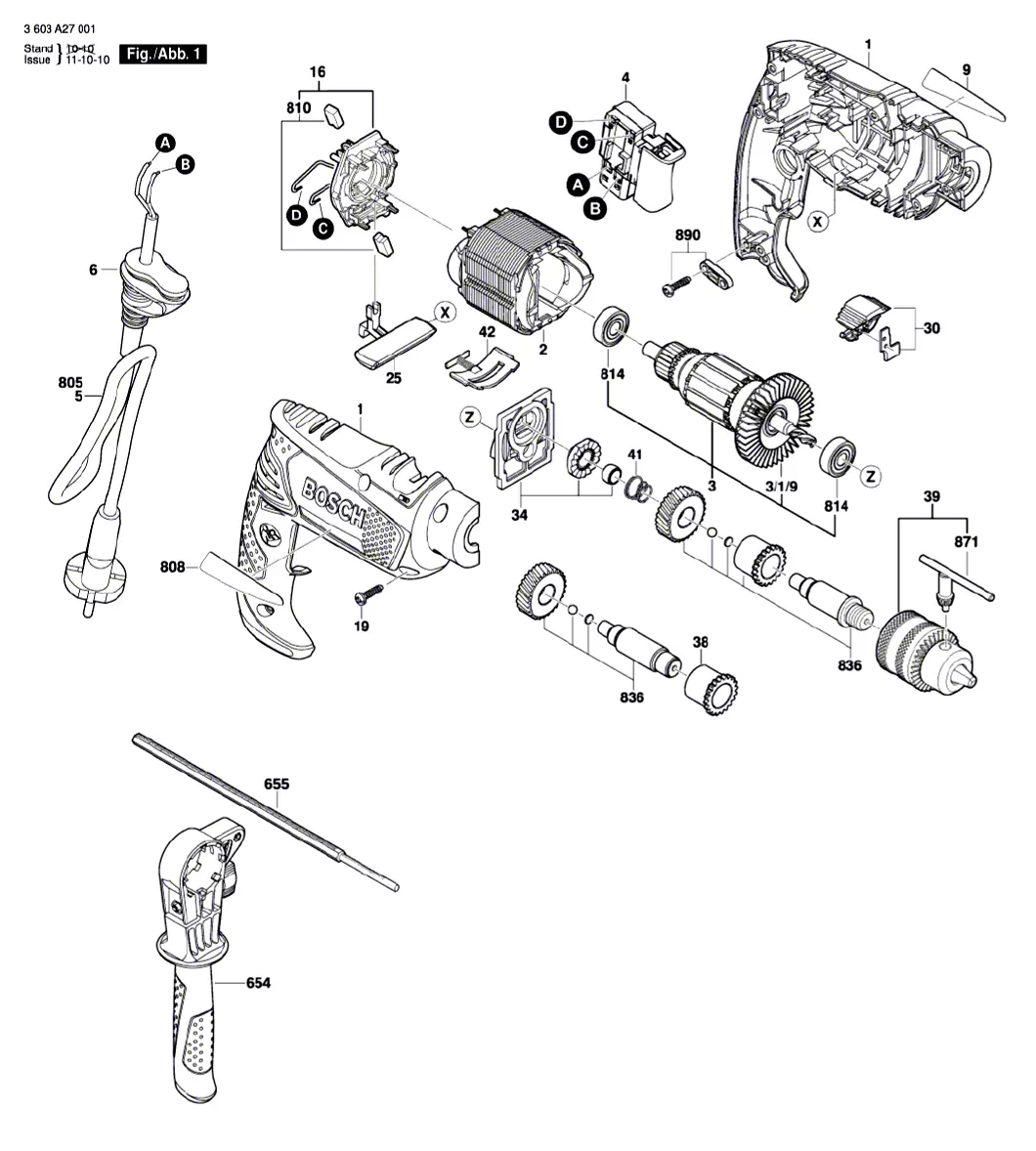

PSB 530 RE (3603A27007)
PSB 530 RE (3603A27007)
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
Housing Section GREEN |
| 2 |  |
Field 220-240V |
| 3 |  |
Armature 220-240V |
| 3/1/9 |  |
Fan |
| 4 |  |
Switch |
| 5 |  |
Power supply cord EU 230V 2,7m 2 x 0,75mm H05 VV-F |
| 6 |  |
Grommet Ø6,4-Ø7,2x76 MM |
| 9 |  |
Manufacturer\\\'s nameplate PSB 530 RE |
| 16 |  |
Brush Holder |
| 19 |  |
Screw 4x16 |
| 25 |  |
Change-Over Switch |
| 30 |  |
Change-Over Switch |
| 34 |  |
Bearing Bracket |
| 38 |  |
Porous Bearing |
| 39 |  |
Key Chuck |
| 41 |  |
Compression Spring |
| 42 |  |
Shut-off Valve |
| 654 |  |
Auxiliary Handle BLACK |
| 655 |  |
Depth-Gauge |
| 808 |  |
Nameplate |
| 810 |  |
Carbon-Brush Set 220-240V |
| 814 |  |
groove ball bearing 8x22x7 608-2Z/C3 |
| 836 |  |
Drilling Spindle |
| 871 |  |
Chuck Wrench SG2 |
| 890 |  |
Fastening parts kit |
