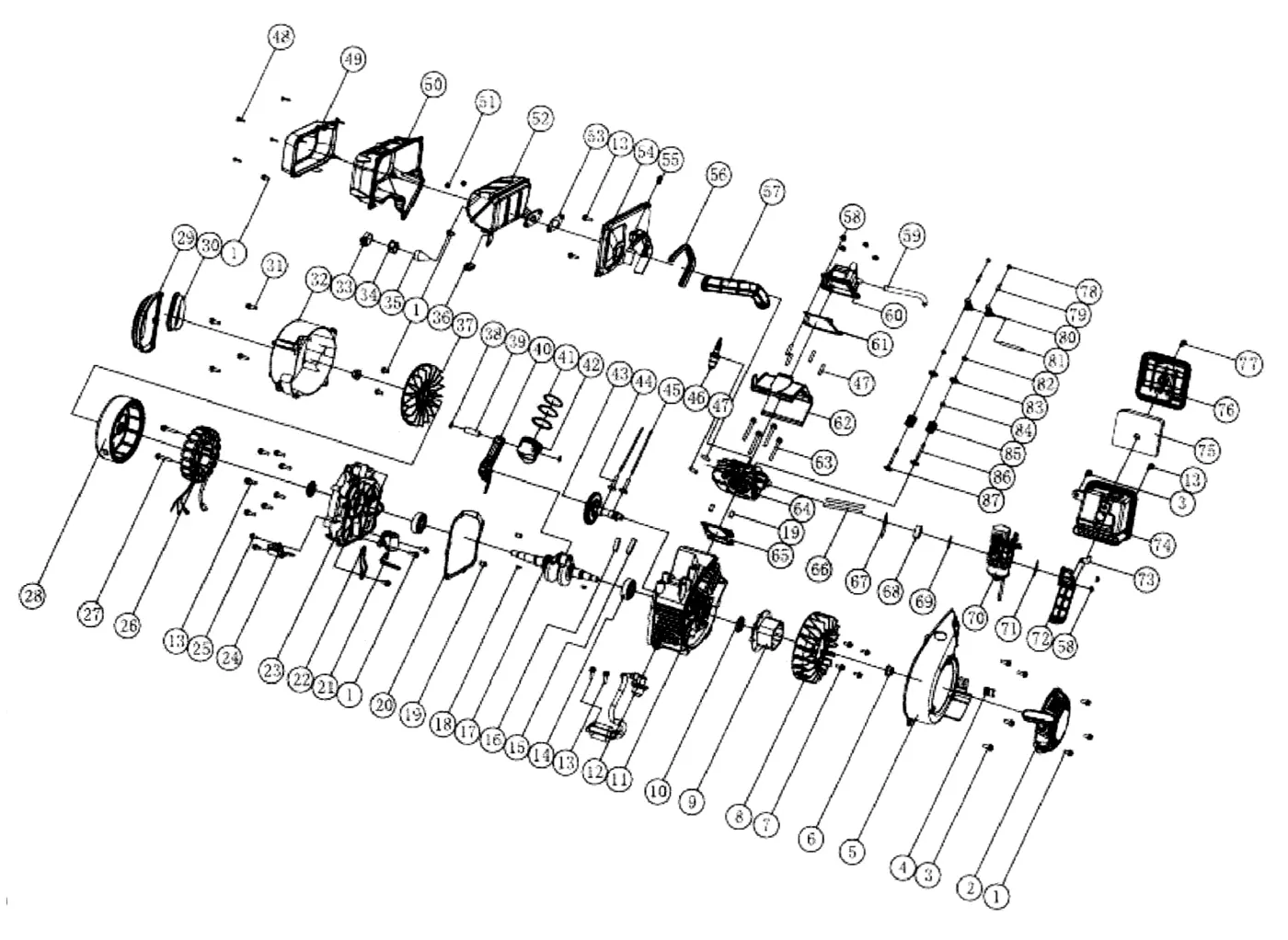

02 Двигатель
| П-п | Арт | Название |
|---|---|---|
| 1 | BOLT M6X12 | |
| 2 | STARTER ASSEMBLY | |
| 3 | BOLT M6X15 | |
| 4 | NUT | |
| 5 | FAN COVER COMP. | |
| 6 | NUT M12X1.25 | |
| 7 | BOLT M5X12 | |
| 8 | COOLING FAN | |
| 9 | STARTING HUB | |
| 10 | OIL SEAL 20X35X5 | |
| 11 | CRANKCASE COMP | |
| 12 | IGNITION ASSEMBLY | |
| 13 | BOLT M6X20 | |
| 14 | BEARING | |
| 15 | PROTECTOR COVER SEAL 2 | |
| 16 | PROTECTOR COVER SEAL 1 | |
| 17 | CRANK COMP | |
| 18 | KEY | |
| 19 | DOWEL PIN | |
| 20 | CRANKCASE GASKET | |
| 21 | OIL SENSOR | |
| 22 | OIL SENSOR PLATE | |
| 23 | CRANKCASE COVER | |
| 24 | TRIGGER ASSEMBLY | |
| 25 | BOLT M6X12 | |
| 26 | STATOR COMP. | |
| 27 | BOLT M6X35 | |
| 28 | ROTOR COMP. | |
| 29 | RUBBER.END COVER 2 | |
| 30 | RUBBER.END COVER 1 | |
| 31 | BOLT M6X22 | |
| 32 | END COVER | |
| 33 | SPARK ARRESTER CLAMP | |
| 34 | SPARK ARRESTER BASE | |
| 35 | SPARK ARRESTER | |
| 36 | RUBBER SEAL | |
| 37 | MOTOR FAN | |
| 38 | PISTON PIN CUP | |
| 39 | PISTON PIN | |
| 40 | CONNECT ROD ASSEMBLY | |
| 41 | PISTON RING SET | |
| 42 | PISTON | |
| 43 | CAMSHAFT COMP. | |
| 44 | VALVE TAPPET | |
| 45 | PUSH ROD | |
| 46 | SPARK PLUG | |
| 47 | EXHAUST BOLT | |
| 48 | TAPPING SCREW ST4.8X17 | |
| 49 | MUFF. PROTECTOR ASSY. RH | |
| 50 | MUFF. PROTECTOR ASSY.MIDDLE | |
| 51 | NUT M6 | |
| 52 | MUFFLER COMP | |
| 53 | EXHAUST GASKET | |
| 54 | PROTECTOR MUFF. SIDE | |
| 55 | SETTING FLASH BOARD | |
| 56 | MUFF. PROTECTOR SEAL | |
| 57 | DUCT | |
| 58 | NUT M6 | |
| 59 | BREATHER PIPE | |
| 60 | CYL. HEAD COVER ASSEMBLY | |
| 61 | CYUNDER COVER GASKET | |
| 62 | AIR SHROUD,CYUNDER COMP. | |
| 63 | BOLT M6X50 | |
| 64 | CYUNDER HEAD COMP. | |
| 65 | GASKET, CYLINDER | |
| 66 | CARBURETOR BOLT | |
| 67 | GSKT,INSULATOR | |
| 68 | INSULATOR.CARB. | |
| 69 | GSKT,CARB | |
| 70 | CARB. ASSEMBLY | |
| 71 | GSKT,AIR CLEANER | |
| 72 | PIPE,AIR CLEANER | |
| 73 | JT.,BREATHER PIPE | |
| 74 | CASE,AIR CLEANER COMP. | |
| 75 | AIR CLEANER ELEMENT | |
| 76 | CASE,AIR CLEANER | |
| 77 | BOLT M6X20 | |
| 78 | NUT,VALVE ADJUSTING | |
| 79 | SCREW,VALVE ADJUSTING | |
| 80 | ARM,VALVE ROCKER | |
| 81 | SHAFT,SCREW ROCKER | |
| 82 | LOCK CUP. VALVE | |
| 83 | RET.,VALVE SPRING | |
| 84 | OIL SEAL,VALVE | |
| 85 | SPRING,VALVE | |
| 86 | VALVE,INTAKE | |
| 87 | VALVE,EXHAUST |
