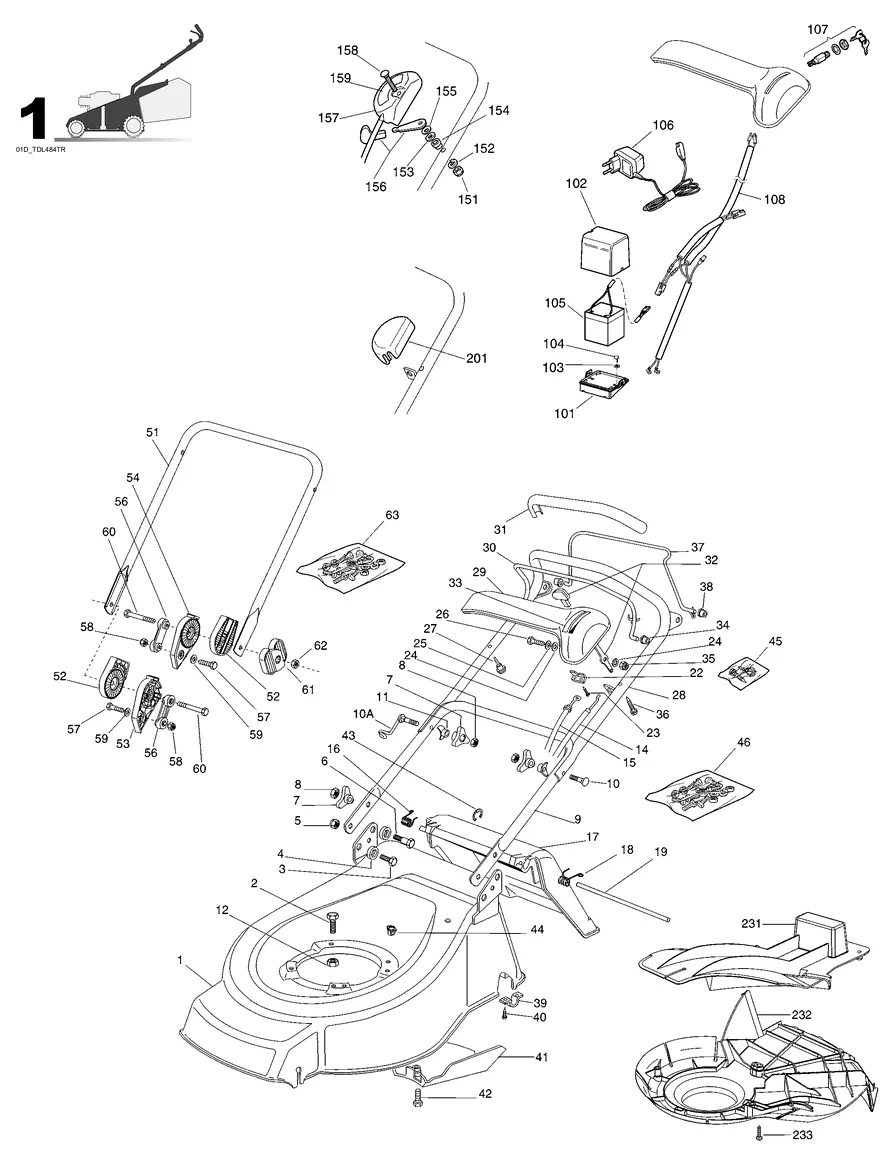

01 DECK, HANDLE LOWER PART, HANDLE UPPER PART, CABLE TROTTLE, CABLE THREAD MOTOR BRAKE
01 DECK, HANDLE LOWER PART, HANDLE UPPER PART, CABLE TROTTLE, CABLE THREAD MOTOR BRAKE
| П-п | Арт | Название |
|---|---|---|
| 1 | DECK YELLOW (TDL 484 TR / TDL 484 TR-E) | |
| 1 | DECK RED (TDL 484 TR / TDL 484 TR-E) | |
| 1 | DECK GREEN (TDL 484 TR / TDL 484 TR-E) | |
| 1 | DECK YELLOW (TDL 534 TR) | |
| 1 | DECK RED (TDL 534 TR) | |
| 1 | DECK GREEN (TDL 534 TR) | |
| 1 | DECK YELLOW (TDL 534 TR-E) | |
| 1 | DECK RED (TDL 534 TR-E) | |
| 1 | DECK GREEN (TDL 534 TR-E) | |
| 2 | SCREW | |
| 2 | SCREW | |
| 3 | SCREW | |
| 4 | BUSH | |
| 5 | NUT | |
| 6 | SCREW | |
| 7 | KNOB | |
| 8 | NUT | |
| 9 | HANDLE, LOWER PART (TDL 484 TR / TDL 484 TR-E) | |
| 9 | HANDLE, LOWER PART (TDL 534 TR/TDL 534 TR-E) | |
| 10 | SCREW | |
| 10A | GUIDE SPRING | |
| 11 | WASHER | |
| 12 | NUT | |
| 12 | NUT | |
| 14 | CABLE, TROTTLE | |
| 15 | CABLE, THREAD MOTOR BRAKE (B&S CLASSIC/SPRINT/ LS/LC TDL 484 TR) | |
| 15 | CABLE, THREAD MOTOR BRAKE (B&S CLASSIC/SPRINT/ LS/LC TDL 534 TR) | |
| 15 | CABLE, THREAD MOTOR BRAKE (B&S QUANTUM/ES45 TDL 484 TR/TR-E) | |
| 15 | CABLE, THREAD MOTOR BRAKE (B&S QUANTUM/ES45 TDL 534 TR/TR-E) | |
| 15 | CABLE, THREAD MOTOR BRAKE (HONDA GCV 135/160 TDL 534 TR) | |
| 15 | CABLE, THREAD MOTOR BRAKE (HONDA GCV 135/160 TDL 484 TR) | |
| 15 | CABLE, THREAD MOTOR BRAKE (SUMEC) | |
| 15 | CABLE, THREAD MOTOR BRAKE (TECUMSEH TDL 484 TR/TR-E) | |
| 15 | CABLE, THREAD MOTOR BRAKE (TECUMSEH TDL 534 TR/TR-E) | |
| 16 | R SPRING | |
| 17 | STONE-GUARD | |
| 18 | L SPRING | |
| 19 | PIN | |
| 22 | PLATE | |
| 23 | SCREW | |
| 24 | WASHER | |
| 25 | SPRING WASHER | |
| 26 | SCREW | |
| 27 | SCREW | |
| 28 | HANDLE, UPPER PART | |
| 29 | DASH BOARD YELLOW | |
| 29 | DASH BOARD BLACK | |
| 29 | DASH BOARD RED | |
| 30 | LEVER, MOTOR BRAKE | |
| 31 | HANDGRIP YELLOW | |
| 31 | HANDGRIP BLACK | |
| 31 | HANDGRIP RED | |
| 32 | LEVER, THROTTLE | |
| 33 | LABEL (B&S) | |
| 33 | LABEL (HONDA) | |
| 33 | LABEL (SUMEC) | |
| 33 | LABEL (TECUMSEH) | |
| 34 | BUSH | |
| 35 | NUT | |
| 36 | SCREW | |
| 37 | DRIVING LEVER | |
| 38 | BUSH | |
| 39 | PLATE | |
| 40 | SCREW | |
| 41 | PROTECTION, BELT (TDL 484 TR/TDL 484 TR-E) | |
| 41 | PROTECTION, BELT (TDL 534 TR/TDL 534 TR-E) | |
| 42 | SCREW (TDL 484 TR/TDL 484 TR-E) | |
| 42 | SCREW (TDL 534 TR/TDL 534 TR-E) | |
| 43 | SNAP RING | |
| 44 | RUBBER INSERT | |
| 45 | OUTFIT, DASH-BOARD SCREWS | |
| 46 | OUTFIT, SCREWS | |
| 51 | HANDLE, LOWER PART | |
| 52 | SUPPORT, EXTERNAL | |
| 53 | SUPPORT, R INTERNAL | |
| 54 | SUPPORT, L INTERNAL | |
| 56 | PLATE, INSIDE | |
| 57 | SCREW | |
| 58 | NUT | |
| 59 | WASHER | |
| 60 | SCREW | |
| 61 | KNOB | |
| 62 | NUT | |
| 63 | OUTFIT, SCREWS | |
| 101 | SUPPORT, BATTERY (B&S - TECUMSEH CENTURA) | |
| 101 | SUPPORT, BATTERY (TECUMSEH PRISMA) | |
| 102 | COVER | |
| 103 | WASHER (B&S - TECUMSEH CENTURA) | |
| 104 | SCREW (B&S - TECUMSEH CENTURA) | |
| 104 | SCREW (TECUMSEH PRISMA) | |
| 105 | BATTERY | |
| 106 | BATTERY CHARGER | |
| 106 | BATTERY CHARGER (UK) | |
| 107 | SWITCH | |
| 108 | CABLE, START (B&S) | |
| 108 | CABLE, START (TECUMSEH) | |
| 151 | NUT | |
| 152 | GROWER | |
| 153 | SPACER | |
| 154 | WASHER | |
| 155 | SPRING WASHER | |
| 156 | LEVER, THROTTLE | |
| 157 | CABLE, TROTTLE | |
| 158 | SCREW | |
| 159 | LABEL (B&S) | |
| 159 | LABEL (HONDA) | |
| 159 | LABEL (SUMEC) | |
| 159 | LABEL (TECUMSEH) | |
| 201 | PROTECTION | |
| 231 | DEFLECTOR (TDL 534 TR/TDL 534 TR-E) | |
| 232 | PROTECTION (TDL 534 TR/TDL 534 TR-E) | |
| 233 | SCREW (TDL 534 TR/TDL 534 TR-E) |
