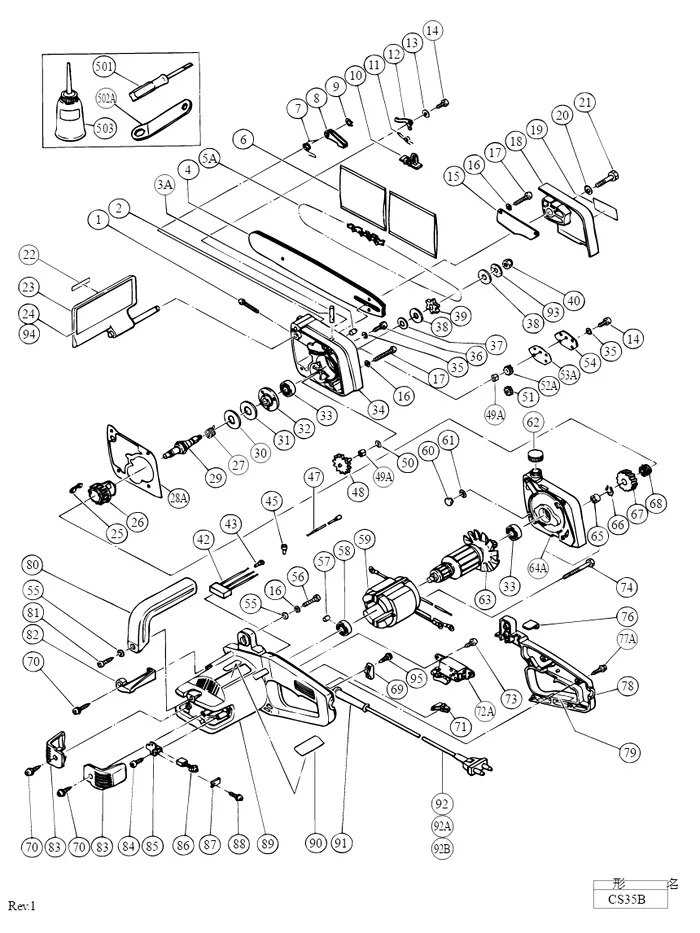

| П-п | Арт | Название |
|---|---|---|
| 1 | FREE DRIVE SCREW M5X40 | |
| 2 | STOP PIN | |
| 3A | ADJUSTING PIN ASS\\\'Y D8X15 (INCLUD.1) | |
| 4 | GUIDE BAR (B) | |
| 5A | SAW CHAIN (3/8X14\\\") | |
| 6 | CHAIN CASE (A) (FOR HOL,DEN,FIN,GBR,FRG,FRA,SWE,AUT,NOR,SUI,NZL) | |
| 7 | SPRING (B) | |
| 8 | CAM PLATE | |
| 9 | RETAINING RING FOR D10 SHAFT (10 PCS.) | |
| 10 | RESET PLATE | |
| 11 | SPRING (A) | |
| 12 | HOOK PLATE | |
| 13 | BOLT WASHER M4 (10 PCS.) | |
| 14 | MACHINE SCREW M4X10 (10 PCS.) | |
| 15 | COVER PLATE | |
| 16 | SPRING WASHER M5 (10 PCS.) | |
| 17 | TAPPING SCREW D5X70 | |
| 18 | CHAIN COVER ASS\\\'Y (INCLUD.19) | |
| 19 | HITACHI LABEL | |
| 20 | SPRING WASHER M8 (10 PCS.) | |
| 21 | BOLT M8X40 (10 PCS.) | |
| 22 | CAUTION PLATE (FOR FRG) | |
| 23 | HAND GUARD | |
| 24 | CAUTION PLATE (FOR DEN,FIN,SWE,NOR,ITA) | |
| 25 | HOOK SPRING | |
| 26 | STOP COLLAR | |
| 27 | BRAKE SPRING | |
| 28A | OIL SEAL | |
| 29 | SPINDLE | |
| 30 | WASHER (PLASTIC T0.5) | |
| 31 | WASHER (STEEL T0.2) | |
| 32 | SLEEVE | |
| 33 | BALL BEARING 6201VVCMPS2L | |
| 34 | GEAR COVER | |
| 35 | SPRING WASHER M4 (10 PCS.) | |
| 36 | MACHINE SCREW M4X12 (10 PCS.) | |
| 37 | WASHER (B) | |
| 38 | SIDE PLATE | |
| 39 | SPROCKET | |
| 40 | U-NUT (LEFT HAND) M8 | |
| 42 | NOISE SUPPRESSOR | |
| 43 | TERMINAL (FOR NZL,GBR,ITA,FRG,FRA,HOL,DEN,SWE,AUT,NOR,FIN) | |
| 43* | TERMINAL 50061 (10 PCS.) (FOR SUI) | |
| 45 | CONNECTOR 50092 (10 PCS.) (FOR NZL,GBR,ITA,FRG,FRA,HOL,DEN,SWE,AUT,NOR,SUI,FIN) | |
| 47 | INTERNAL WIRE (A) (FOR NZL,GBR,ITA,FRG,FRA,HOL,DEN,SWE,AUT,NOR,SUI,FIN) | |
| 48 | PUMP GEAR | |
| 49A | METAL D4X6 | |
| 50 | O-RING (P-4) | |
| 51 | FIRST IDLE GEAR ((I.D.4MM)) | |
| 52A | FIRST IDLE GEAR ((I.D.4MM)) | |
| 53A | CAP SEAL | |
| 54 | CAP PLATE | |
| 55 | WASHER M5 (10 PCS.) | |
| 56 | MACHINE SCREW M5X35 (10 PCS.) | |
| 57 | BEARING LOCK | |
| 58 | BALL BEARING 6000VVCMPS2L | |
| 59* | STATOR 110V-115V | |
| 59* | STATOR 220V-230V | |
| 59* | STATOR 240V | |
| 59* | STATOR 220V-230V (FOR ITA,FRG,FRA,HOL,DEN,SWE,AUT,NOR,SUI,GBR,FIN,NZL) | |
| 59* | STATOR 240V (FOR AUS) | |
| 59* | STATOR 110V (FOR GBR) | |
| 60 | OIL GAUGE | |
| 61 | O-RING (S-12) | |
| 62 | CAP | |
| 63* | ARMATURE 110V | |
| 63* | ARMATURE 220V-230V | |
| 63* | ARMATURE 230V-240V (FOR SIN,KUW,NGU,AUS) | |
| 64A | INNER COVER ASS\\\'Y (INCLUD.65) | |
| 65 | NEEDLE BEARING (HK1010) | |
| 66 | RETAINING RING FOR D12 SHAFT (10 PCS.) | |
| 67 | GEAR | |
| 68 | CLUTCH SPRING (A) | |
| 69 | CORD CLIP | |
| 70 | TAPPING SCREW (W/WASHER) D4X16 | |
| 71 | INTERNAL WIRE CLIP | |
| 72A | SWITCH (A) (1P SCREW TYPE) W/O LOCK | |
| 73 | TAPPING SCREW D4X12 | |
| 74 | HEX. HD. TAPPING SCREW D5X65 | |
| 76 | RUBBER CAP | |
| 77A | TAPPING SCREW (W/FLANGE) D4X25 | |
| 78 | HANDLE COVER | |
| 79 | CAUTION PLATE (FOR NOR) | |
| 80 | SIDE HANDLE | |
| 81 | TAPPING SCREW D5X20 | |
| 82 | ATTACHMENT | |
| 83 | TAIL COVER | |
| 84 | TAPPING SCREW D4X10 | |
| 85 | BRUSH HOLDER | |
| 86 | CARBON BRUSH (1 PAIR) | |
| 87 | BRUSH PLATE | |
| 88 | MACHINE SCREW (W/WASHER) M4X8 | |
| 89 | HOUSING ASS\\\'Y (INCLUD.84,85) | |
| 90 | NAME PLATE | |
| 91 | CORD ARMOR D8.8 | |
| 91* | CORD ARMOR D10.1 | |
| 92* | CORD ((CORD ARMOR D10.1) FOR ITA,FRG,FRA,HOL,DEN,FIN,SWE,AUT,NOR) | |
| 92* | CORD ((CORD ARMOR D8.8) FOR NZL,NGU,AUS) | |
| 92* | CORD ((CORD ARMOR D8.8) FOR INA) | |
| 92* | CORD ((CORD ARMOR D10.1) FOR SYR) | |
| 92* | CORD ((CORD ARMOR D10.1) FOR SUI) | |
| 92A | CORD ((CORD ARMOR D8.8) FOR SIN) | |
| 92A | CORD ((CORD ARMOR D10.1) FOR GBR (110V)) | |
| 92B | CORD ((CORD ARMOR D10.1) FOR GBR (230V)) | |
| 93 | BELLEVILLE SPRING | |
| 94 | CAUTION PLATE (FOR GBR,FRG,FRA,HOL,AUT,SUI) | |
| 95 | TAPPING SCREW (W/FLANGE) D4X16 | |
| 501 | SCREWDRIVER NO.2 | |
| 502A | WRENCH (HEX. SOCKET 10/13MM) | |
| 503 | LUBRICANT OILER (120CC) (FOR SUI) | |
| 601 | DEPTH GAUGE JOINTER | |
| 602 | CHAIN SAW OIL (1 LITER) |
