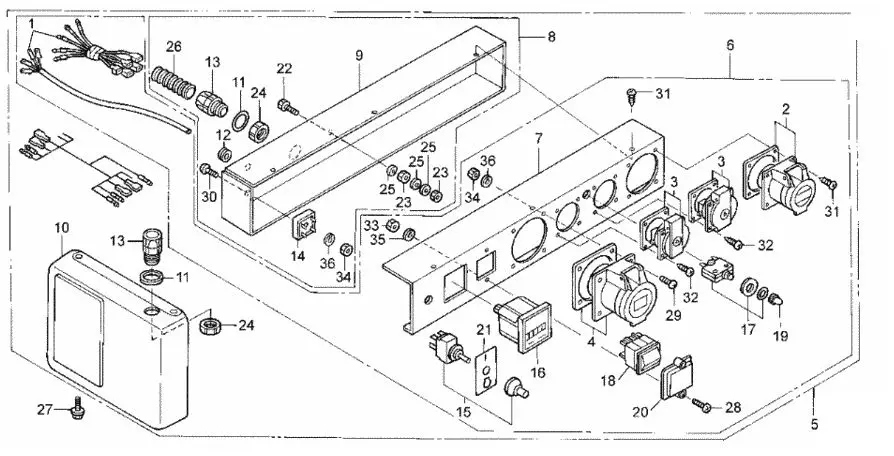

Cover/receptacle unit
Cover/receptacle unit
| П-п | Арт | Название |
|---|---|---|
| 1 | Harness,wiring generator assy | |
| 10 | Cover, control box | |
| 11 | Packing, connector | |
| 12 | Grommet, switch cord | |
| 13 | Connector, tube | |
| 14 | Bridge, rectifier | |
| 15 | Switch assy., engine kill | |
| 16 | Meter assy., hour | |
| 17 | Breaker, circuit (20a) | |
| 18 | Breaker, combination | |
| 19 | Cap, water protection | |
| 2 | Receptacle (16a/240v) | |
| 20 | Cap, water protection | |
| 21 | Mark, engine switch | |
| 22 | Bolt, hex., 5x20 | |
| 23 | Nut, hex., 5mm | |
| 24 | Nut, connecter | |
| 25 | Washer, plain, 5mm | |
| 26 | Tube, cord | |
| 27 | Bolt, hex., 5x12 | |
| Bolt, hex. (5x12) | ||
| 28 | Mark, earth | |
| 29 | Mark, earth | |
| 3 | Receptacle (16a/250v) | |
| 30 | Mark, earth | |
| 31 | Mark, earth | |
| 32 | Mark, earth | |
| 33 | Mark, earth | |
| 34 | Mark, earth | |
| 35 | Mark, earth | |
| 36 | Mark, earth | |
| 4 | Receptacle (16a/400v) | |
| 5 | Box assy., control (gv) | |
| 6 | Panel assy., control | |
| 7 | Panel, control | |
| 8 | Case assy., control | |
| 9 | Case comp., control |
