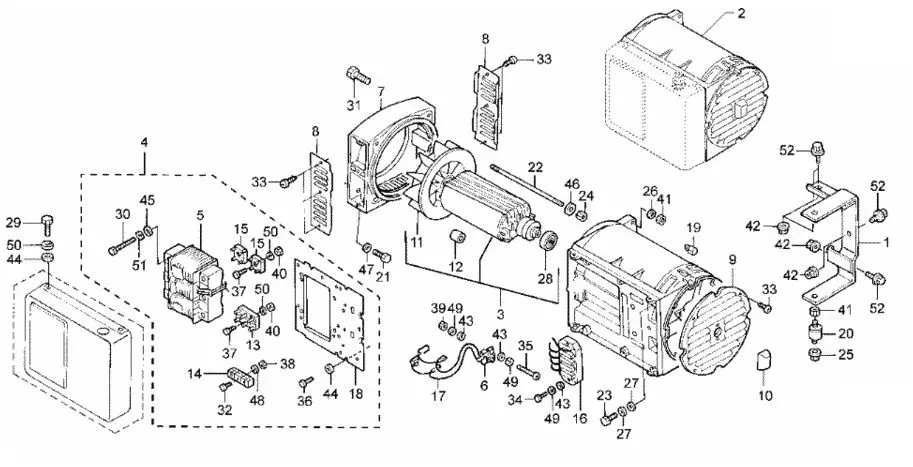

Rotor/stator
Rotor/stator
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
Stay, muffler |
| 10 |  |
Cap |
| 11 |  |
Fan, cooling |
| 12 |  |
Ring, compensating |
| 13 |  |
Plate, coupling |
| 14 |  |
Connector |
| 15 |  |
Bridge, rectifier |
| 16 |  |
Filter assy., ac noise |
| 17 |  |
Varistor assy. |
| 18 |  |
Plate, mounting |
| 19 |  |
Cover, stator |
| 2 |  |
Generators |
| 20 |  |
Rubber, generator mounting |
| 21 |  |
Bolt, hex., 3/8-16 |
| 22 |  |
Stud, coupling |
| 23 |  |
Bolt, hex., 5x10 |
| 24 |  |
Nut, self-lock, 8mm |
| 25 |  |
Nut, setting |
| 26 |  |
Washer, flange |
| 27 |  |
Washer, plain, 5mm |
| 28 |  |
Bearing, 6203 |
| 29 |  |
Bolt, hex., 5x16 |
| 3 |  |
Rotor comp. |
| 30 |  |
Bolt, hex., 6x60 |
| 31 |  |
Bolt, hex., 8x35 |
| 32 |  |
Screw, pan, 3x16 |
| 33 |  |
Mark, earth |
| 34 |  |
Mark, earth |
| 35 |  |
Screw, pan, 4x30 |
| 36 | Mark, earth | |
| 37 | Mark, earth | |
| 38 | Mark, earth | |
| 39 | Mark, earth | |
| 4 | Transformer assy. | |
| 40 | Mark, earth | |
| 41 | Mark, earth | |
| 42 | Mark, earth | |
| 43 | Mark, earth | |
| 44 | Mark, earth | |
| 45 | Mark, earth | |
| 46 | Mark, earth | |
| 47 | Mark, earth | |
| 48 | Mark, earth | |
| 49 | Mark, earth | |
| 5 | Transformer | |
| 50 | Mark, earth | |
| 51 | Mark, earth | |
| 52 | Bolt, flange, 8x20 | |
| 6 | Holder, brush | |
| 7 | Casing, fr. | |
| 8 | Ventilation grid | |
| 9 | Stator comp. | |
| 9 | Grid, rr. |
