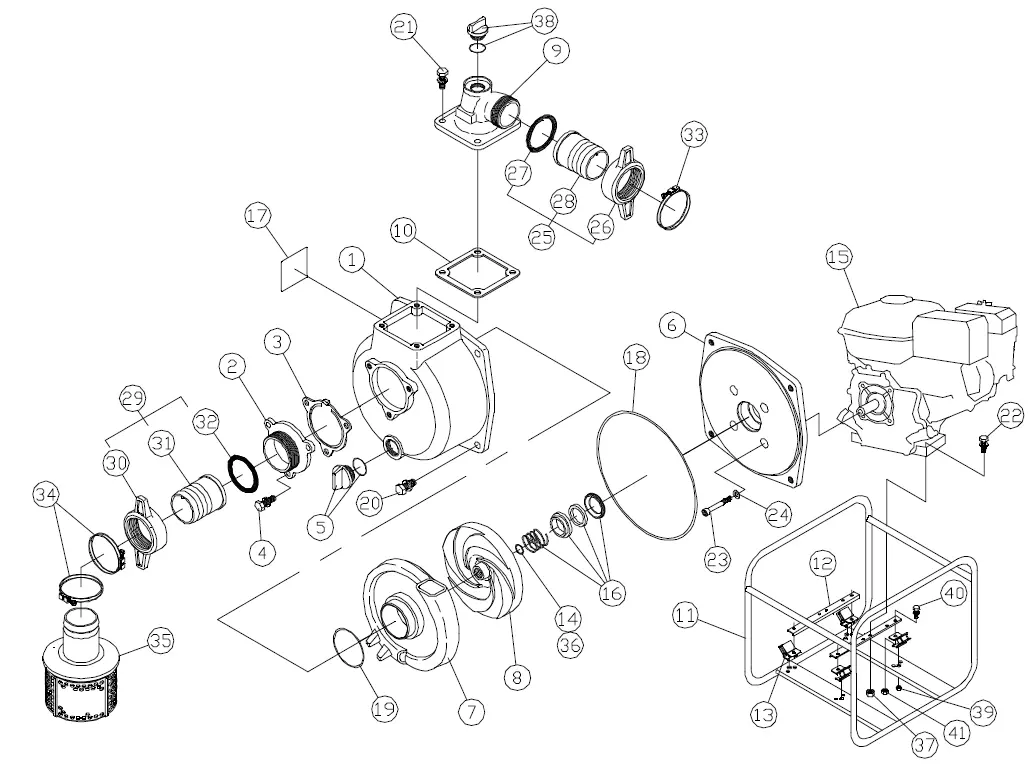

| П-п | Арт | Название |
|---|---|---|
| 1 | PUMP CASING ADC | |
| 2 | SUCTION FLANGE ADC | |
| 3 | CHECK VALVE NBR | |
| 4 | HEXAGON BOLT SWRM M10X25 | |
| 5 | 25A PLUG SET | |
| 6 | FLANGE BRACKET ADC | |
| 7 | VOLUTE CASING FC | |
| 8 | IMPELLER FC | |
| 9 | DELIVERY FLANGE ADC | |
| 10 | DELIVERY FLANGE PACKING CR | |
| 11 | BASE SET N0.66 | |
| 12 | ENGINE BASE SPC | |
| 13 | CUSHION RUBBER | |
| 14 | IMPELLER ADJUSTING WASHER BSP | |
| 15 | ENGINE ROBIN EX270D | |
| 16 | MECHANICAL SEAL (p 20 | |
| 17 | NAME PLATE TFILM | |
| 18 | O-RING NBR 1517-51.5 | |
| 19 | O-RING NBR P74 | |
| 20 | HEXAGON BOLT SWRM Ml 2X30 | |
| 21 | HEXAGON BOLT SWRM M10X30 | |
| 22 | HEXAGON BOLT SWRM M10X40 | |
| 23 | HEXAGON SOCKET BOLT SCM M8X60 | |
| 24 | SEAL WASHER | |
| 25 | COUPLING SET PS SCREW 50MM | |
| 26 | COUPLING ABS 50MM | |
| 27 | COUPLING PACKING NBR 50MM | |
| 28 | HOSE NIPPLE ABS 50MM | |
| 29 | COUPLING SET PS SCREW 65MM | |
| 30 | COUPLING AC 65MM | |
| 31 | HOSE NIPPLE ABS 65MM | |
| 32 | COUPLING PACKING NBR 65MM | |
| 33 | HOSE BAND | |
| 34 | HOSE BAND | |
| 35 | STRAINER SET PP | |
| 36 | IMPELLER ADJUSTING WASHER BSP | |
| 37 | HEXAGON NUT SWRM M10 | |
| 38 | 20A PLUG SET | |
| 39 | M8 SPRING NUT SWRM M8 | |
| 40 | HEXAGON BOLT SWRM Ml 2X25 | |
| 41 | HEXAGON NUT SWRM M12 |
