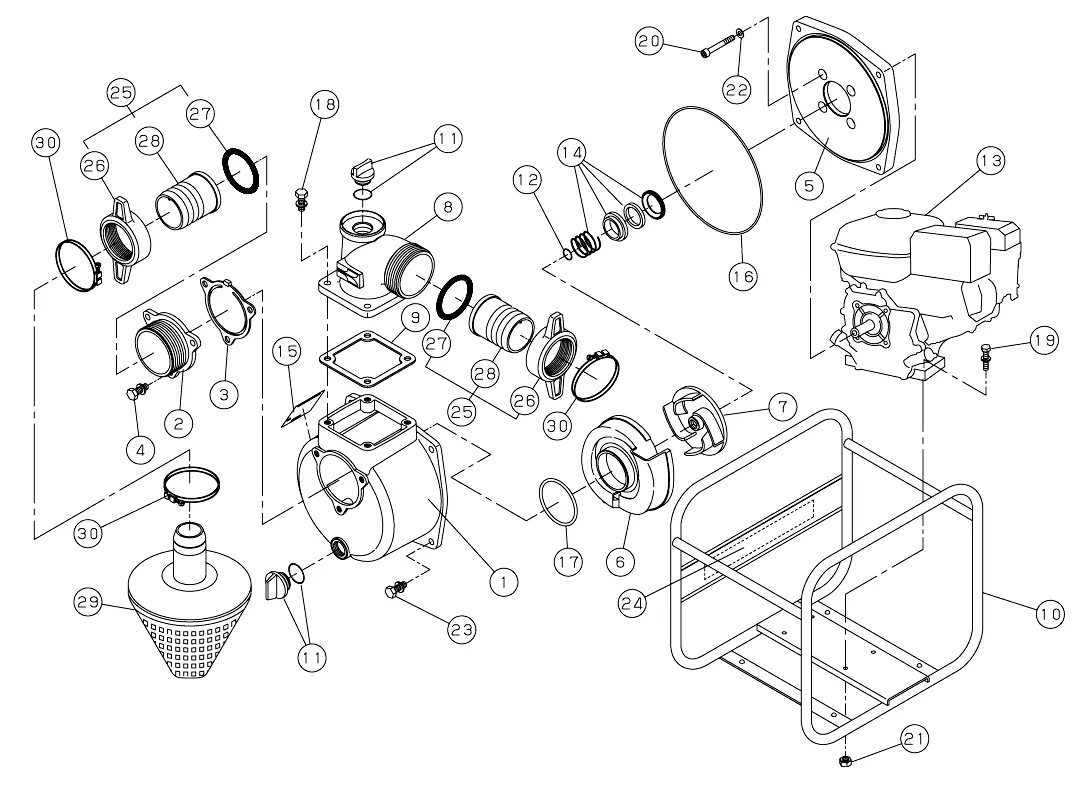

| П-п | Арт | Название |
|---|---|---|
| 1 | PUMP CASING ADC M8X20 | |
| 2 | SUCTION FLANGE ADC | |
| 3 | CHECK VALVE NBR | |
| 4 | HEXAGON BOLT SWRM | |
| 5 | FLANGE BRACKET ADC | |
| 6 | VOLUTE CASING FC | |
| 7 | IMPELLER FC | |
| 8 | DELIVERY FLANGE ADC | |
| 9 | DELIVERY FLANGE PACKING CR | |
| 10 | BASE SET | |
| 11 | 20A PLUG SET | |
| 12 | IMPELLER ADJUSTING WASHER BSP | |
| 13 | ENGINE ROBIN EX130D10011 | |
| 14 | MECHANICAL SEAL CARBON CERAMIC φ 18 | |
| 15 | NAME PLATE | |
| 16 | O-RING NBR 1517-42.5 | |
| 17 | O-RING NBR P54 | |
| 18 | HEXAGON BOLT SWRM M8X25 | |
| 19 | HEXAGON BOLT SWRM M8X35 | |
| 20 | HEXAGON SOCKET BOLT SCM M8X60 | |
| 21 | HEXAGON NUT SWRM M8 | |
| 22 | SEAL WASHER φ 8 | |
| 23 | HEXAGON BOLT SWRM M8X22 | |
| 24 | SIDE PANEL LABEL | |
| 25 | COUPLING SET ABS | |
| 26 | COUPLING ABS | |
| 27 | COUPLING PACKING NBR | |
| 28 | HOSE NIPPLE ABS | |
| 29 | STRAINER SET | |
| 30 | HOSE BAND |
