Water Tank (501 33 02-01) 2007-01/

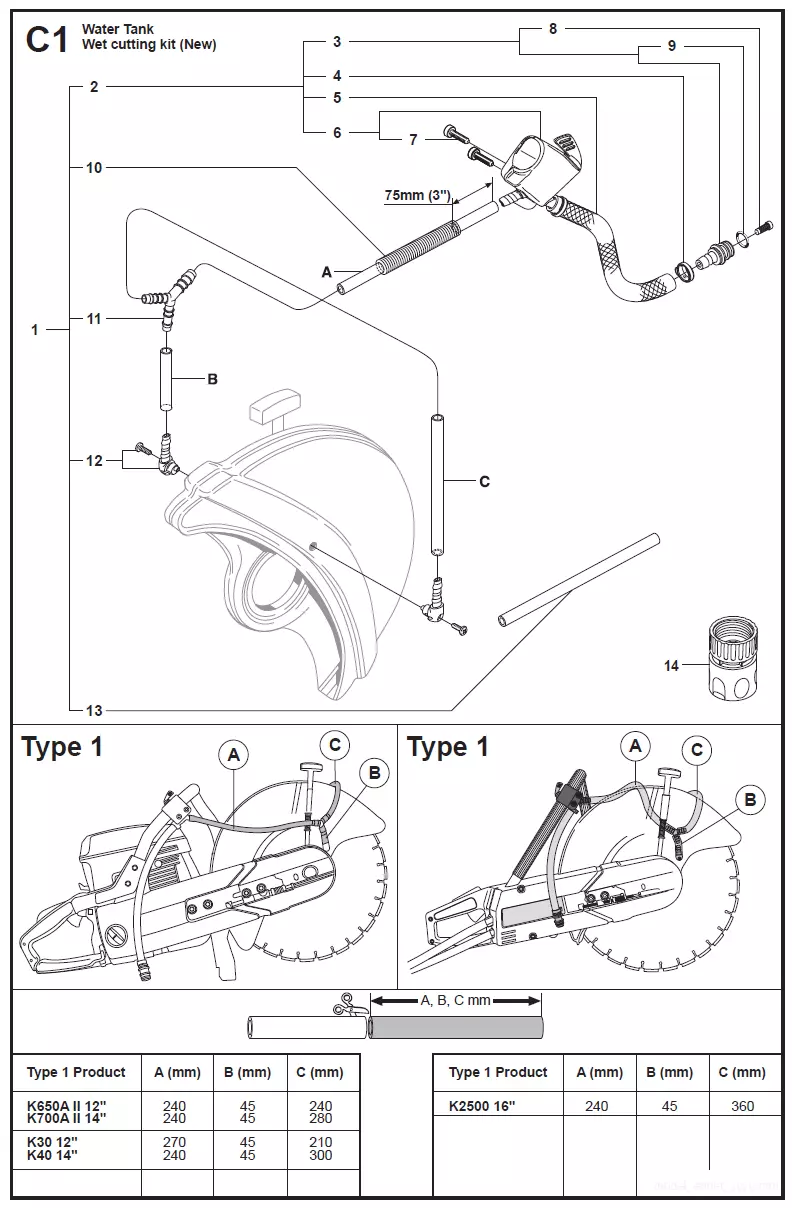

Схема C1
Схема C1
| П-п | Арт | Название |
|---|---|---|
| 1 | WATER HOSE KIT Incl. 2, 10 - 13 | |
| 2 | HOSE Incl. 3 - 6 | |
| 3 | NIPPLE Incl. 8 | |
| 4 | HOSE CLAMP | |
| 5 | HOSE L=230mm | |
| 6 | VALVE ASSY Incl. 7 | |
| 7 | SCREW | |
| 8 | FILTER | |
| 9 | O-RING | |
| 10 | PROTECTIVE SPRING | |
| 11 | Y-TUBE | |
| 12 | NIPPLE | |
| 13 | HOSE | |
| 14 | COUPLER |
