Water Tank (501 33 02-01) 2007-01/

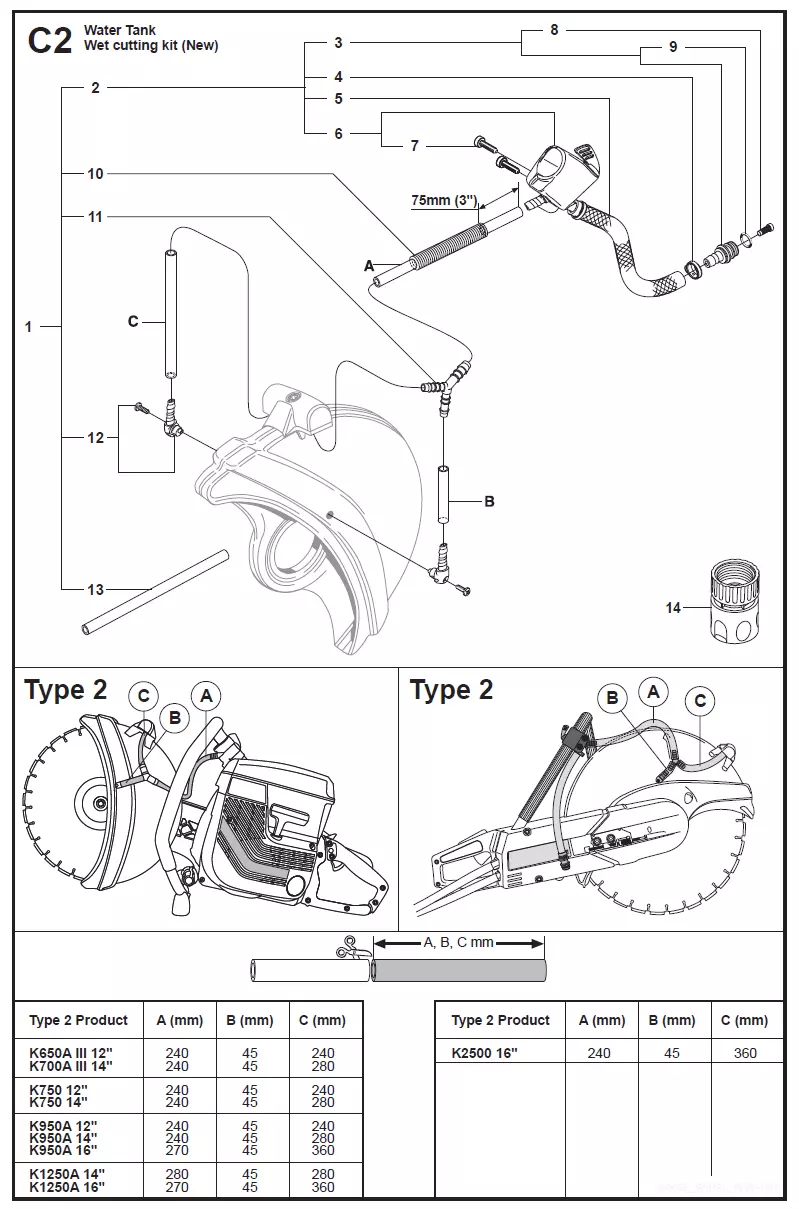

Схема C2
Схема C2
| П-п | Арт | Название |
|---|---|---|
| 1 | WATER HOSE KIT K750. Incl. 2, 10 - 13 | |
| 1 | WATER HOSE KIT Incl. 2, 10 - 13 | |
| 2 | HOSE Incl. 3 - 6 | |
| 2 | HOSE K750. Incl. 3 - 6 | |
| 3 | NIPPLE Incl. 8 | |
| 4 | HOSE CLAMP | |
| 5 | HOSE L=230mm | |
| 6 | VALVE ASSY Incl. 7 | |
| 6 | VALVE ASSY K750. Incl. 7 | |
| 7 | SCREW | |
| 7 | SCREW K750 | |
| 8 | FILTER | |
| 9 | O-RING | |
| 10 | PROTECTIVE SPRING | |
| 11 | Y-TUBE | |
| 12 |  |
NIPPLE |
| 13 |  |
HOSE |
| 14 |  |
COUPLER |
