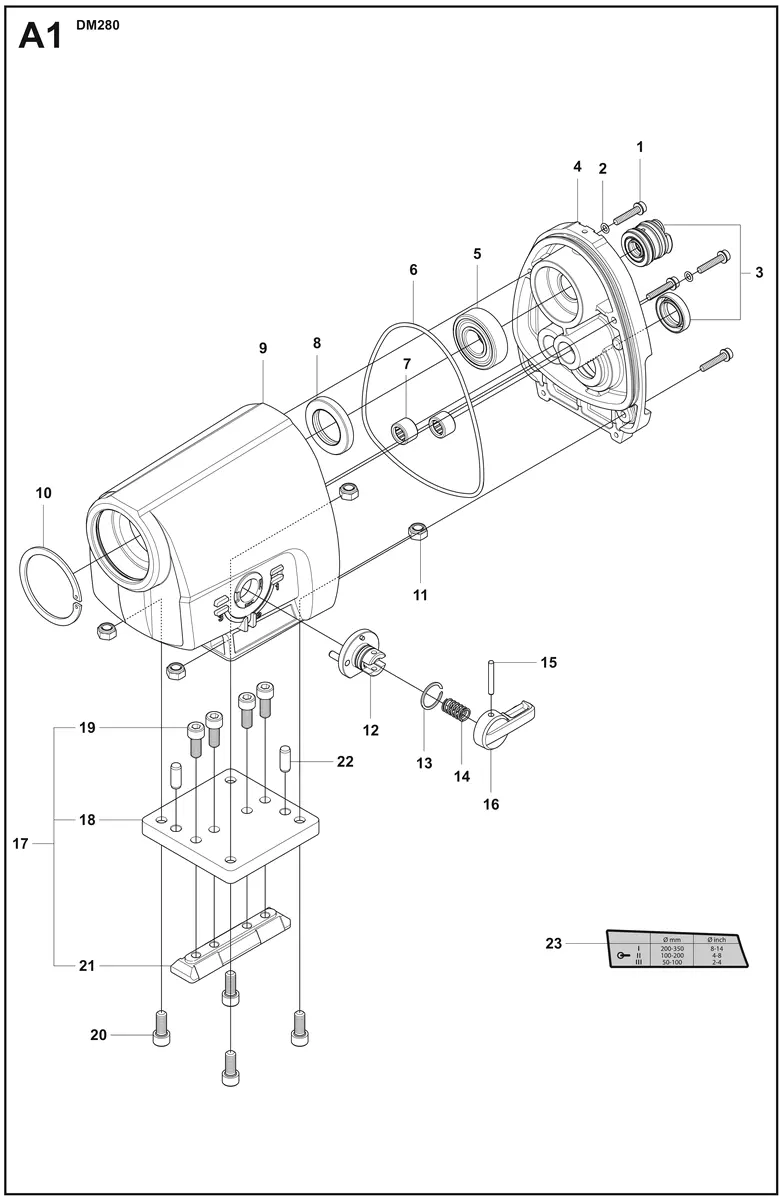

A1 GEAR BOX
| П-п | Арт | Название |
|---|---|---|
| 1 | SCREW | |
| 2 | O-RING | |
| 3 | SEAL KIT | |
| 4 | COVER | |
| 5 | BALL BEARING | |
| 6 | O-RING | |
| 7 | NEEDLE BEARING | |
| 8 | SEALING RING | |
| 9 | GEAR HOUSING | |
| 10 |  |
CIRCLIP |
| 11 |  |
LOCK NUT |
| 12 |  |
SHAFT |
| 13 |  |
CIRCLIP |
| 14 |  |
COMPRESSION SPRING |
| 15 |  |
PARALLEL PIN |
| 16 |  |
GEAR SHIFT LEVER |
| 17 |  |
MOTOR BRACKET (Incl. 18, 19, 21) |
| 18 |  |
PLATE |
| 19 |  |
SCREW |
| 20 |  |
SCREW |
| 21 |  |
WEDGE |
| 22 |  |
PARALLEL PIN |
| 23 |  |
LABEL (Low speed version) |
| 23 |  |
LABEL (High speed version) |
