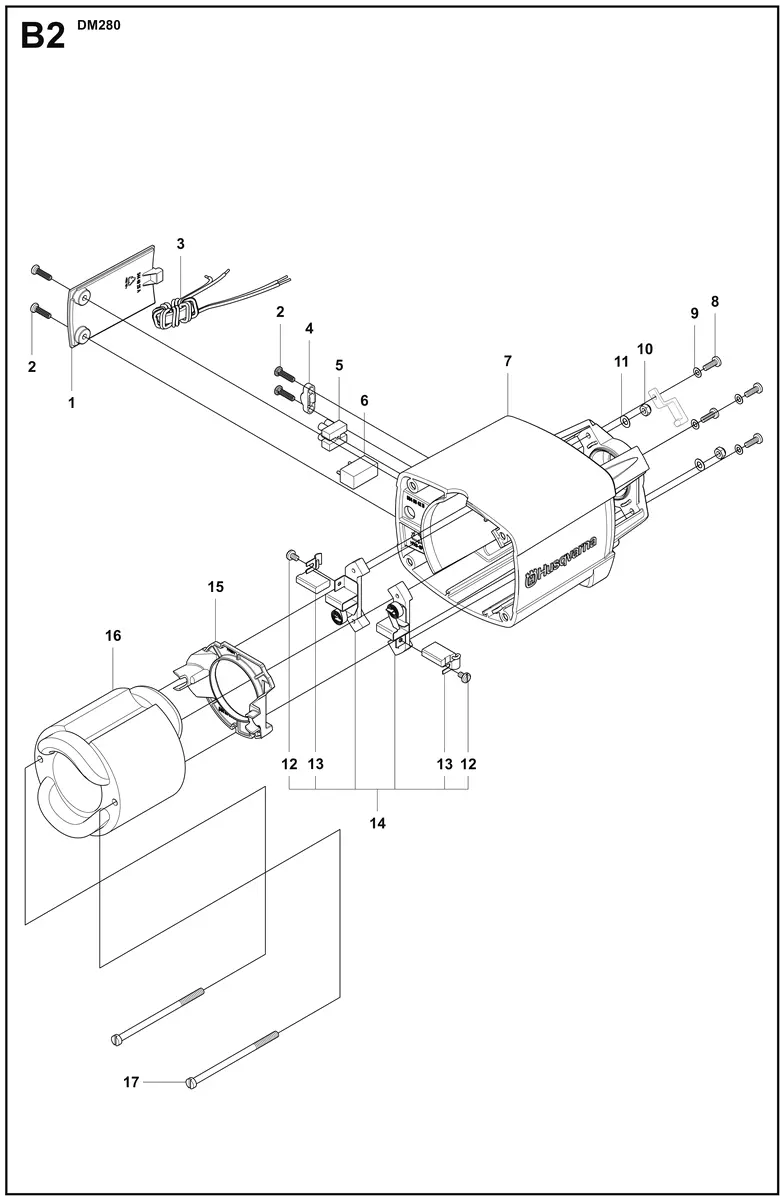

B2 MOTOR
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
COVER |
| 2 |  |
SCREW |
| 3 |  |
FILTER (230V Only) |
| 4 |  |
CABLE CLAMP |
| 5 |  |
TERMINAL BLOCK (110V) |
| 5 |  |
TERMINAL BLOCK (230V) |
| 6 |  |
CAPACITOR |
| 7 |  |
MOTOR HOUSING |
| 8 |  |
SCREW |
| 9 |  |
SPRING WASHER |
| 10 |  |
LOCK NUT |
| 11 |  |
SPRING WASHER |
| 12 |  |
SCREW |
| 13 |  |
CARBON BRUSH |
| 14 |  |
BRUSH HOLDER (Incl. 12 - 13) |
| 15 |  |
AIR CONDUCTOR |
| 16 |  |
STATOR ASSY (110V) |
| 16 |  |
STATOR ASSY (230V) |
| 17 |  |
SCREW |
