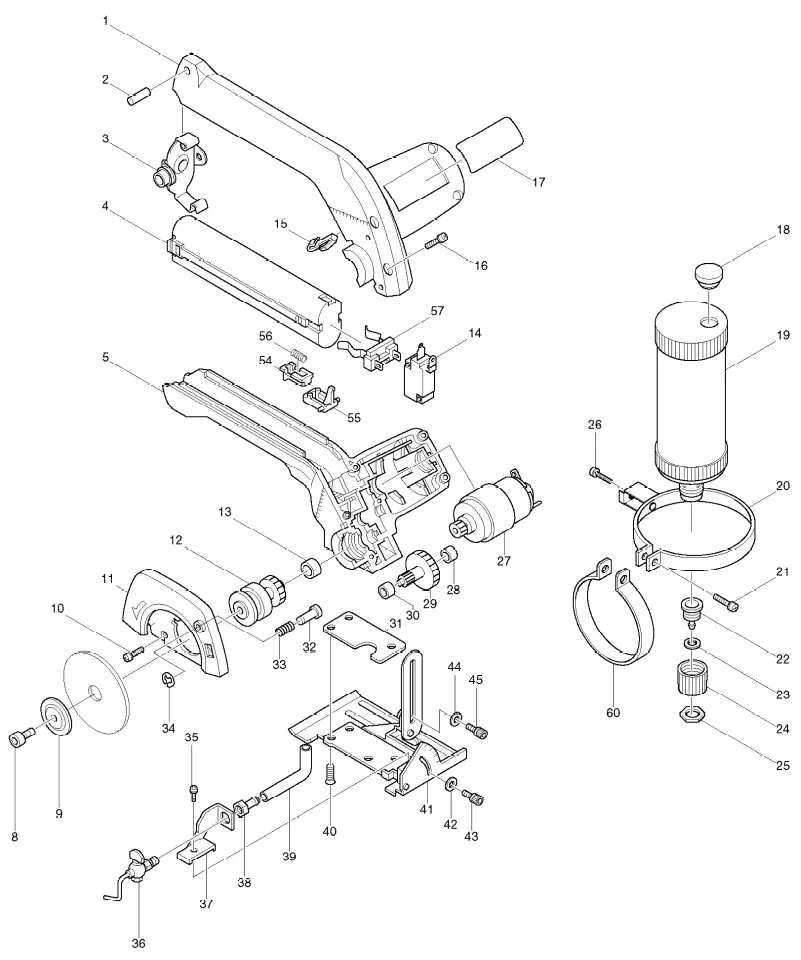

4190 D Деталировка
4190 D Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
HOUSING SET INC. 2,3,5 |
| 2 |  |
PIN 4 |
| 3 |  |
SET PLATE |
| 4 |  |
BATTERY 9000 SET |
| 5 |  |
HOUSING SET INC. 1,2,3 |
| 8 |  |
HEX. SOCKET HEAD BOLT M5X12 |
| 9 |  |
OUTER FLANGE 28 |
| 10 |  |
PAN HEAD SCREW M4X14 |
| 11 |  |
BLADE CASE |
| 12 |  |
GEAR COMPLETE |
| 13 |  |
PLANE BEARING 5 |
| 14 |  |
SWITCH DMC-1115-13 |
| 15 |  |
LEAF SPRING |
| 16 |  |
PAN HEAD SCREW M4X25 |
| 17 |  |
NAME PLATE 4190D |
| 18 |  |
CAP |
| 19 |  |
TANK ASS\\\\\'Y INC. 18,20,21,26,60 |
| 20 |  |
TANK HOLDER |
| 21 |  |
PAN HEAD SCREW M4X25 |
| 22 |  |
METALLIC CAP |
| 23 |  |
RUBBER WASHER 12 |
| 24 |  |
CAP |
| 25 |  |
HEX. NUT M12-14 |
| 26 |  |
PAN HEAD SCREW M4X25 |
| 27 |  |
DC MOTOR 9.6V |
| 28 |  |
PLANE BEARING 4 |
| 29 |  |
GEAR COMPLETE 11-67 |
| 30 |  |
PLANE BEARING 4 |
| 31 |  |
PACKING |
| 32 |  |
PIN 5 |
| 33 |  |
COMPRESSION SPRING 6 |
| 34 |  |
STOP RING E-4 |
| 35 |  |
PAN HEAD SCREW M4X6 |
| 36 |  |
COCK |
| 37 |  |
COCK HOLDER |
| 38 |  |
NUT |
| 39 |  |
VINYL TUBE 5 |
| 40 |  |
COUNTERSUNK HEAD SCREW M5X16 |
| 41 |  |
BASE |
| 42 |  |
FLAT WASHER 5 |
| 43 |  |
HEX. SOCKET HEAD BOLT M5X10 |
| 44 |  |
FLAT WASHER 5 |
| 45 |  |
HEX. SOCKET HEAD BOLT M5X10 |
| 54 |  |
LOCK-OFF LEVER |
| 55 |  |
SWITCH LEVER |
| 56 |  |
COMPRESSION SPRING 3 |
| 57 |  |
BATTERY HOLDER |
| 60 |  |
BAND B |
| 400 | HEX. WRENCH 4 | |
| 401 | DIAMOND WHEEL 80 | |
| 402 | BATTERY COVER |
