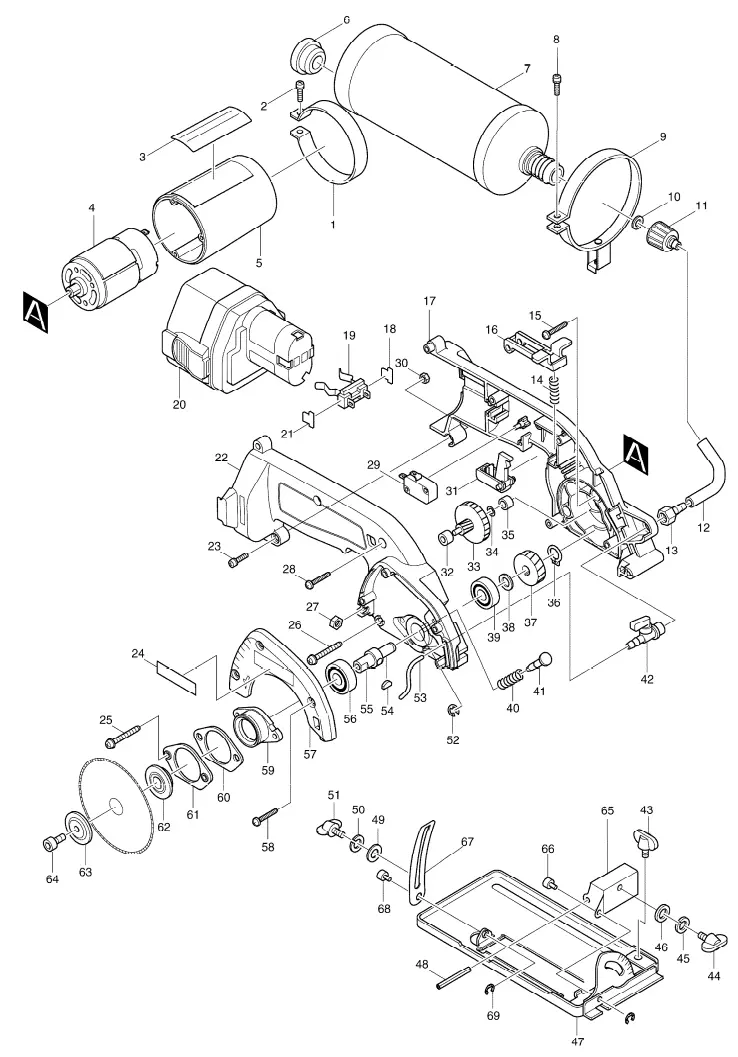

4191 D Деталировка
4191 D Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | BAND B | |
| 2 | PAN HEAD SCREW M4X25 | |
| 3 | NAME PLATE 4191D | |
| 4 | DC MOTOR 12V | |
| 5 | MOTOR HOUSING | |
| 6 | CAP | |
| 7 | TANK | |
| 8 | PAN HEAD SCREW M4X25 | |
| 9 | TANK HOLDER | |
| 10 | RUBBER WASHER 12 | |
| 11 |  |
CAP |
| 12 |  |
VINYL TUBE 5 |
| 13 |  |
NUT |
| 14 |  |
COMPRESSION SPRING 4 |
| 15 |  |
TAPPING SCREW 4X18 |
| 16 |  |
LOCK OFF LEVER |
| 17 |  |
HOUSING SET INC. 22 |
| 18 |  |
RUBBER SHEET |
| 19 |  |
BATTERY HOLDER |
| 20 |  |
BATTERY 1222 SET |
| 21 |  |
RUBBER SHEET |
| 22 |  |
HOUSING SET INC. 17 |
| 23 |  |
PAN HEAD SCREW M4X25 |
| 24 |  |
MAKITA LABEL |
| 25 |  |
TAPPING SCREW 4X30 |
| 26 |  |
TAPPING SCREW 4X30 |
| 27 |  |
HEX. NUT M5 |
| 28 |  |
TAPPING SCREW 4X18 |
| 29 |  |
SWITCH V-15-3A6 |
| 30 |  |
HEX. NUT M4 |
| 31 |  |
SWITCH LEVER |
| 32 |  |
PLANE BEARING 4 |
| 33 |  |
GEAR COMPLETE 8-68 |
| 34 |  |
THIN WASHER 4 |
| 35 |  |
PLANE BEARING 4 |
| 36 |  |
RETAINING RING S-8 |
| 37 |  |
HELICAL GEAR 33 |
| 38 |  |
FLAT WASHER 8 |
| 39 |  |
BALL BEARING 608LB |
| 40 |  |
COMPRESSION SPRING 7 |
| 41 |  |
PIN 5 |
| 42 |  |
WATER SUPPLY COCK COMPLETE |
| 43 |  |
THUMB SCREW M5X10 |
| 44 |  |
THUMB SCREW M5X10 |
| 45 |  |
SPRING WASHER 5 |
| 46 |  |
FLAT WASHER 5 |
| 47 |  |
BASE |
| 48 |  |
SPRING PIN 4-40 |
| 49 |  |
FLAT WASHER 5 |
| 50 |  |
SPRING WASHER 5 |
| 51 |  |
THUMB SCREW M5X10 |
| 52 |  |
STOP RING E-4 |
| 53 |  |
NOZZLE |
| 54 |  |
WOODRUFF KEY 3 |
| 55 |  |
SPINDLE |
| 56 |  |
BALL BEARING 6000LLB |
| 57 |  |
BLADE CASE |
| 58 |  |
TAPPING SCREW 4X18 |
| 59 |  |
BEARING BOX |
| 60 |  |
PACKING |
| 61 |  |
RETAINER |
| 62 | INNER FLANGE 28 | |
| 63 | OUTER FLANGE 28 | |
| 64 | HEX. SOCKET HEAD BOLT M5X12 | |
| 65 | ANGULAR GUIDE | |
| 66 | PIN 5 | |
| 67 | DEPTH GUIDE | |
| 68 | PIN 4 | |
| 69 | STOP RING E-3 | |
| 70 | O RING 7 | |
| A01 | SET PLATE | |
| A02 | BATTERY COVER | |
| A03 | HEX. WRENCH 4 | |
| A04 | DIAMOND WHEEL 80 | |
| B02 | BASE ASS\\\\\'Y INC. 47,65-69 |
