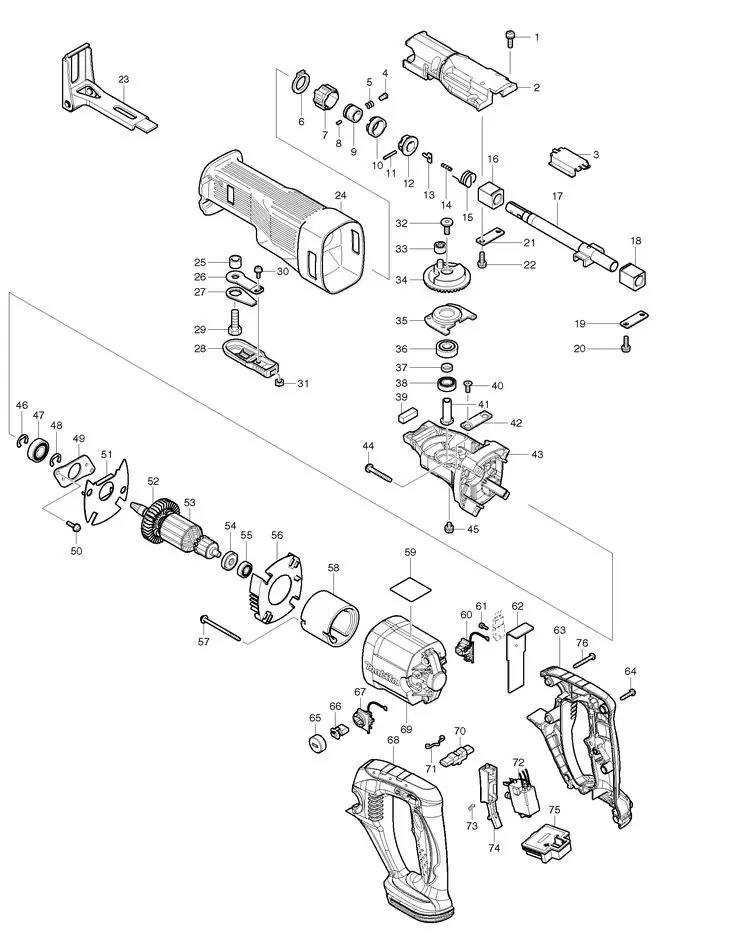

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | PAN HEAD SCREW M5X18 | |
| 2 | GEAR HOUSING COVER COMPLETE | |
| 3 | SLIDE PLATE | |
| 4 | SHOULDER PIN 5 | |
| 5 | COMPRESSION SPRING 6 | |
| 6 | RETAINING RING (EXT) S-18 | |
| 7 | DRIVING SLEEVE | |
| 8 | PIN 3 | |
| 9 | GUIDE SLEEVE | |
| 10 | DRIVING SLEEVE GUIDE | |
| 11 | PIN 3 | |
| 12 | SLEEVE | |
| 13 | PUSH PLATE | |
| 14 | COMPRESSION SPRING 2 | |
| 15 | TORSION SPRING 17 | |
| 16 | PLANE BEARING 14 | |
| 17 | SLIDER | |
| 18 | PLANE BEARING 14 | |
| 19 | PLATE | |
| 20 | PAN HEAD SCREW M5X16 | |
| 21 | PLATE | |
| 22 | PAN HEAD SCREW M5X16 | |
| 23 | SHOE | |
| 24 | INSULATION COVER | |
| 25 | SLEEVE 9 | |
| 26 | INNER PLATE | |
| 27 | LOCK PLATE | |
| 28 | LEVER 60 | |
| 29 | HEX. BOLT M8X25 | |
| 30 | PAN HEAD SCREW M4X10 | |
| 31 | HEX. NUT M4 | |
| 32 | TORX SOCKET HEAD BOLT M6X15 | |
| 33 | NEEDLE BEARING 708 | |
| 34 | GEAR COMPLETE | |
| 35 | BEARING RETAINER A | |
| 36 | BALL BEARING 6000LLB | |
| 37 | RING 10 | |
| 38 | BALL BEARING 6900LLB | |
| 39 | FELT 8X24 | |
| 40 | HEX. SOCKET HEAD BOLT M5X12 | |
| 41 | GEAR SHAFT | |
| 42 | PLATE C | |
| 43 | GEAR HOUSING | |
| 44 | TAPPING SCREW 5X35 | |
| 45 | PAN HEAD SCREW M5X8 | |
| 46 | STOP RING E-10 | |
| 47 | BALL BEARING 6001DDW | |
| 48 | STOP RING E-10 | |
| 49 | BEARING RETAINER B | |
| 50 | PAN HEAD SCREW M4X12 | |
| 51 | FAN GUIDE | |
| 53 | ARMATURE ASS\\\'Y 14.4V | |
| 54 | INSULATION WASHER | |
| 55 | BALL BEARING 607DDW | |
| 56 | BAFFLE PLATE | |
| 57 | TAPPING SCREW 4X60 | |
| 58 | YOKE UNIT | |
| 59 | BJR141 NAME PLATE | |
| 60 | BRUSH HOLDER | |
| 61 | PAN HEAD SCREW M3X8 | |
| 62 | HEAT SINK | |
| 63 | HANDLE SET | |
| 64 | TAPPING SCREW 4X18 | |
| 65 | BRUSH HOLDER CAP | |
| 66 | CARBON BRUSH CB-432 | |
| 67 | BRUSH HOLDER R | |
| 68 | HANDLE SET | |
| 69 | MOTOR HOUSING | |
| 70 | LOCK OFF BUTTON | |
| 71 | LEAF SPRING | |
| 72 | SWITCH C3LA-1A-PSR | |
| 73 | COMPRESSION SPRING 4 | |
| 74 | SWITCH LEVER | |
| 75 | TERMINAL | |
| 76 | TAPPING SCREW 4X30 |
