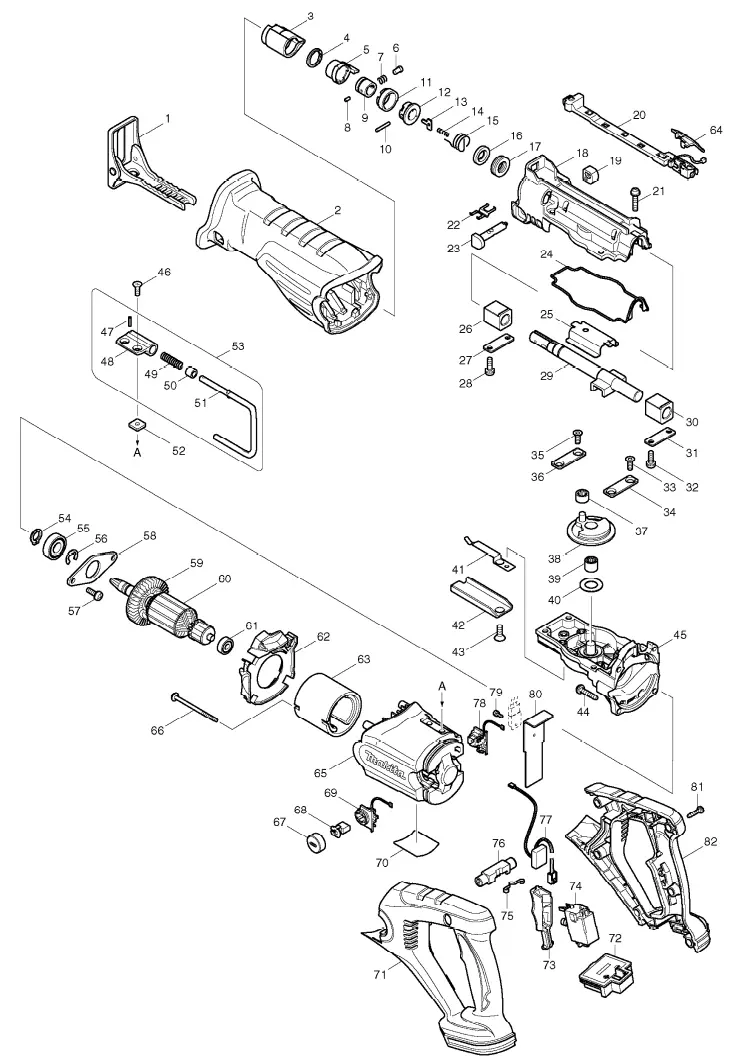

BJR 181 Деталировка
BJR 181 Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
SHOE |
| 2 |  |
INSULATION COVER |
| 3 |  |
PROTECTOR |
| 4 |  |
RETAINING RING (EXT) 18 |
| 5 |  |
DRIVING SLEEVE |
| 6 |  |
SHOULDER PIN 5 |
| 7 |  |
COMPRESSION SPRING 6 |
| 8 |  |
PIN 3 |
| 9 |  |
GUIDE SLEEVE |
| 10 |  |
PIN 3 |
| 11 |  |
DRIVING SLEEVE GUIDE |
| 12 |  |
SLEEVE |
| 13 |  |
PUSH PLATE |
| 14 |  |
COMPRESSION SPRING 2 |
| 15 |  |
TORSION SPRING 17 |
| 16 |  |
OIL SEAL 14 |
| 17 |  |
X RING 14 |
| 18 |  |
GEAR HOUSING COVER COMPLETE INC. 16, 17 |
| 19 |  |
CAP |
| 20 |  |
LED CIRCUIT |
| 21 |  |
PAN HEAD SCREW M5X25 |
| 22 |  |
LEAF SPRING A |
| 23 |  |
SHIFT BUTTON |
| 24 |  |
SEAL RING |
| 25 |  |
SLIDE PLATE |
| 26 |  |
PLANE BEARING 14A |
| 27 |  |
PLATE |
| 28 |  |
PAN HEAD SCREW M5X16 |
| 29 |  |
SLIDER COMPLETE |
| 30 |  |
PLANE BEARING 14A |
| 31 |  |
PLATE |
| 32 |  |
PAN HEAD SCREW M5X16 |
| 33 |  |
TORX SOCKET HEAD SCREW M5X14 |
| 34 |  |
PLATE C |
| 35 |  |
TORX SOCKET HEAD SCREW M5X14 |
| 36 |  |
PLATE C |
| 37 |  |
NEEDLE BEARING 708 |
| 38 |  |
GEAR ASS\\\\\'Y INC. 39 |
| 39 |  |
NEEDLE BEARING 1012 |
| 40 |  |
FLAT WASHER 14 |
| 41 |  |
LEAF SPRING B |
| 42 |  |
SHOE GUIDE |
| 43 |  |
TORXSOCKET C.S.HEADSCREW M6X16 |
| 44 |  |
TAPPING SCREW 5X25 |
| 45 |  |
GEAR HOUSING COMPLETE |
| 46 |  |
COUNTERSUNK HEAD SCREW M5X10 |
| 47 |  |
SPRING PIN 3-12 |
| 48 |  |
JOINT |
| 49 |  |
COMPRESSION SPRING 7 |
| 50 |  |
SLEEVE 6 |
| 51 |  |
HOOK |
| 52 |  |
SQUARE NUT M5 |
| 53 |  |
HOOK ASS\\\\\'Y INC. 47-51 |
| 54 |  |
RETAINING RING S-12 |
| 55 |  |
BALL BEARING 6001DDW |
| 56 |  |
STOP RING E-10 |
| 57 |  |
PAN HEAD SCREW M5X16 |
| 58 |  |
BEARING RETAINER 63 |
| 59 |  |
FAN 55 |
| 60 |  |
ARMATURE ASS\\\\\'Y 18V INC.59,61 |
| 61 |  |
BALL BEARING 607ZZ |
| 62 |  |
BAFFLE PLATE |
| 63 |  |
YOKE UNIT |
| 64 |  |
COVER |
| 65 |  |
MOTOR HOUSING |
| 66 |  |
TAPPING SCREW 4X65 |
| 67 |  |
BRUSH HOLDER CAP |
| 68 |  |
CARBON BRUSH CB-441 |
| 69 |  |
BRUSH HOLDER R |
| 70 |  |
BJR181 NAME PLATE |
| 71 |  |
HANDLE SET INC. 82 |
| 72 |  |
TERMINAL |
| 73 |  |
SWITCH LEVER |
| 74 |  |
SWITCH C3LA-2A-LLM |
| 75 |  |
LEAF SPRING |
| 76 |  |
LOCK OFF BUTTON |
| 77 |  |
POWER SUPPLY CIRCUIT |
| 78 |  |
BRUSH HOLDER |
| 79 |  |
PAN HEAD SCREW M3X8 |
| 80 |  |
HEAT SINK |
| 81 |  |
TAPPING SCREW 4X20 |
| 82 |  |
HANDLE SET INC. 71 |
| A01 |  |
DC18RA FAST CHARGER |
| A02 |  |
BATTERY BL1830 SET |
| A04 |  |
PLASTIC CARRYING CASE |
| A05 |  |
RECIPROSAWBLADE GOT METAL |
| A06 | RECIPROSAWBLADE FOR WOOD | |
| A07 | BATTERY COVER |
