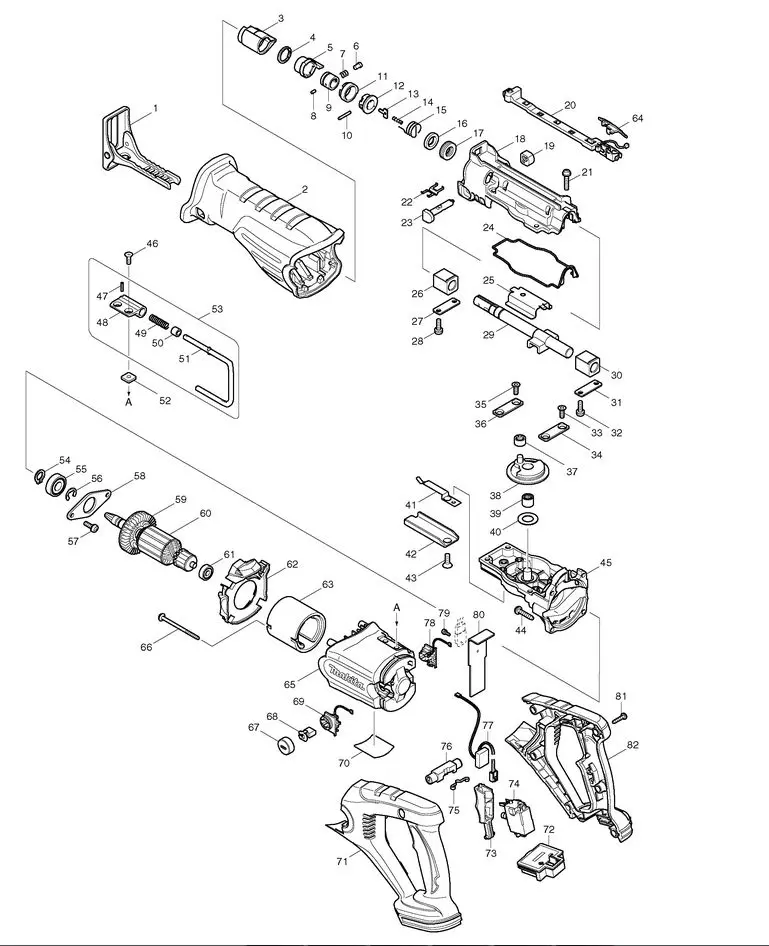

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | SHOE | |
| 2 | INSULATION COVER | |
| 3 | PROTECTOR | |
| 4 | RETAINING RING (EXT) 18 | |
| 5 | DRIVING SLEEVE | |
| 6 | SHOULDER PIN 5 | |
| 7 | COMPRESSION SPRING 6 | |
| 8 | PIN 3 | |
| 9 | GUIDE SLEEVE | |
| 10 | PIN 3 | |
| 11 | DRIVING SLEEVE GUIDE | |
| 12 | SLEEVE | |
| 13 | PUSH PLATE | |
| 14 | COMPRESSION SPRING 2 | |
| 15 | TORSION SPRING 17 | |
| 16 | OIL SEAL 14 | |
| 17 | X RING 14 | |
| 18 | GEAR HOUSING COVER COMPLETE INC. 16, 17 | |
| 19 | CAP | |
| 20 | LED CIRCUIT | |
| 21 | PAN HEAD SCREW M5X25 | |
| 22 | LEAF SPRING A | |
| 23 | SHIFT BUTTON | |
| 24 | SEAL RING | |
| 25 | SLIDE PLATE | |
| 26 | PLANE BEARING 14A | |
| 27 | PLATE | |
| 28 | PAN HEAD SCREW M5X16 | |
| 29 | SLIDER COMPLETE | |
| 30 | PLANE BEARING 14A | |
| 31 | PLATE | |
| 32 | PAN HEAD SCREW M5X16 | |
| 33 | TORX SOCKET HEAD SCREW M5X14 | |
| 34 | PLATE C | |
| 35 | TORX SOCKET HEAD SCREW M5X14 | |
| 36 | PLATE C | |
| 37 | NEEDLE BEARING 708 | |
| 38 | GEAR ASS\\\\\'Y INC. 39 | |
| 39 | NEEDLE BEARING 1012 | |
| 40 | FLAT WASHER 14 | |
| 41 | LEAF SPRING B | |
| 42 | SHOE GUIDE | |
| 43 | TORXSOCKET C.S.HEADSCREW M6X16 | |
| 44 | TAPPING SCREW 5X25 | |
| 45 | GEAR HOUSING COMPLETE | |
| 46 | COUNTERSUNK HEAD SCREW M5X10 | |
| 47 |  |
SPRING PIN 3-12 |
| 48 |  |
JOINT |
| 49 |  |
COMPRESSION SPRING 7 |
| 50 |  |
SLEEVE 6 |
| 51 |  |
HOOK |
| 52 |  |
SQUARE NUT M5 |
| 53 |  |
HOOK ASS\\\\\'Y INC. 47-51 |
| 54 |  |
RETAINING RING S-12 |
| 55 |  |
BALL BEARING 6001DDW |
| 56 |  |
STOP RING E-10 |
| 57 |  |
PAN HEAD SCREW M5X16 |
| 58 |  |
BEARING RETAINER 63 |
| 59 |  |
FAN 55 |
| 60 |  |
ARMATURE ASS\\\\\'Y 18V INC.59,61 |
| 61 |  |
BALL BEARING 607ZZ |
| 62 |  |
BAFFLE PLATE |
| 63 |  |
YOKE UNIT |
| 64 |  |
COVER |
| 65 |  |
MOTOR HOUSING |
| 66 |  |
TAPPING SCREW 4X65 |
| 67 |  |
BRUSH HOLDER CAP |
| 68 |  |
CARBON BRUSH CB-441 |
| 69 |  |
BRUSH HOLDER R |
| 70 |  |
BJR181 NAME PLATE |
| 71 |  |
HANDLE SET INC. 82 |
| 72 |  |
TERMINAL |
| 73 |  |
SWITCH LEVER |
| 74 |  |
SWITCH C3LA-2A-LLM |
| 75 |  |
LEAF SPRING |
| 76 |  |
LOCK OFF BUTTON |
| 77 |  |
POWER SUPPLY CIRCUIT |
| 78 |  |
BRUSH HOLDER |
| 79 |  |
PAN HEAD SCREW M3X8 |
| 80 |  |
HEAT SINK |
| 81 |  |
TAPPING SCREW 4X20 |
| 82 |  |
HANDLE SET INC. 71 |
| A01 |  |
DC18RA FAST CHARGER |
| A02 |  |
BATTERY BL1830 SET |
| A04 |  |
PLASTIC CARRYING CASE |
| A05 |  |
RECIPROSAWBLADE GOT METAL |
| A06 |  |
RECIPROSAWBLADE FOR WOOD |
| A07 |  |
BATTERY COVER |
