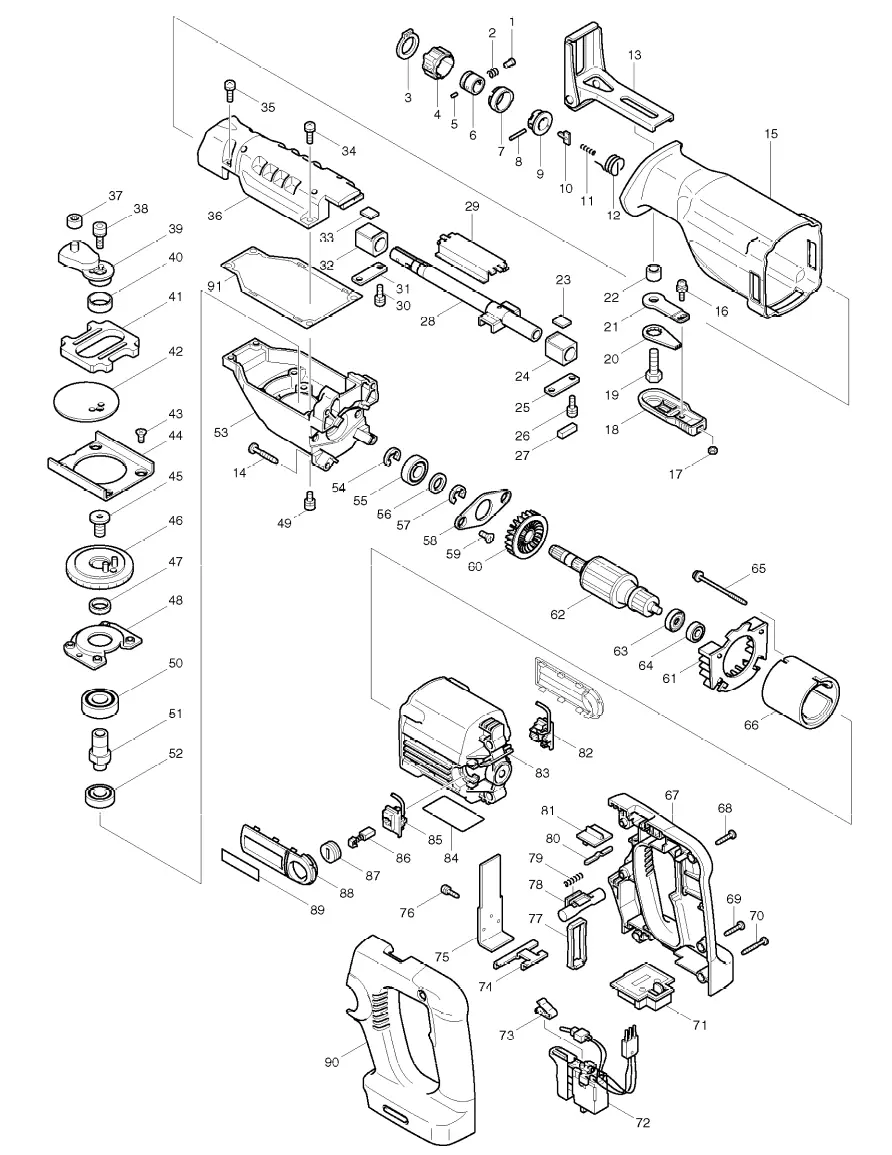

BJR 240 Деталировка
BJR 240 Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | SHOULDER PIN 5 | |
| 2 | COMPRESSION SPRING 6 | |
| 3 | RETAINING RING (EXT) S-18 | |
| 4 | DRIVING SLEEVE | |
| 5 | PIN 3 | |
| 6 | GUIDE SLEEVE | |
| 7 | DRIVING SLEEVE GUIDE | |
| 8 | PIN 3 | |
| 9 | SLEEVE | |
| 10 | PUSH PLATE | |
| 11 | COMPRESSION SPRING 2 | |
| 12 | TORSION SPRING 17 | |
| 13 | SHOE | |
| 14 | TAPPING SCREW 5X30 | |
| 15 | INSULATION COVER | |
| 16 | PAN HEAD SCREW M4X10 | |
| 17 | HEX. NUT M4 | |
| 18 | LEVER 60 | |
| 19 | HEX. BOLT M8X25 | |
| 20 | LOCK PLATE | |
| 21 | INNER PLATE | |
| 22 | SLEEVE 9 | |
| 23 | PLATE 12X16 | |
| 24 | PLANE BEARING 14 | |
| 25 | PLATE | |
| 26 | PAN HEAD SCREW M5X16 | |
| 27 | FELT 6X20 | |
| 28 | SLIDER | |
| 29 | SLIDE PLATE | |
| 30 | PAN HEAD SCREW M5X16 | |
| 31 | PLATE | |
| 32 | PLANE BEARING 14 | |
| 33 | PLATE 12X16 | |
| 34 | PAN HEAD SCREW M5X18 | |
| 35 | PAN HEAD SCREW M5X18 | |
| 36 | GEAR HOUSING COVER COMPLETE | |
| 37 | NEEDLE BEARING 708 | |
| 38 | HEX. SOCKET HEAD BOLT M6X18 | |
| 39 | CRANK SHAFT COMPLETE | |
| 40 | RING 21 | |
| 41 | COUNTER WEIGHT | |
| 42 | PLATE | |
| 43 | + COUNTERSUNK HEAD SCREW M5X12 | |
| 44 | GUIDE PLATE | |
| 45 | HEX. SOCKET HEAD BOLT M10X18 | |
| 46 | GEAR COMPLETE | |
| 47 | RING 15 | |
| 48 | BEARING RETAINER 58 | |
| 49 | HEX.SOCKET HEAD BOLT M5X10 | |
| 50 | BALL BEARING 6202LLB | |
| 51 | GEAR SHAFT | |
| 52 | BALL BEARING 6001LLB | |
| 53 | GEAR HOUSING | |
| 54 | STOP RING E-10 | |
| 55 | BALL BEARING 6001DDW | |
| 56 | FLAT WASHER 12 | |
| 57 | STOP RING E-10 | |
| 58 | BEARING RETAINER 58 | |
| 59 | + COUNTERSUNK HEAD SCREW M5X12 | |
| 60 | FAN 46 | |
| 61 | BAFFLE PLATE | |
| 62 | ARMATURE ASS\\\\\'Y 24V INC. 57,60,63,64 | |
| 63 | INSULATION WASHER | |
| 64 | BALL BEARING 607DDW | |
| 65 | TAPPING SCREW 4X65 | |
| 66 | YOKE UNIT | |
| 67 | HANDLE SET INC. 90 | |
| 68 | TAPPING SCREW 4X20 | |
| 69 | TAPPING SCREW 4X20 | |
| 70 | TAPPING SCREW 4X30 | |
| 71 | TERMINAL | |
| 72 | SWITCH C3LA-2A-L2SM | |
| 73 | LEAF SPRING | |
| 74 | SUPPORT PLATE | |
| 75 | HEAT SINK | |
| 76 | PAN HEAD SCREW M3X8 | |
| 77 | STOPPER | |
| 78 | LOCK OFF BUTTON | |
| 79 | COMPRESSION SPRING 4 | |
| 80 | LEAF SPRING | |
| 81 | SPEED CHANGE LEVER | |
| 82 | BRUSH HOLDER | |
| 83 | MOTOR HOUSING | |
| 84 | NAME PLATE BJR240 | |
| 85 | BRUSH HOLDER R | |
| 86 | CARBON BRUSH CB-441 | |
| 87 | BRUSH HOLDER CAP | |
| 88 | BUMPER | |
| 89 | MAKITA LABEL | |
| 90 | HANDLE SET INC. 67 | |
| 91 | GASKET | |
| A01 | RECIPRO SAW BLADE SET | |
| A02 | BATTERY BH2420 SET | |
| A03 | PLASTIC CARRYING CASE COMPLETE | |
| A04 | DC24WA BATTERY CHARGER |
